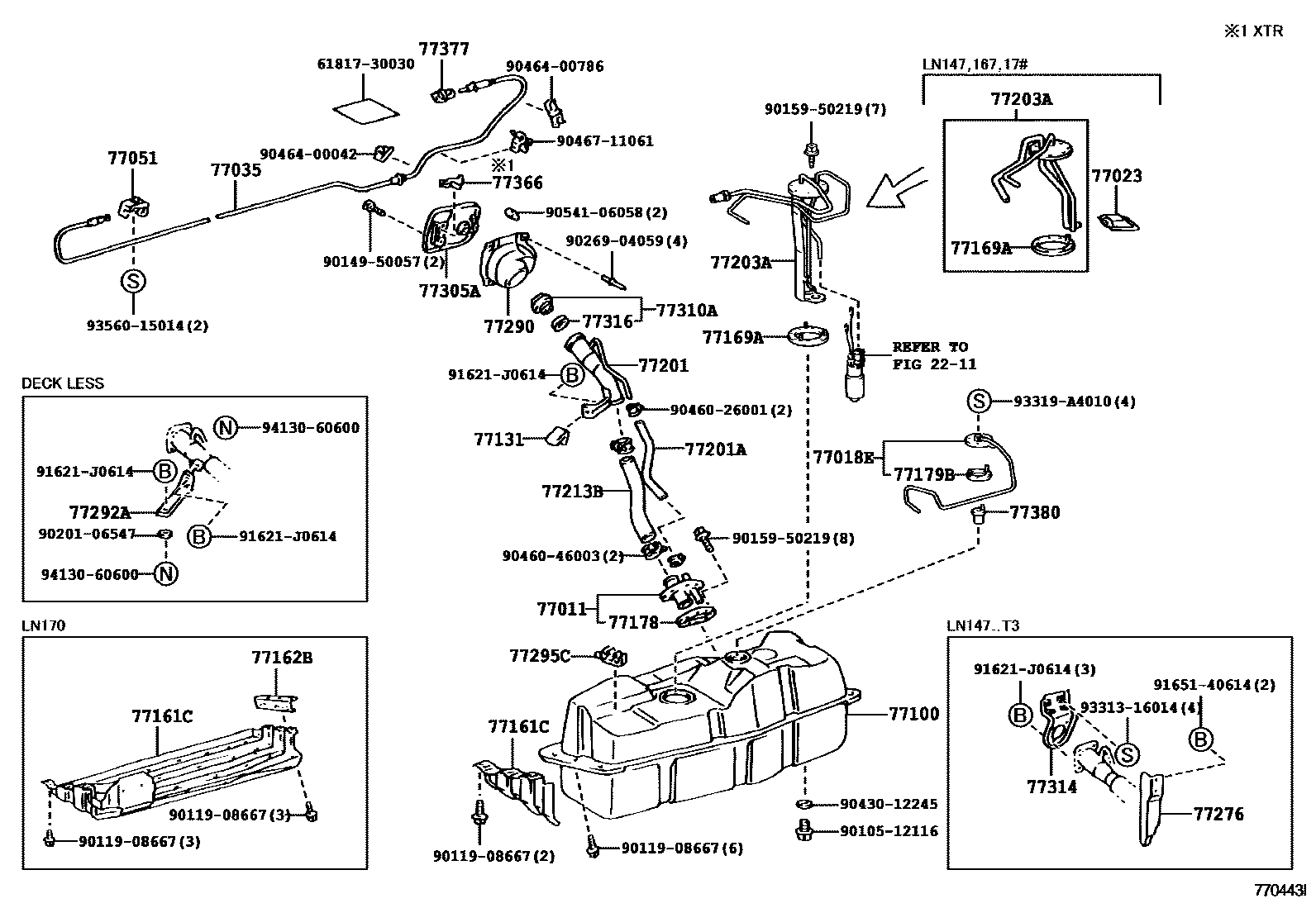

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-04020iRZN147,152,169,174200108-200202

main77011-35210iLN147,167,172,RZN147,152,169,174199708-200108

main77011-35220iLN165,170,RZN167199708-199908

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-35060iLN147,167,172,RZN147,152,174..T1,T3199708-200108

main77018-35070iLN170199708-199908

main77018-35080iLN147,167,RZN169..TW1200108-200202

main77018-35090iLN147,167,RZN147,169..TW1199708-200108

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32040iLN147,16#,17#199708-200108

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-35100iLN147,16#,RZN147,16#..TW1199708-200108

main77050-35111iRZN152,174200108-200308

main77050-35181iRZN152,174200108-200308

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-35010iLN147,16#,17#,RZN147,152,16#,174..DCB,XTR199708-200108

77100TANK ASSY, FUEL

main77001-3D907iRZN147,152200108-200308

main77001-3D908iLN147..SCB200108-200407

main77001-3D910iRZN174199908-200108

main77001-3D911iLN167,172..T1199708-200108

main77001-3D912iRZN167199708-199908

main77001-3D914iLN165199708-199908

main77001-3D920iRZN174199908-200108

77131BRACKET, FUEL TANK FILLER PIPE SUPPORT

main77131-35060iLN147,167,17#,RZN147,152,174..T1..CBU199708-200108

77161CPROTECTOR, FUEL TANK, LOWER

main77161-04010iLN147,RZN147,152..T1,T3199903-200108

main77161-04020iLN167;LN147,RZN147..TW1199903-200108

main77161-35160iLN147,RZN147,152..T1,T3199708-200108

main77161-35180iLN167;LN147,RZN147..TW1199708-200108

main77161-35200iRZN169199908-200108

main77606-35030iLN172,RZN174200108-200403

77162BBRACKET, FUEL TANK REAR PROTECTOR

main77162-35020iRZN169,174199708-200108

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iLN147,167,172,RZN147,152,169,174200108-200407

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-04010iRZN147,152,169,174200108-200202

main77178-34010iLN147,167,172; LN147,167,172,RZN147,152,169,174199708-200108

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-26010iLN147,167,172,RZN147,152,169,174199708-200108

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-35540iLN147,167,RZN147..T1..CBU199708-200108

main77201-35560iLN165,RZN167199708-199908

main77201-35600iLN147,167,RZN147..T1..CBU200108-200407

main77201-35610iLN147,167,RZN169..TW1200108-200202

main77201-35640iLN147..T3200108-200407

main77201-35660iLN172,RZN152,174200108-200407

main77201-35750iLN147,RZN147..IV3200108-200202

main77201-35760iLN147,RZN147..IV3199708-200108

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77269-35010iLN147..T3;LN147,RZN147..IV3200108-200407

main77269-35020iLN172,RZN152,174199711-200108

main95313-13022iLN147,167,RZN147..T1199708-200108

main95313-13026iLN147,167,RZN169..TW1200108-200407

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-35520iRZN174200108-200308

main77203-35530iRZN147,169..Q199708-199911

main77203-35531iRZN169200108-200308

main77203-35540iRZN147,152..T1,T3199708-200108

main77203-35580iLN147..SCB200108-200202

main77203-35600iLN167,172..T1200108-200202

main77203-35610iLN147..SCB200108-200407

main77203-35620iLN170199708-199908

main77203-35640iLN165199708-199908

main77203-35650iLN165199708-199908

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-35310iLN147,167,RZN147..T1199708-200108

main77213-35320iLN147,167,RZN169..TW1200108-200407

main77213-35330iLN170199711-199908

main77213-35350iLN147..T3;LN147,RZN147..IV3200108-200407

77276PROTECTOR, FUEL HOSE

main77276-89106iLN147,RZN147..T3199708-200108

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-35040iLN172200108-200407

main77290-35050iLN147,167,RZN147..T1..CBU199708-200108

77292ASTAY, FUEL TANK FILLAR UPPER PIPE

main77292-35200iLN147,RZN147..IV3199708-200108

77295CGROMMET, FUEL TUBE

main77295-35140iLN147,167,172,RZN147,152,169,174199708-200108

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-35010iLN147,16#,RZN147,16#..TW1199708-200108

main77305-35051iLN17#,RZN152,174199711-200108

main77305-35061iLN147,167,RZN147..T1..CBU199708-200108

77310ACAP ASSY, FUEL TANK

main77310-12150iLN147,16#,17#..(T1,TW1)..CBU199803-200108

main77310-35070iRZN147,167..(T1,TW1)..CBU199708-199803

main77310-35110iLN147,16#,17#..(T1,TW1)..CBU199708-199803

main77310-48010iRZN147,152,169,174..CBU200108-200308

77314RETAINER, FUEL TANK CAP

main77314-89101iLN147..T3200108-200407

77316GASKET, FUEL TANK CAP

main77316-16010iLN165,170,RZN167199803-199908

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-35030iLN17#,RZN152,174199711-200108

main77360-35050iLN147,167,RZN169..TW1200108-200407

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iLN17#,RZN152,174199711-200108

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iLN165,170,RZN167199708-199908

6181730030PANEL,QUARTER INSIDE REAR CORNER, LH

main61817-30030

9010512116

main90105-12116

9011908667

main90119-08667

9014950057

main90149-50057

9015950219

main90159-50219

9020106547

main90201-06547

9026904059

main90269-04059

9043012245

main90430-12245

9046026001

main90460-26001

9046046003

main90460-46003

9046400042

main90464-00042

9046400786

main90464-00786

9046711061

main90467-11061

9054106058

main90541-06058

91621J0614

main91621-J0614

9165140614

main91651-40614

9331316014

main93313-16014

93319A4010

main93319-A4010

9356015014

main93560-15014

9413060600

main94130-60600

48 parts on this diagram · 4 diagrams in section
