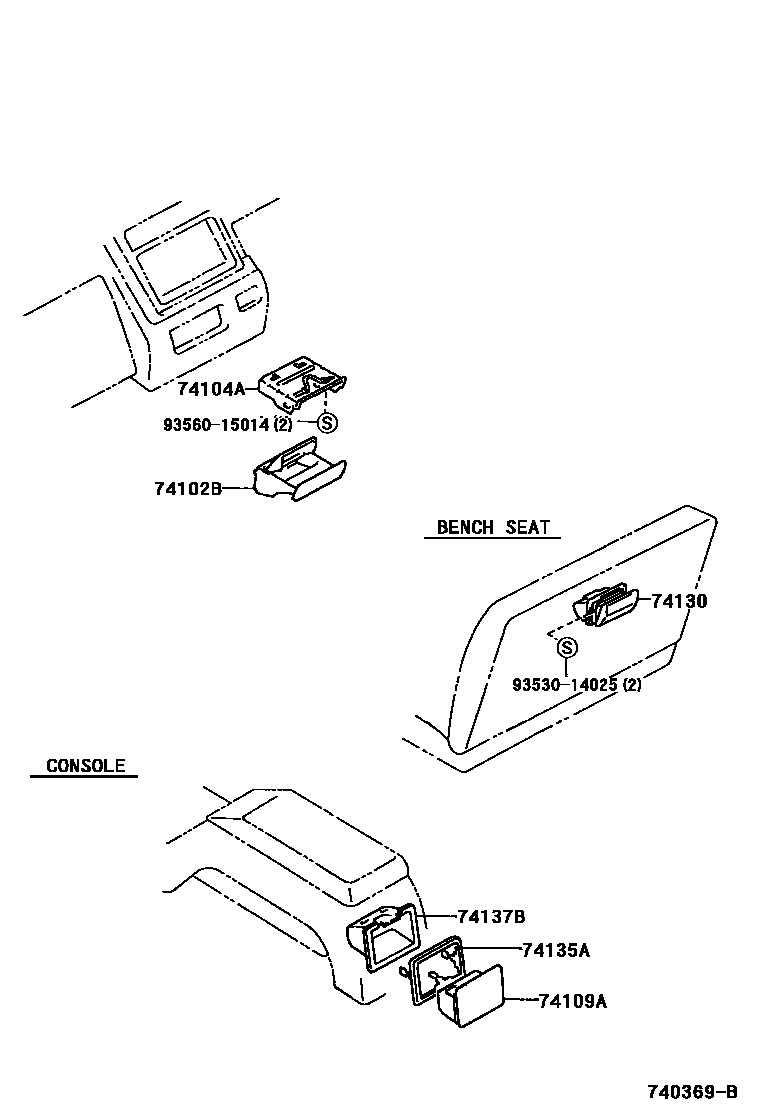

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-89108iLN147,16#,17#,RZN147,152,16#,174199708-200108

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-89108iLN147,16#,17#,RZN147,152,16#,174199708-200108

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-32010-B4iLN16#,RZN147,16#..Q199708-200108

MD.MOON MIST,TRIM1#

74130RECEPTACLE ASSY, REAR ASH

main74130-14020-B2iLN147,167..TW1..D199708-199908

MD.MOON MIST,TRIM1#

main74130-14020-C0iLN147,167..TW1..D199908-200108

BLACK,TRIM1#

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-12020iLN16#,RZN147,16#..Q199708-200108

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iLN16#,RZN147,16#..Q199708-200108

9353014025

main93530-14025

9356015014

main93560-15014

8 parts on this diagram · 1 diagram in section
