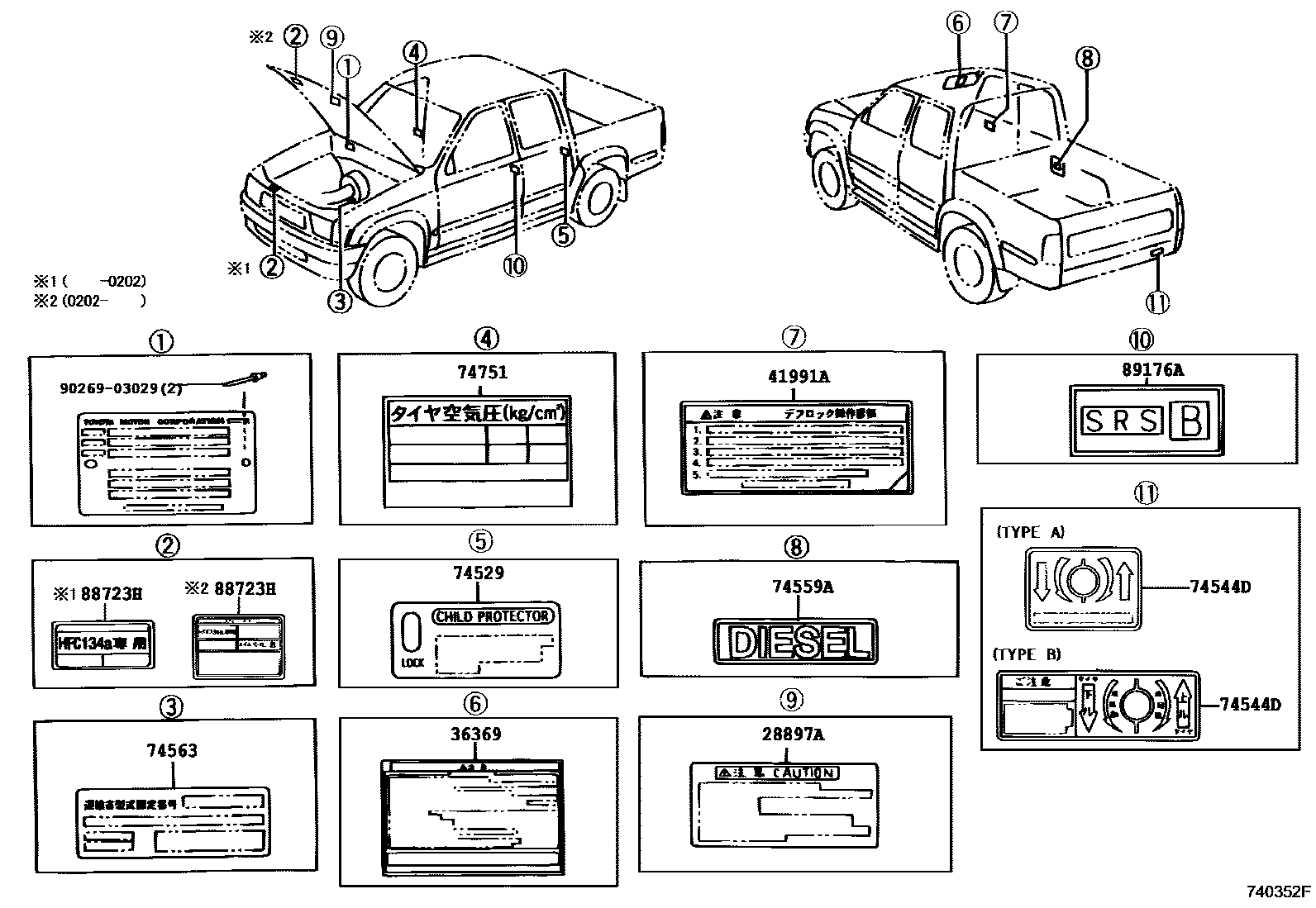

CAUTION PLATE

28897APLATE, BATTERY CAUTION

main28897-54030i2LTE,5L..LN147,16#,17#199708-200108

36369LABEL, TRANSFER INFORMATION

main36369-35460iLN16#,17#,RZN16#,174199708-200108

41991APLATE, CAUTION

main41991-35010iLN167,172,RZN167199708-200108

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010×2iLN147,16#,RZN147,16#..TW1199708-200108

74544DPLATE, TIRE CARRIER CAUTION

main74544-35060iLN147,RZN147..T3;LN147,RZN147..IV3199708-200007

main74544-35080iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200007

main74544-35090iLN147,RZN147..T3;LN147,RZN147..IV3200007-200108

main74544-35110iLN147,167,172,RZN147,152,169,174..(T1,TW1)..CBU200007-200108

74559APLATE, FUEL CAUTION

main74559-89101iLN147,16#,17#199708-200108

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-35130iLN165,170199708-199902

main74563-35160iRZN147,167199708-199902

main74563-35170iLN147,167,172199708-199902

74751LABEL, TIRE PRESSURE INFORMATION

main42661-35241iLN167..D199708-200003

main42661-35242iLN167..D200003-200108

main42661-35243iLN167200108-200407

main42661-35401iLN147..TW1199708-200003

main42661-35402iLN147..TW1200108-200407

main42661-35430iRZN147,152..Q199708-200003

main42661-35431iRZN147,152..Q200003-200108

main42661-35432iRZN152200108-200308

main42661-35440iLN16#,RZN167..NOB..Q199708-200003

main42661-35441iLN167..Q200003-200108

main42661-35450iLN165,17#,RZN169,174..WIB199708-200003

main42661-35451iLN172,RZN169,174200108-200407

main74552-35131iLN147,RZN147..SCB199708-200003

main74552-35132iLN147,RZN147..SCB200108-200407

88723HLABEL, COOLER SERVICE CAUTION

main88723-20030iLN165,170,RZN167199708-199908

main88733-22040iLN147,167,172,RZN147,152,169,174200202-200407

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-51010×2iLN147,167,172,RZN147,152,169,174199908-200108

9026903029

main90269-03029

11 parts on this diagram · 1 diagram in section
