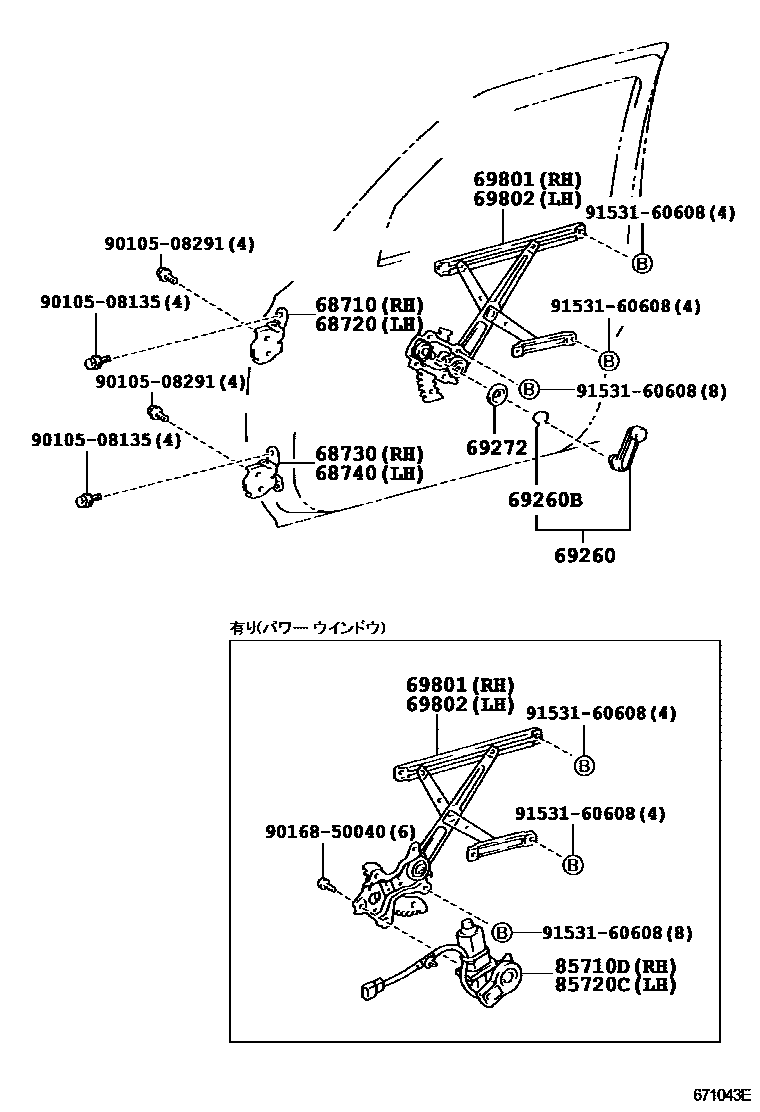

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-04010iLN147,16#,17#,RZN147,152,16#,174199708-200108

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-04010iLN147,16#,17#,RZN147,152,16#,174199708-200108

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-04010iLN147,16#,17#,RZN147,152,16#,174199708-200108

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-04010iLN147,16#,17#,RZN147,152,16#,174199708-200108

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B1×2iLN147,16#,RZN147,167199708-200108

MD.MOON MIST,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iLN147,16#,RZN147,167199708-200108

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iLN147,16#,RZN147,167199708-200108

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-35110iLN147,167,RZN147..D199708-200108

main69801-35160iRZN152,169,174200108-200308

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-35110iRZN147200108-200308

main69802-35140iRZN152,169,174200108-200308

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35140iLN16#,17#,RZN147,152,16#,174..Q199708-200108

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35090iLN16#,17#,RZN147,152,16#,174..Q199708-200108

9010508135

main90105-08135

9010508291

main90105-08291

9016850040

main90168-50040

9153160608

main91531-60608

15 parts on this diagram · 1 diagram in section
