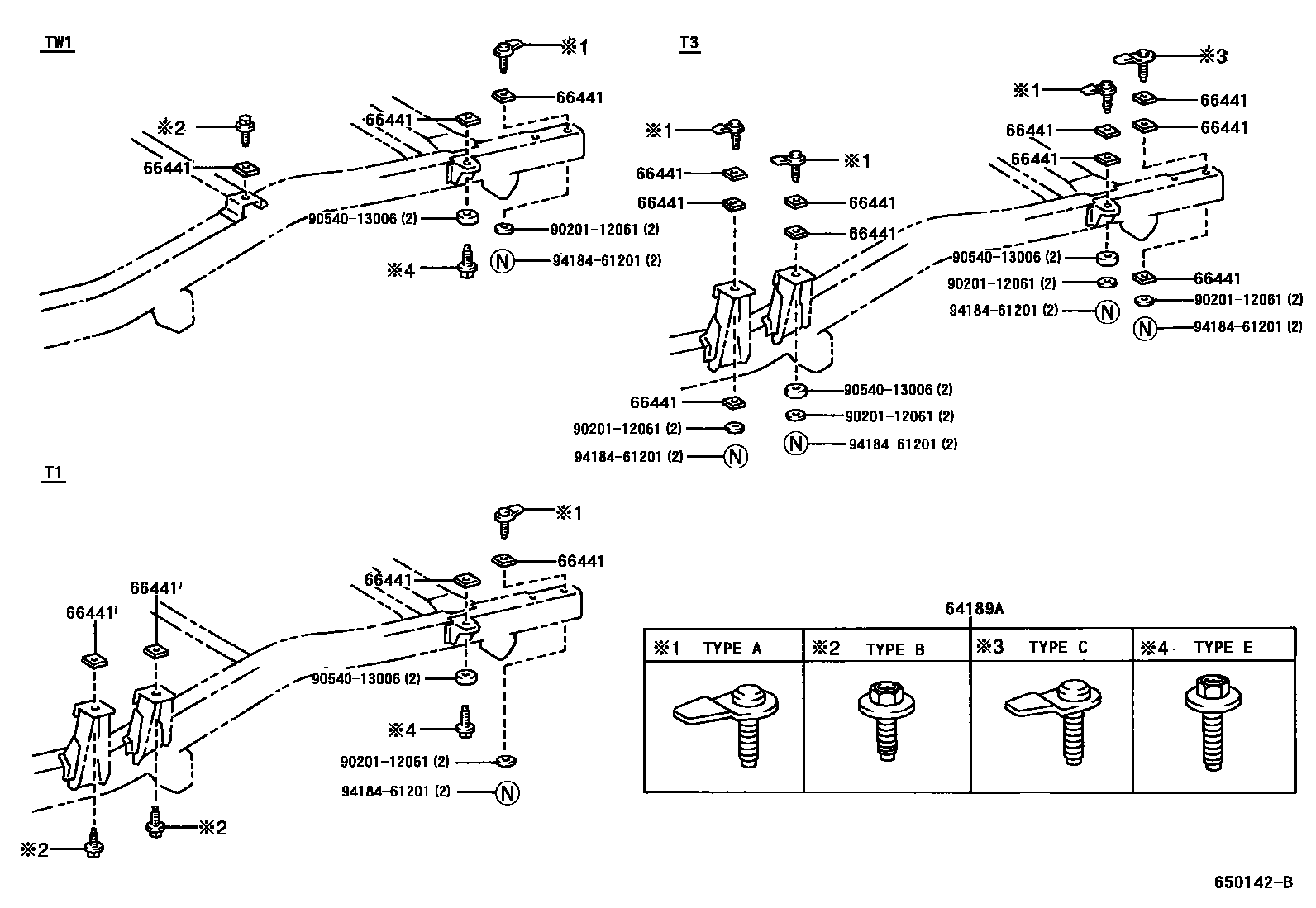

REAR BODY MOUNTING

64189ABOLT, REAR BODY MOUNTING

main64189-35010×2iLN147,16#,17#,RZN147,152,16#,174..T1,TW1; LN147,RZN147..T3199708-200108

main64189-35040×4iLN147,16#,17#,RZN147,152,16#,174..DCB,XTR; LN147,167,RZN147..T1199708-200108

main64189-35050×2iLN147,167,172,RZN147,152,169,174..T1,TW1200108-200407

main64189-89104×2iLN147,RZN147..T3199708-200108

66441SHIM, MOUNTING, NO.1

main90950-04028iLN147,RZN147..T3199708-200108

main90950-04030iLN147,16#,17#,RZN147,152,16#,174199708-200108

9020112061

main90201-12061

9054013006

main90540-13006

9418461201

main94184-61201

5 parts on this diagram · 1 diagram in section
