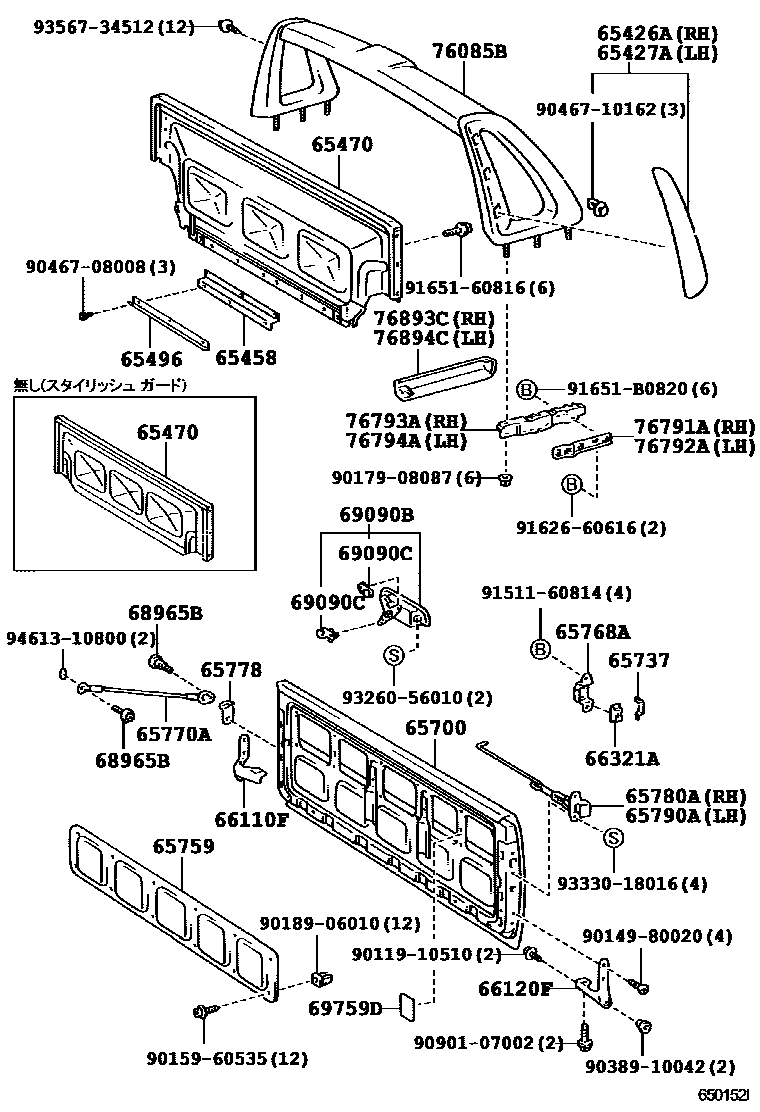

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0003 1 0006 1

65426APLATE, REAR BODY GUARD, RH

main65426-35010iLN16#,17#,RZN147,152,16#,174..Q199708-200407

65427APLATE, REAR BODY GUARD, LH

main65427-35010iLN16#,17#,RZN147,152,16#,174..Q199708-200407

65458PLATE, BAFFLE DUCT REAR BODY, LH

main65458-35010iLN17#,RZN152,174199711-200407

65470BOARD ASSY, HEADER

main65470-35050iLN147,167..TW1199708-200407

main65470-35100iLN16#,RZN16#..Q199708-200308

main65470-35110iLN147,167,RZN147..T1..CBU199708-200407

main65470-35120iLN17#,RZN174199711-200407

main65470-35160iLN147,RZN147..T3199708-200407

main65470-35170iLN17#,RZN174199711-200407

sub65470-35190

main65470-35180iRZN147..Q199708-200108

main65470-35190iRZN152199908-200308

65496SEAL, REAR BODY GUARD FRAME, NO.4

main64122-35010iLN147,16#,17#,RZN147,152,16#,174..DCB,XTR199708-200407

65700GATE ASSY, REAR BODY TAIL

main65700-35090iLN167200108-200407

main65700-35100iRZN147..ATM200108-200407

main65700-35120iRZN147..MTM..CBU200108-200407

main65700-35130iRZN152,169,174200108-200407

main65700-89146iLN167..D199708-200108

sub65700-35090

main65700-89147iLN167..D;RZN147..ATM..D199708-200108

sub65700-35100

main65700-89149iLN147,RZN147..(T1,TW1)..MTM..CBU199708-200108

sub65700-35120

main65700-89151iLN16#,17#,RZN147,152,16#,174..Q199708-200108

main65700-89152iLN147..T3199708-200407

65737STOP, TAIL GATE

main65737-89105iRZN147..ATM;LN16#,17#,RZN152,16#,174199708-200407

65759COVER, TAIL GATE SERVICE HOLE

main65759-89102iLN147,167,RZN147..(T1,TW1)..D..CBU199708-200407

main65759-89105iLN16#,17#,RZN147,152,16#,174..Q199708-200407

65768ASTRIKER, TAIL GATE LOCK

main65768-89102iRZN147,152,169,174..ATM199708-200407

65770ASTAY ASSY, TAIL GATE

main65770-35010iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200407

65778STOPPER, TAIL GATE STAY

main65778-35010iLN147,167,172..(T1,TW1)..CBU199708-200407

65780ALOCK ASSY, TAIL GATE, RH

main65780-35030iRZN147..ATM;LN16#,17#,RZN152,16#,174199708-200407

65790ALOCK ASSY, TAIL GATE, LH

main65780-35030iLN167..D;RZN147..ATM..D199708-200407

main65790-35040iLN16#,17#,RZN147,152,16#,174..Q199708-200108

main65790-35050iRZN152,169,174200108-200407

66110FHINGE ASSY, TAIL GATE, RH

main66110-89108iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200407

66120FHINGE ASSY, TAIL GATE, LH

main66120-89102iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200407

66321ABUMPER, GATE RUBBER

main66321-89109iRZN147..ATM;LN16#,17#,RZN152,16#,174199708-200407

68965BSHAFT, TAIL GATE STAY

main68965-35010iLN147,167,172..(T1,TW1)..CBU199708-200407

69090BHANDLE ASSY, TAIL GATE

main69090-35020-G0iLN16#,17#,RZN147,152,16#,174..Q199708-200108

GREEN ME.OP.,6P4

main69090-89101iLN16#,17#,RZN147,152,16#,174..Q199708-200407

sub69090-0K060

main69090-89102iLN167..D;RZN147..ATM..D199708-200407

69090CSNAP, TAIL GATE HANDLE

main69759-20100iRZN147..ATM;LN16#,17#,RZN152,16#,174199708-200407

main69759-20110iLN167,172199708-200407

69759DSILENCER, TAIL GATE LOCK LINK

main69759-35020iRZN147..ATM;LN16#,17#,RZN152,16#,174199708-200407

76085BSPOILER SUB-ASSY, REAR

main76085-35900iLN16#,17#,RZN147,152,16#,174..Q199708-200108

main76085-35902iLN172,RZN152,169,174200108-200407

76791ABRACKET, REAR SPOILER, NO.1 RH

main76791-35010iLN16#,17#,RZN147,152,16#,174..Q199708-200407

76792ABRACKET, REAR SPOILER, NO.1 LH

main76792-35010iLN16#,17#,RZN147,152,16#,174..Q199708-200407

76793ABRACKET, REAR SPOILER, NO.2 RH

main76793-35010iLN16#,17#,RZN147,152,16#,174..Q199708-200407

76794ABRACKET, REAR SPOILER, NO.2 LH

main76794-35010iLN16#,17#,RZN147,152,16#,174..Q199708-200407

76893CCOVER, REAR SPOILER, RH

main76893-35901iLN16#,17#,RZN147,152,16#,174..Q199708-200108

main76893-35902iLN172,RZN152,169,174200108-200407

76894CCOVER, REAR SPOILER, LH

main76894-35901iLN16#,17#,RZN147,152,16#,174..Q199708-200108

main76894-35902iLN172,RZN152,169,174200108-200407

9011910510

main90119-10510

9014980020

main90149-80020

9015960535

main90159-60535

9017908087

main90179-08087

9018906010

main90189-06010

9038910042

main90389-10042

9046708008

main90467-08008

9046710162

main90467-10162

9090107002

main90901-07002

9151160814

main91511-60814

9162660616

main91626-60616

9165160816

main91651-60816

91651B0820

main91651-B0820

9326056010

main93260-56010

9333018016

main93330-18016

9356734512

main93567-34512

9461310800

main94613-10800

44 parts on this diagram · 3 diagrams in section
