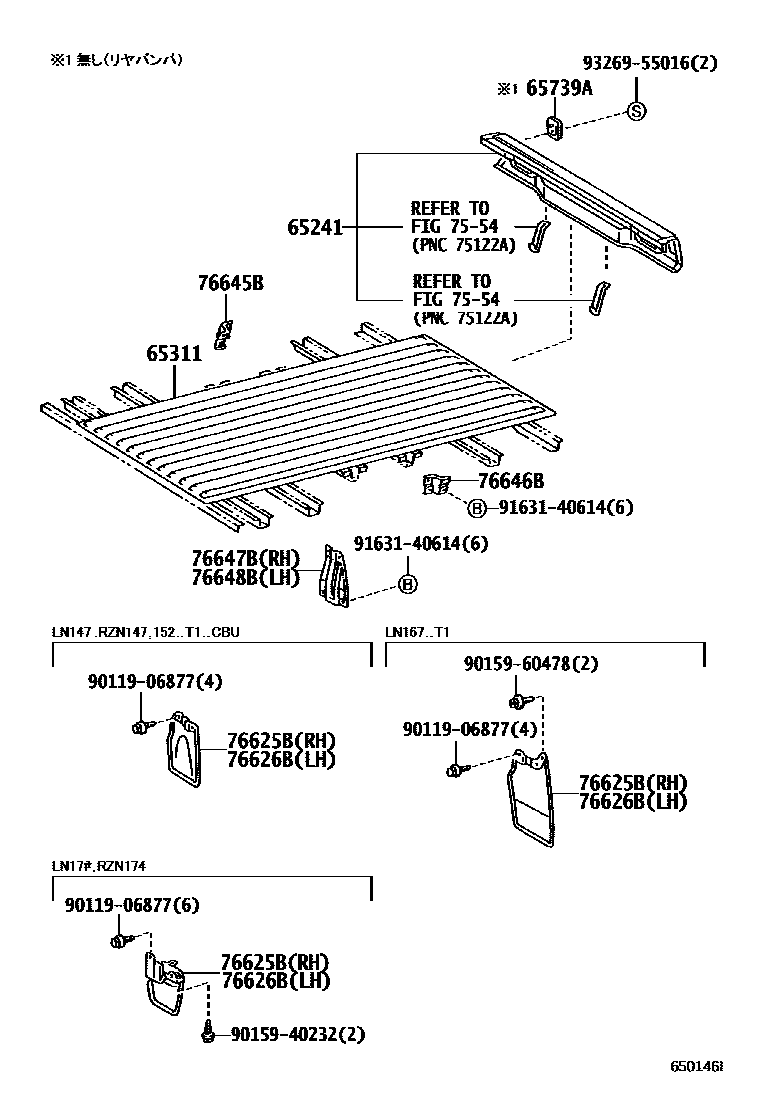

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1

65241SILL, REAR CROSS

main65240-35040iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200108

main65240-35080iRZN152;LN165,17#,RZN169,174..WIB199708-200108

main65240-89133iLN147,RZN147..T3199708-200108

65311PANEL, FLOOR, CENTER

main65311-04050iLN172,RZN152,174200108-200407

main65311-35050iLN147,16#,RZN147,16#..TW1199708-200108

main65311-89129iLN147,167,RZN147..T1..CBU199708-200108

65739ABUMPER, TAIL GATE

main65739-89103×2iRZN147,152,169,174..CBU200108-200308

main66303-87403×2iLN147,RZN147..T3199708-200108

7554TOOL BOX & LICENSE PLATE BRACKET

→ Go to FIG 75-54

76625BMUDGUARD, REAR BODY, RH

main76607-35050iLN165,17#,RZN169,174..WIB199708-200108

main76625-35140iLN16#,RZN167..NOB199708-200108

main76625-35150iLN147,RZN147,152..(T1,TW1)..CBU199708-200108

76626BMUDGUARD, REAR BODY, LH

main76608-35050iLN165,17#,RZN169,174..WIB199708-200108

main76626-35140iLN16#,RZN167..NOB199708-200108

main76626-35150iLN147,RZN147,152..(T1,TW1)..CBU199708-200108

76645BBRACKET, REAR BODY MUDGUARD, RH

main76645-35020iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200108

76646BBRACKET, REAR BODY MUDGUARD, LH

main76646-35010iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200108

76647BSUPPORT, REAR BODY MUDGUARD, RH

main76647-35050iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200108

76648BSUPPORT, REAR BODY MUDGUARD, LH

main76648-35040iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200108

9011906877

main90119-06877

9015940232

main90159-40232

9015960478

main90159-60478

9163140614

main91631-40614

9326955016

main93269-55016

15 parts on this diagram · 3 diagrams in section
