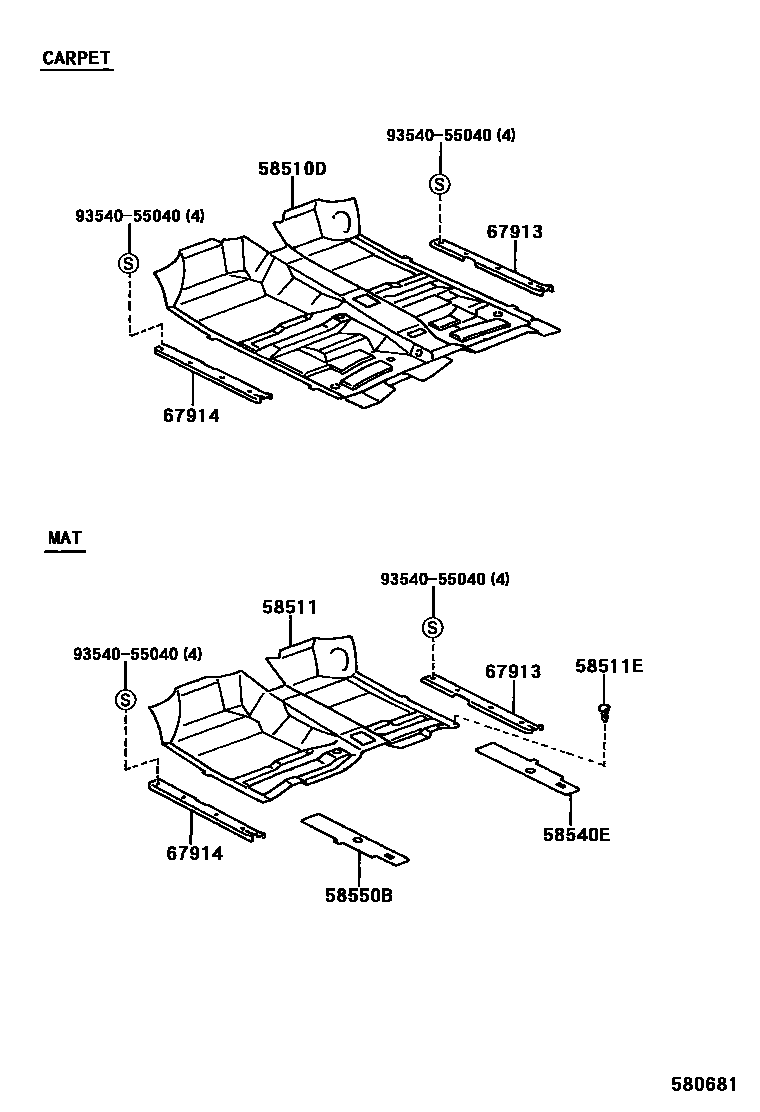

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-3D640-B0iLN167..T1199708-199805

MEDIUM MOON MIST,TRIM1#

main58510-3D850-B0iLN167..TW1..D199708-199805

MEDIUM MOON MIST,TRIM1#

main58510-3D860-B0iLN165,RZN167199708-199908

main58510-3D861-B0iLN147,167,RZN169..TW1200108-200407

main58510-3G431-B0iLN167..T1200108-200407

MEDIUM MOON MIST,TRIM1#

main58510-3G450-B0iLN167..T1199708-199805

main58510-3G511-B0iLN167..TW1200108-200407

main58510-3G520-B0iLN167,RZN147,169..Q199708-200108

main58510-3G521-B0iLN147,167,RZN169..TW1200108-200407

main58510-3G540-B0iLN167..TW1..D199708-199805

main58510-3G560-B0iLN167..TW1..D199708-199805

main58510-3G570-B0iLN167..TW1..D199708-199805

main58510-3N030-B0iLN172,RZN152,174199711-200108

MEDIUM MOON MIST,TRIM1#

main58510-3N031-B0iLN172,RZN152,174200108-200310

MEDIUM MOON MIST,TRIM1#

main58510-3N032-B0iLN172200310-200407

MEDIUM MOON MIST,TRIM1#

main58510-3N150-B0iLN167..T1199807-200108

MEDIUM MOON MIST,TRIM1#

main58510-3N220-B0iLN167..TW1..D199805-200108

MEDIUM MOON MIST,TRIM1#

main58510-3N230-B0iLN167..TW1..D199805-200108

main58510-3N240-B0iLN167..TW1..D199805-200108

main58510-3N241-B0iLN167..TW1200108-200407

58511MAT, FLOOR, FRONT

main58510-3G100-B0iLN147,RZN147..MTM199708-200108

MEDIUM MOONMIST,TRIM1#

main58510-3G101-B0iLN147,RZN147..MTM200108-200407

MEDIUM MOONMIST,TRIM1#

main58510-3G120-B0iLN147..TW1199708-200108

main58510-3G121-B0iLN147..TW1200108-200407

main58510-3G270-B0iRZN147..ATM..D199708-200108

main58510-3G271-B0iRZN147..ATM200108-200308

MEDIUM MOONMIST,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-06049-22×2iLN147,RZN147..D199708-200108

BLACK,TRIM1#

58540EMAT ASSY, FLOOR, REAR RH

main58540-35150-B0iRZN147200108-200308

MEDIUM MOONMIST,TRIM1#

58550BMAT ASSY, FLOOR, REAR LH

main58550-35010-B0iLN147,RZN147..SCB199708-200108

MEDIUM MOONMIST,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-35020-B0iRZN169200108-200308

MD.MOON MIST,TRIM1#

main67913-35030-B0iRZN147,152,174200108-200308

MD.MOON MIST,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-35020-B0iLN147,16#,RZN147,16#..TW1199708-200108

MD.MOON MIST,TRIM1#

main67914-35030-B0iLN147,167,17#,RZN147,152,174..T1,T3199708-200108

MD.MOON MIST,TRIM1#

9354055040

main93540-55040

8 parts on this diagram · 3 diagrams in section
