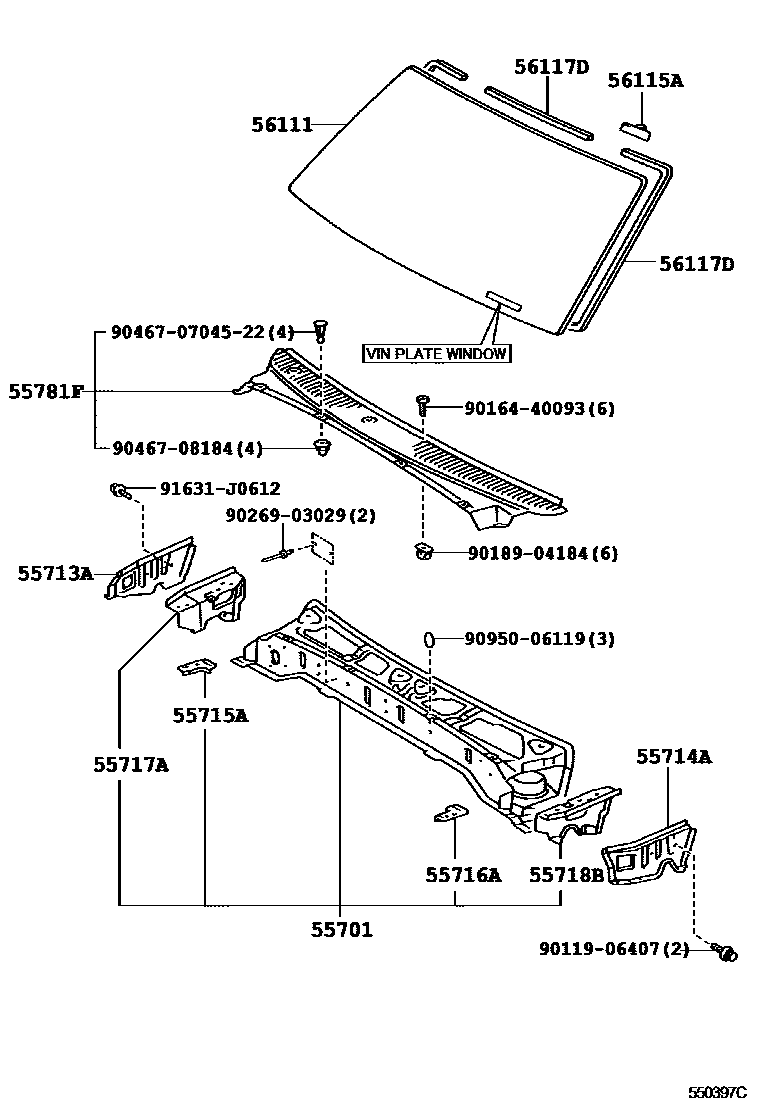

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-35330iLN147,16#,17#,RZN147,152,16#,174199708-200108

main55700-35550iLN172,RZN152200108-200407

main55700-35560iRZN169,174200108-200308

55713APANEL, COWL TOP SIDE, RH

main55713-35011iLN147,16#,17#,RZN147,152,16#,174199708-200108

55714APANEL, COWL TOP SIDE, LH

main55714-35011iLN147,167,172200108-200407

55715ABRACE, COWL TOP TO APRON, RH

main55715-35010iLN147,16#,17#,RZN147,152,16#,174199708-200108

55716ABRACE, COWL TOP TO APRON, LH

main55716-35010iLN147,16#,17#,RZN147,152,16#,174199708-200108

55717APANEL, COWL TOP SIDE, INNER RH

main55717-35020iLN147,16#,17#,RZN147,152,16#,174199708-200108

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-35020iRZN147,152,169,174200108-200308

55781FLOUVER, COWL TOP VENTILATOR

main55708-35030iLN147,167,172,RZN147,152,169,174199708-200108

main55708-35031iRZN147,152,169,174200108-200308

main55708-35032iLN147,167,172200403-200407

56111GLASS, WINDSHIELD

main56111-35010iLN147,16#,RZN147,167199708-199711

main56111-35011iLN147,16#,17#,RZN147,152,16#,174199901-200108

main56111-35012iLN147,167,172200108-200407

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56116-35050×2iRZN147,152,169,174200108-200308

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-47010iLN147,167,172,RZN147,152,169,174200206-200407

main56117-52040iLN147,167,172,RZN147,152,169,174200108-200407

9011906407

main90119-06407

9016440093

main90164-40093

9018904184

main90189-04184

9026903029

main90269-03029

904670704522

main90467-0704522

9046708184

main90467-08184

9095006119

main90950-06119

91631J0612

main91631-J0612

19 parts on this diagram · 1 diagram in section
