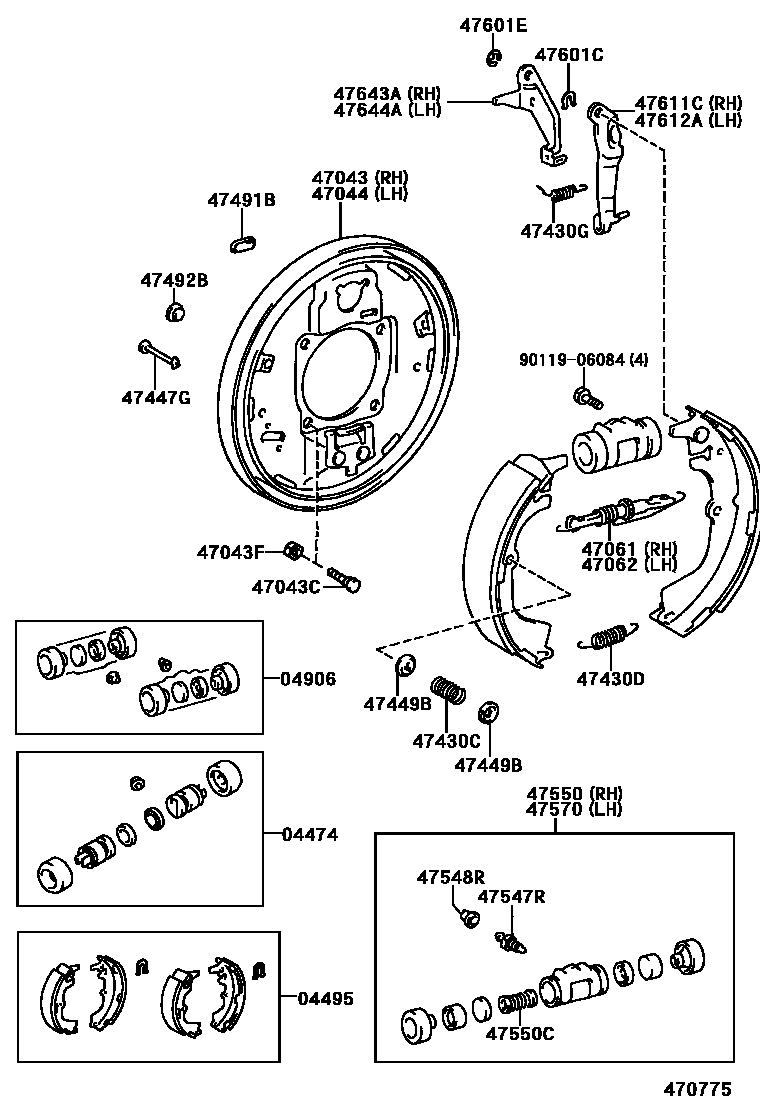

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-26040iLN147,RZN147,152199708-200407

main04474-35080iLN165,170,RZN167199708-200407

04495SHOE KIT, REAR BRAKE

main04495-35170iLN147,RZN147,152199908-200407

main04495-35230iLN165,170,RZN167199708-200407

main04495-35240iLN147,RZN147199708-199908

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26060iLN147,RZN147,152199708-200407

main04906-35100iLN167,172,RZN169,174199708-200407

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26120iLN147,RZN147199708-199908

main47043-35061iLN147,RZN147,152199908-200407

main47043-35170iLN167,172,RZN169,174199708-200407

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002iLN167,172199708-200407

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10067iLN147,167,172,RZN147,152,169,174199708-200407

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26120iLN147,RZN147199708-199908

main47044-35051iLN147,RZN147,152199908-200407

main47044-35160iLN167,172,RZN169,174199708-200407

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-35020iLN147,RZN147,152199708-200407

main47061-60011iLN167,172,RZN169,174199708-200407

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-35020iLN147,RZN147,152199708-200407

main47062-60011iLN167,172,RZN169,174199708-200407

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iLN147,16#,17#,RZN147,167199708-200108

main90501-20604iLN167,172,RZN169,174200108-200407

main90501-20756iLN147,RZN147,152199908-200407

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iLN167,172,RZN169,174199708-200407

main90506-20005iLN147,RZN147,152199908-200407

main90506-20070iLN147,RZN147199708-199908

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12015iLN147,RZN147,152199908-200407

main90506-12031iLN167,172,RZN169,174199708-200407

main90507-12036iLN147,RZN147199708-199908

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iLN147,RZN147199708-199908

main47447-30020iLN16#,17#,RZN167199708-200407

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iLN147,16#,17#,RZN147,152,16#,174199708-200407

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-20011iLN147,16#,17#,RZN147,152,16#,174199708-200407

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iLN147,167,172,RZN147,152,169,174199708-200407

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iLN147,RZN147,152199708-200407

main47547-60020iLN167,172,RZN169,174199708-200407

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iLN147,RZN147,152199708-200407

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26130iLN147,RZN147,152199708-200407

main47550-35190iLN16#,17#,RZN16#,174199708-200407

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60009iLN147,RZN147,152199708-200407

main90029-60011iLN167,172,RZN169,174199708-200407

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26130iLN147,RZN147,152199708-200407

main47550-35190iLN167,172,RZN169,174199708-200407

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-35040iLN16#,17#,RZN16#,174199708-200407

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iLN147,16#,17#,RZN147,152,16#,174199708-200407

47601ERING, E(FOR REAR BRAKE)

main96160-00500iLN147,16#,17#,RZN147,152,16#,174199708-200407

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-26050iLN147,RZN147199708-199908

main47611-35020iLN147,RZN147,152199908-200407

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-26050iLN147,RZN147199708-199908

main47612-35020iLN147,RZN147,152199908-200407

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-26010iLN147,RZN147199708-199908

main47643-35020iLN147,RZN147,152199908-200407

main47643-60010iLN16#,17#,RZN16#,174199708-200407

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-26010iLN147,RZN147199708-199908

main47644-35020iLN147,RZN147,152199908-200407

main47644-60010iLN16#,17#,RZN16#,174199708-200407

9011906084

main90119-06084

29 parts on this diagram · 2 diagrams in section
