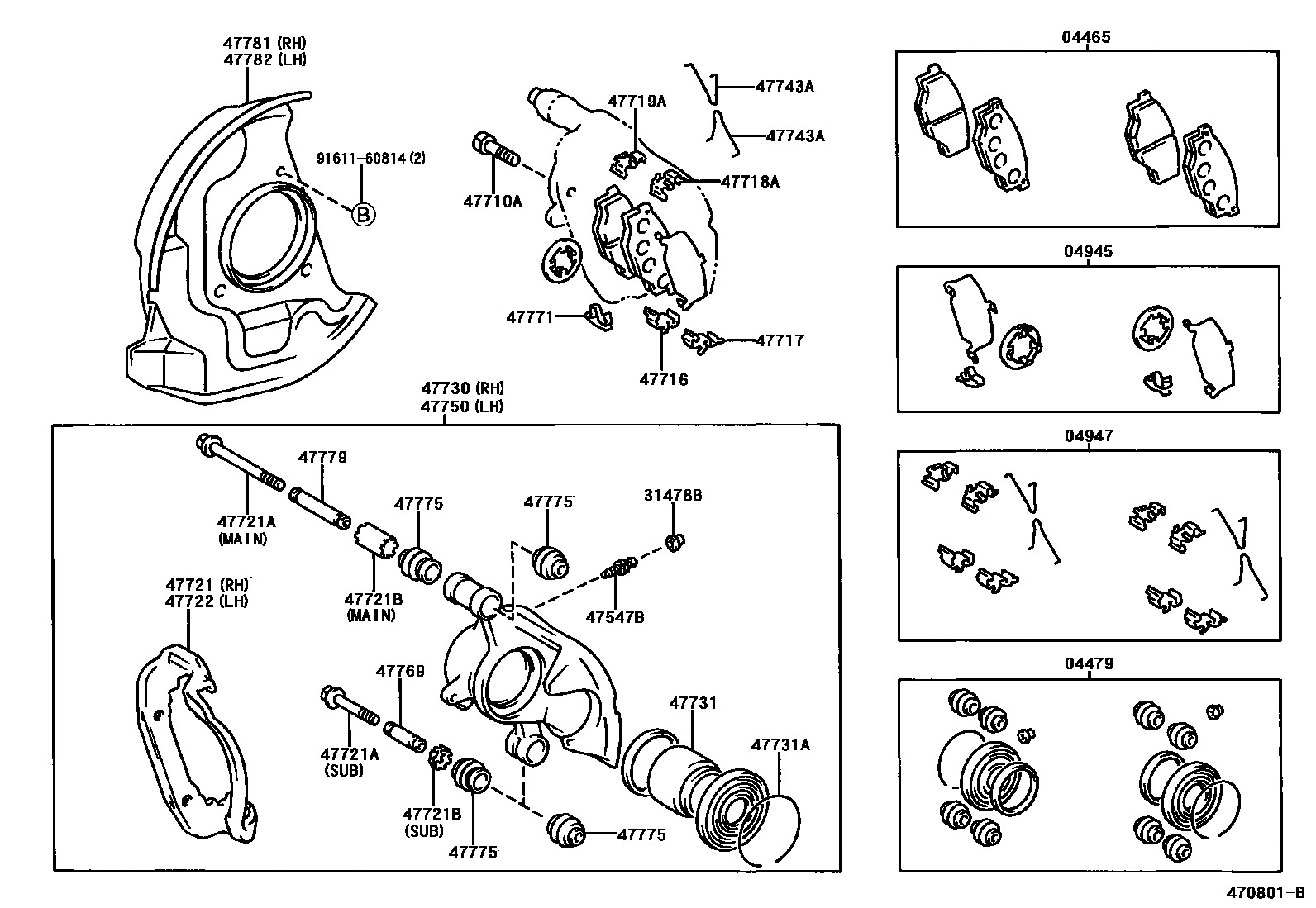

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-35220iLN147,RZN147,152200108-200301

main04465-35260iLN167,172,RZN169,174199708-200108

main04465-35270iLN147,RZN147,152200301-200407

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-35010iLN165,170,RZN167199708-199908

main04479-35050iLN147,RZN147,152200108-200407

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-35040iLN167,172,RZN169,174200108-200407

main04945-35072iLN147,RZN147,152199708-200108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-26030iLN147,RZN147,152200108-200407

main04947-60050iLN16#,17#,RZN16#,174199708-200108

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iLN147,16#,17#,RZN147,152,16#,174199708-200108

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iLN147,RZN147,152200108-200407

main47547-20030×2iLN16#,17#,RZN16#,174199708-200108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144×4iLN16#,17#,RZN16#,174199708-200108

main90119-12058×4iLN147,RZN147,152199708-200108

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-26040×2iLN147,RZN147,152199708-200108

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-26040×2iLN147,RZN147,152199708-200108

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-26010×2iLN147,RZN147,152199708-200108

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-26010×2iLN147,RZN147,152199708-200108

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26050iLN147,RZN147,152199708-200108

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014×2iLN147,RZN147,152200108-200407

main90119-10249×2iLN147,RZN147,152200108-200407

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-16004×2iLN147,RZN147,152199708-200108

main90387-16005×2iLN147,RZN147,152199708-200108

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26050iLN147,RZN147,152200108-200407

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35130iLN147,RZN147,152199708-200108

main47730-35140iLN16#,17#,RZN16#,174199708-200108

47731PISTON, FRONT DISC BRAKE

main47731-35050×8iLN167,172,RZN169,174200108-200407

main47731-40010×2iLN147,RZN147,152199708-200108

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iLN147,RZN147,152199708-200108

main90522-48044×8iLN16#,17#,RZN16#,174199708-200108

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-40020×2iLN147,RZN147,152199708-200108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35130iLN147,RZN147,152199708-200108

main47750-35140iLN16#,17#,RZN16#,174199708-200108

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-35020×2iLN147,RZN147,152199708-200108

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-35010×2iLN147,RZN147,152200108-200407

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-40010×8iLN147,RZN147,152199708-200108

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010×2iLN147,RZN147,152199708-200108

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-35062iLN167,172,RZN169,174200108-200407

main47703-35110iLN147,RZN147200108-200407

main47781-35140iLN147,RZN147..D199708-200108

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-35062iLN16#,17#,RZN16#,174199708-200108

main47704-35110iLN147,RZN147199708-200108

main47782-35140iLN147,RZN147200108-200407

9161160814

main91611-60814

27 parts on this diagram · 2 diagrams in section
