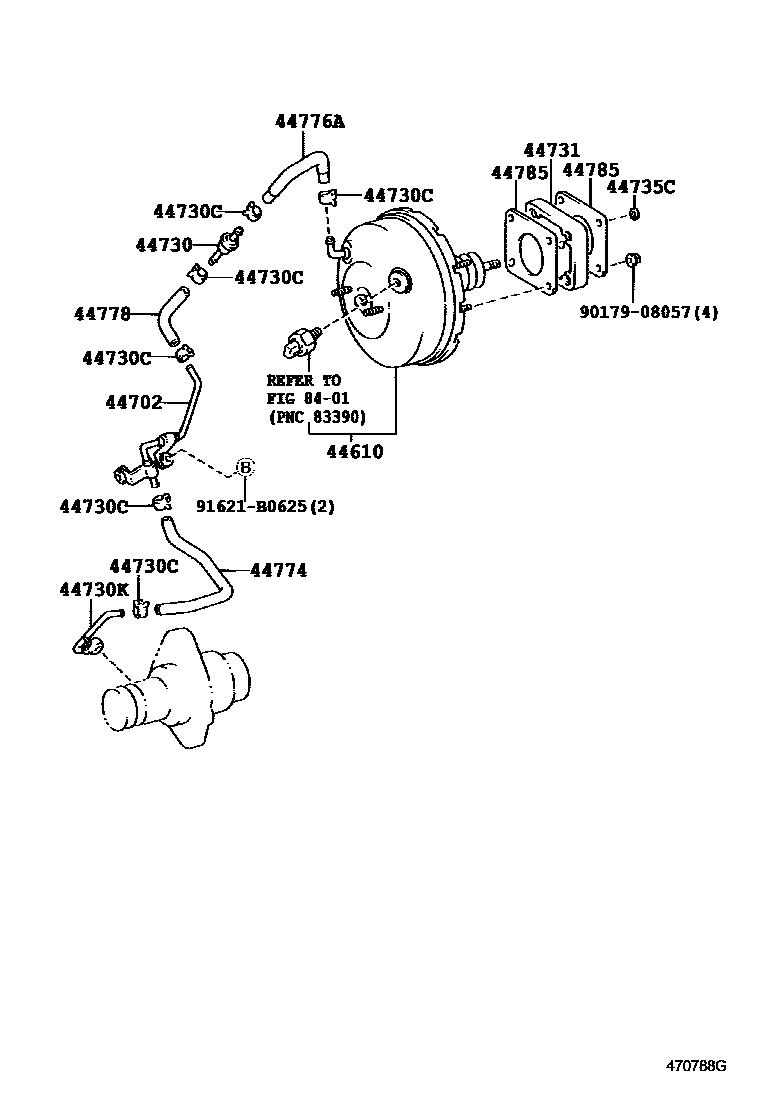

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-3D710iLN147,167,172200108-200407

main44610-3D720iLN165,170199708-199908

main44610-3D750iRZN147,152,169,174200108-200308

44702TUBE SUB-ASSY, AIR, NO.1

main44702-35010iLN147,167,172200108-200407

main44702-35030iLN165,170199708-199908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iRZN147,152,169,174200108-200308

main44730-35010iLN147,167,172199708-200108

main44730-60050iLN165,170199708-199908

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×5iRZN147,152,16#,174199708-200108

main96133-41500×6iLN147,167,172199708-200108

44730KUNION, VACUUM HOSE(FOR VACUUM PUMP)

main90405-09183iLN147,167; LN172200108-200407

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-35090iLN165,170,RZN147,152,16#,174199708-200108

main44731-35130iLN147,167,172199708-200108

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010×2iLN147,167,172199708-200108

44774HOSE, UNION TO CONNECTOR TUBE

main44774-35070iLN147,16#,17#199708-200108

main44774-35100iRZN147,152200108-200308

main44774-35120iRZN169,174199908-200108

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-35030iLN147,16#,17#199708-200108

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-35060iLN147,167,172200108-200407

main90445-17039iLN165,170199708-199908

44785GASKET, BRAKE BOOSTER

main44785-35020×2iLN147,16#,17#,RZN147,152,16#,174199708-200108

9017908057

main90179-08057

91621B0625

main91621-B0625

13 parts on this diagram · 3 diagrams in section
