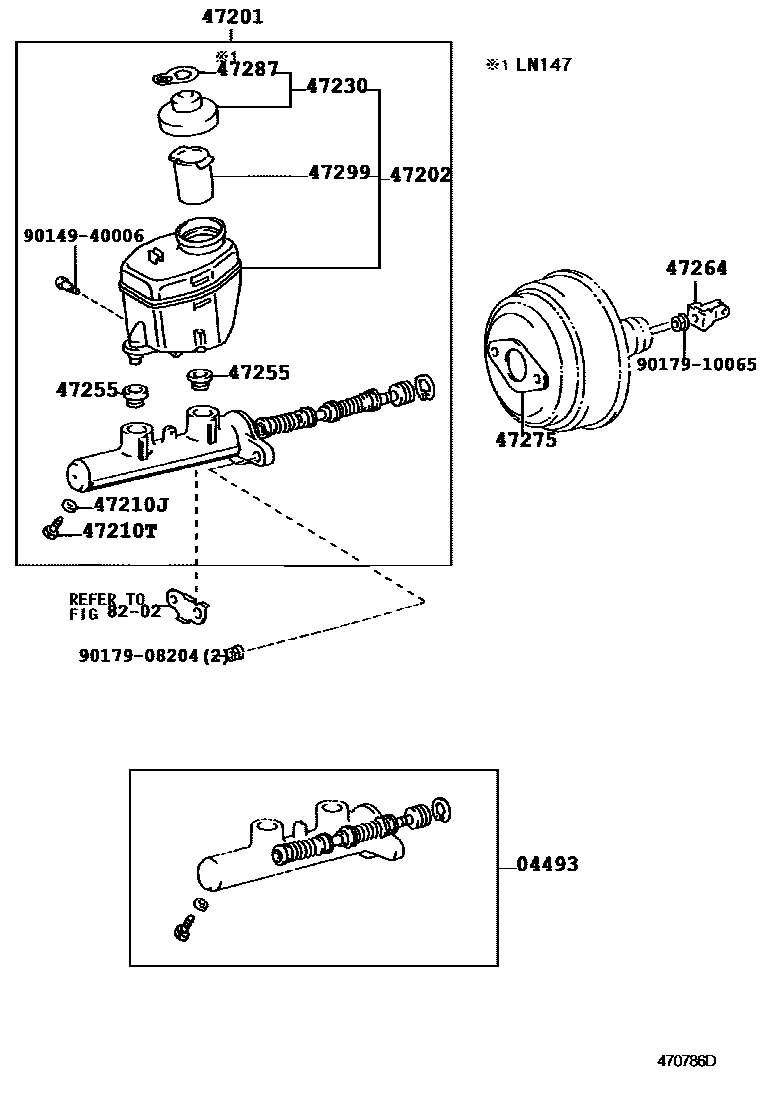

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-3D010iRZN152200108-200308

main04493-60280iLN147,RZN147..D199708-200108

main04493-60290iLN165,170,RZN167199708-199908

main04493-60300iLN167200108-200407

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-3D320iLN167200108-200407

main47201-3D340iLN167,172200108-200407

main47201-3D420iLN147200108-200407

main47201-3D430iLN147200108-200407

main47201-60680iRZN147200108-200308

main47201-60690iRZN147200108-200308

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-35010iLN16#,17#,RZN147,152,16#,174199708-200108

main47220-60080iLN147199708-200108

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iLN147,167,172,RZN147,152,169,174200108-200407

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iLN147,16#,17#,RZN147,152,16#,174199708-200108

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iLN16#,17#,RZN147,152,16#,174199708-200108

main47230-20140iLN147200108-200407

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iLN147,16#,17#,RZN147,152,16#,174199708-200108

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-28010iLN147,16#,17#,RZN147,152,16#,174199708-200108

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iLN147,16#,17#,RZN147,152,16#,174199708-200108

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iLN147199708-200108

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iLN147,16#,17#,RZN147,152,16#,174199708-200108

8202

9014940006

main90149-40006

9017908204

main90179-08204

9017910065

main90179-10065

15 parts on this diagram · 1 diagram in section
