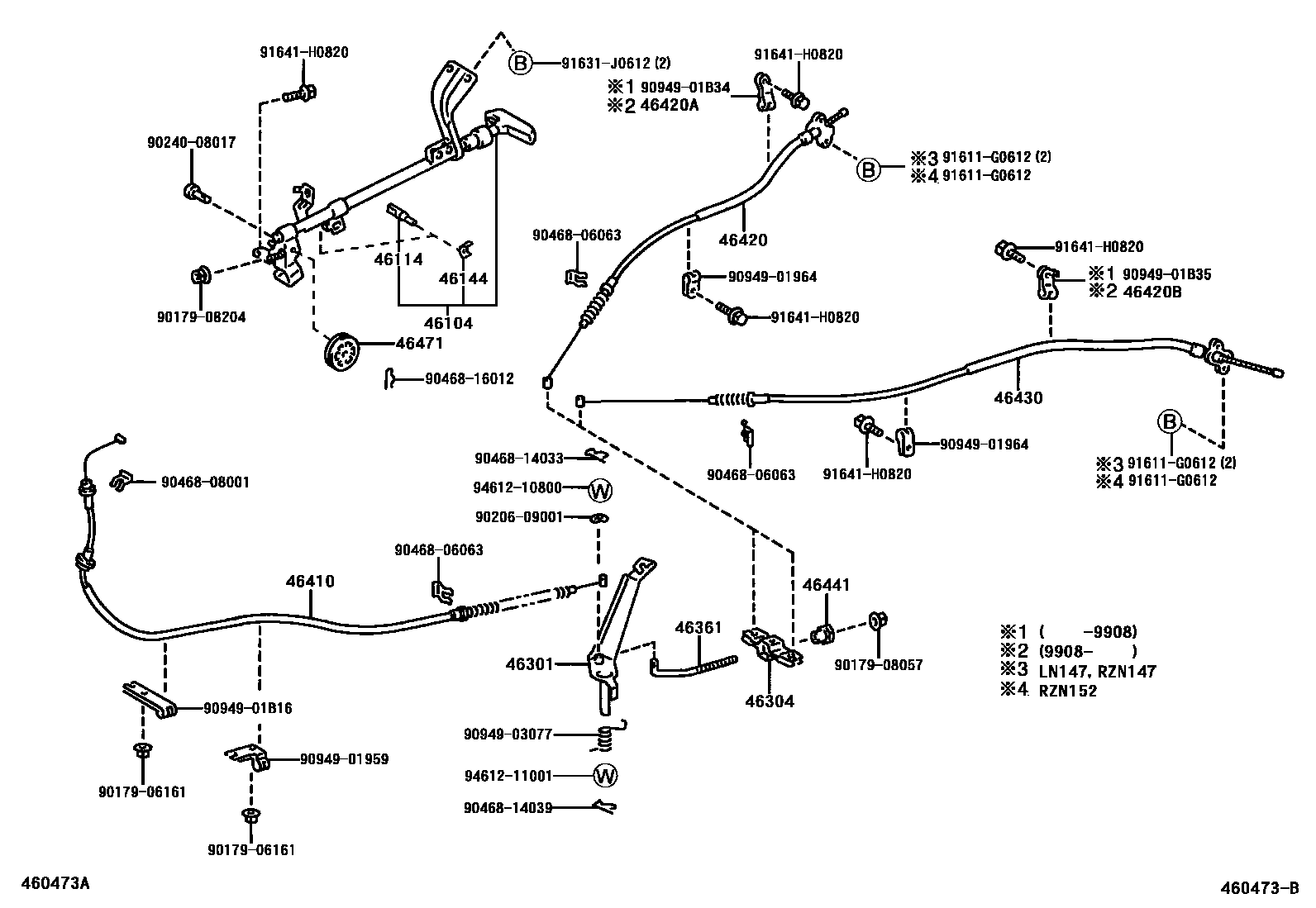

PARKING BRAKE & CABLE

0001 1 0002 1

46104HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46104-35050iLN147,167,172,RZN147,152,169,174200108-200407

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLN147,167,172,RZN147,152,169,174200108-200407

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-30020iLN147,16#,17#,RZN147,152,16#,174199708-200108

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-04010iLN147,RZN147,152200305-200407

main46301-04020iLN167,172,RZN169,174200305-200407

main46301-35160iLN147,RZN147,152200108-200407

main46301-35200iLN167,172,RZN169,174200108-200407

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-28010iLN147,RZN147,152199708-200108

main46341-35030×2iLN16#,17#,RZN16#,174199708-200108

46361ROD, PARKING BRAKE PULL

main46361-35110iLN147,RZN147,152199708-200108

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35810iLN16#,RZN16#199708-200108

main46410-35820iLN172,RZN174200108-200407

main46410-35850iLN147,RZN147,152200108-200407

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35620iLN16#,17#,RZN16#,174199708-200108

main46420-35640iLN147,RZN147199708-199908

main46420-35691iLN147,RZN147199908-200108

main46420-35701iRZN152199908-200108

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-35010iLN147,RZN147,152199908-200108

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-35010iLN147,RZN147,152200108-200407

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35490iLN147,RZN147199708-199908

main46430-35531iLN147,RZN147199908-200108

main46430-35541iRZN152199908-200108

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030×2iLN16#,17#,RZN16#,174199708-200108

main46441-35020iLN147,RZN147,152200108-200407

46471PULLEY, WIRE

main46471-30010iLN147,167,172,RZN147,152,169,174200108-200407

9017906161

main90179-06161

9017908057

main90179-08057

9017908204

main90179-08204

9020609001

main90206-09001

9024008017

main90240-08017

9046806063

main90468-06063

9046808001

main90468-08001

9046814033

main90468-14033

9046814039

main90468-14039

9046816012

main90468-16012

9094901959

main90949-01959

9094901964

main90949-01964

9094901B16

main90949-01B16

9094901B34

main90949-01B34

9094901B35

main90949-01B35

9094903077

main90949-03077

91611G0612

main91611-G0612

91631J0612

main91631-J0612

91641H0820

main91641-H0820

9461210800

main94612-10800

9461211001

main94612-11001

34 parts on this diagram · 2 diagrams in section
