Toyota 671130 — POWER STEERING TUBE

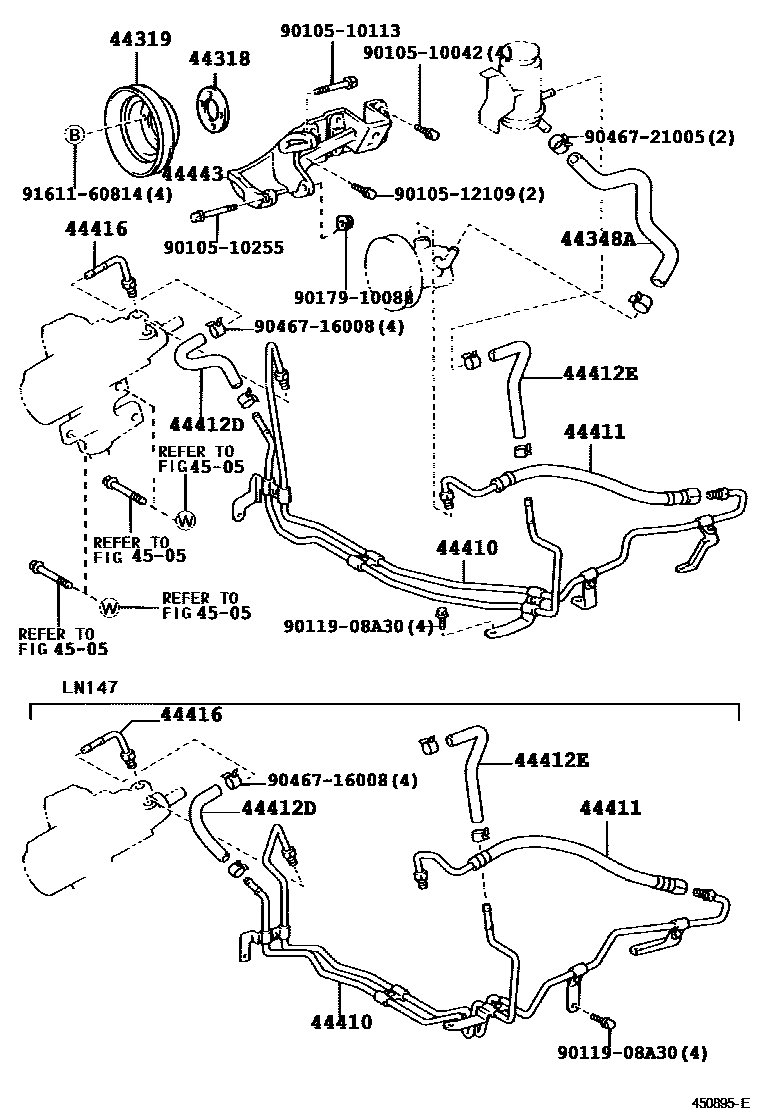

Parts diagram

44318SPACER, VANE PUMP DRIVE PULLEY

44319PULLEY, VANE PUMP DRIVE

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

44410TUBE ASSY, PRESSURE FEED

44411HOSE, PRESSURE FEED

44412DHOSE, RETURN, NO.1

44412EHOSE, RETURN, NO.2

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

44443BRACKET, PUMP

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510042

9010510113

9010510255

9010512109

9011908A30

9017910088

9046716008

9046721005

9161160814

19 parts on this diagram · 3 diagrams in section

POWER STEERING TUBE for Toyota 671130

This section contains 32 genuine Toyota parts for the POWER STEERING TUBE system of the Toyota 671130. Key components include: V-BELT, VACUUM PIPING, SPACER, VANE PUMP DRIVE PULLEY, PULLEY, VANE PUMP DRIVE, GASKET, PRESSURE PORT, NO.1.
