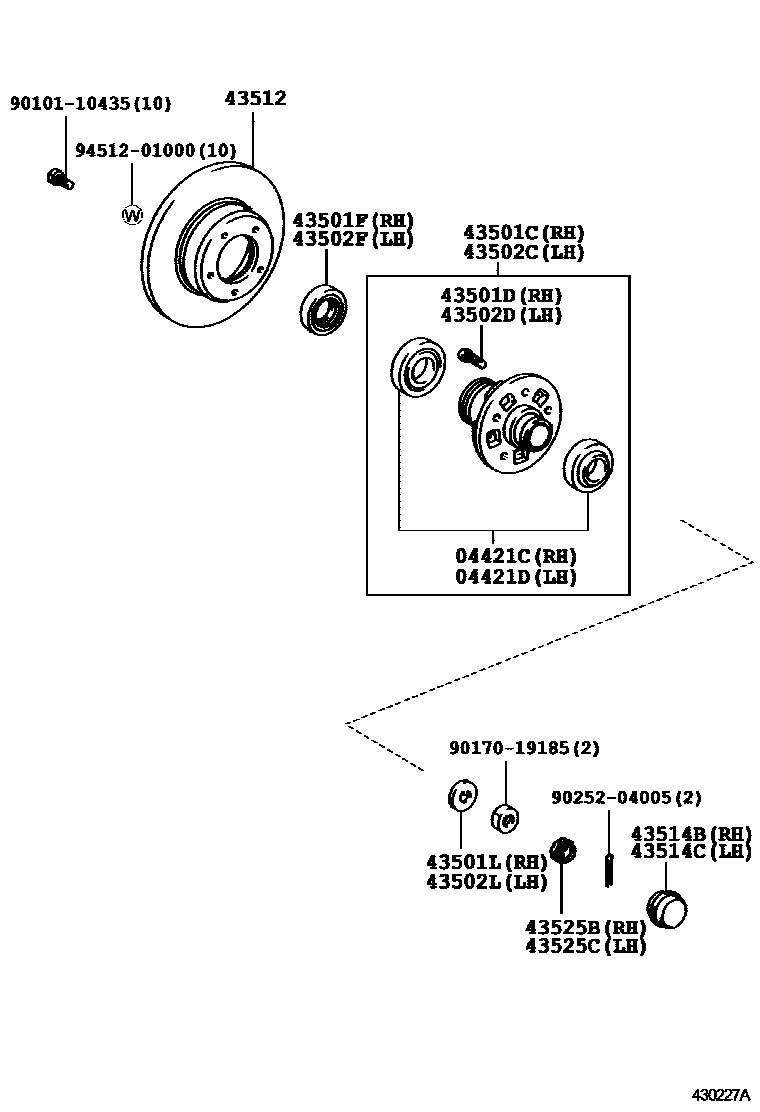

FRONT AXLE HUB

0001 1 0002 1

04421CBEARING KIT, FRONT AXLE SHAFT, RH

main04421-35020iLN147,RZN147,152199708-200108

04421DBEARING KIT, FRONT AXLE SHAFT, LH

main04421-35020iLN147,RZN147,152199708-200108

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-39105iLN147,RZN147..D199708-200108

main43502-39115iLN147,RZN147,152199708-200108

main43503-29015iLN17#,RZN169,174199711-200108

main43503-39025iLN147,RZN147,152200108-200407

main43511-39015iLN167200108-200407

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047iLN147,RZN147,152200108-200407

main90942-02049×6iLN165,170,RZN167199708-199908

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50005iLN147,RZN147,152199708-200108

main90311-66003iLN165,170,RZN167199708-199908

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-20007iLN147,RZN147,152200108-200407

main90214-42030iLN165,170,RZN167199708-199908

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-39105iLN147,RZN147..D199708-200108

main43502-39115iLN147,RZN147,152199708-200108

main43503-29015iLN167; LN172,RZN169,174200108-200407

main43503-39025iLN147,RZN147,152200108-200407

main43511-39015iLN167200108-200407

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047×5iLN147,RZN147,152199708-200108

main90942-02049×6iLN167,172,RZN169,174199708-200108

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50005iLN147,RZN147,152200108-200407

main90311-66003iLN165,170,RZN167199708-199908

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-20007iLN147,RZN147,152199708-200108

main90214-42030iLN167,172,RZN169,174200108-200407

43512DISC, FRONT

main43512-35180×2iLN147,RZN147,152200108-200407

main43512-35190×2iLN16#,17#,RZN16#,174199708-200108

43514BCAP, FRONT AXLE HUB GREASE, RH

main43423-35010iLN165,170,RZN167199708-199908

main43514-35010iLN147,RZN147,152199708-200108

43514CCAP, FRONT AXLE HUB GREASE, LH

main43423-35010iLN172,RZN169,174200108-200407

main43514-35010iLN147,RZN147,152200108-200407

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-22010iLN147,RZN147,152199708-200108

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-22010iLN147,RZN147,152199708-200108

9010110435

main90101-10435

9017019185

main90170-19185

9025204005

main90252-04005

9451201000

main94512-01000

19 parts on this diagram · 2 diagrams in section
