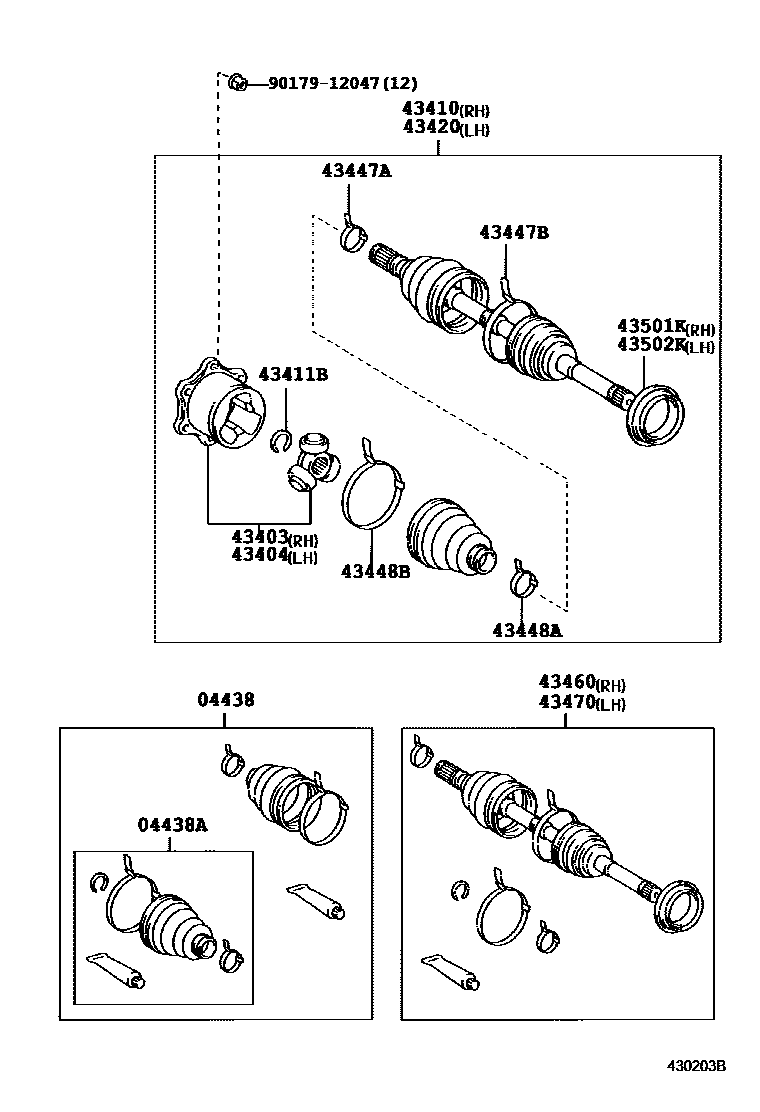

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04428-35010×2iLN167,172200309-200407

sub04428-35012

main04438-35022×2iLN167,172,RZN169,174200108-200309

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-35012×2iLN16#,17#,RZN16#,174199708-200108

main04438-35070×2iLN167,172200309-200407

sub04438-25010

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-35020iLN167,172,RZN169,174..Q200107-200108

sub43403-26010

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-35020iLN16#,17#,RZN16#,174199708-200107

sub43403-26010

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-35012iLN167..D199708-200107

sub90316-60004

main43430-35021iLN16#,RZN167199708-200107

sub90316-60004

main43430-35022iLN167,172,RZN169,174200107-200108

sub43430-35023

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028×2iLN16#,17#,RZN16#,174199708-200107

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-35012iLN167..D199708-200107

sub90316-60004

main43430-35021iLN16#,RZN167199708-200107

sub90316-60004

main43430-35022iLN167,172,RZN169,174200107-200108

sub43430-35023

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01221×2iLN16#,17#,RZN16#,174199708-200107

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01135×2iLN16#,17#,RZN16#,174199708-200107

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01221×2iLN16#,17#,RZN16#,174199708-200107

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01222×2iLN16#,17#,RZN16#,174199708-200107

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39027iLN167..D199708-200107

sub90316-60004

main43460-39046iLN16#,RZN167199708-200107

sub90316-60004

main43460-39175iLN167,172,RZN169,174200107-200108

main43460-39275iLN167,172200309-200407

sub43460-39276

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-39027iLN167..D199708-200107

sub90316-60004

main43460-39046iLN16#,RZN167199708-200107

sub90316-60004

main43460-39175iLN167,172,RZN169,174200107-200108

main43460-39275iLN167,172200309-200407

sub43460-39276

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-76002iLN172,RZN169,174199711-200107

sub90316-60004

main90304-76003iLN167..D199708-200107

main90304-76005iLN167,172,RZN169,174200107-200108

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-76002iLN165,RZN167199708-199908

sub90316-60004

main90304-76003iLN167..D199708-200107

main90304-76005iLN167,172,RZN169,174200108-200407

9017912047

main90179-12047

16 parts on this diagram · 1 diagram in section
