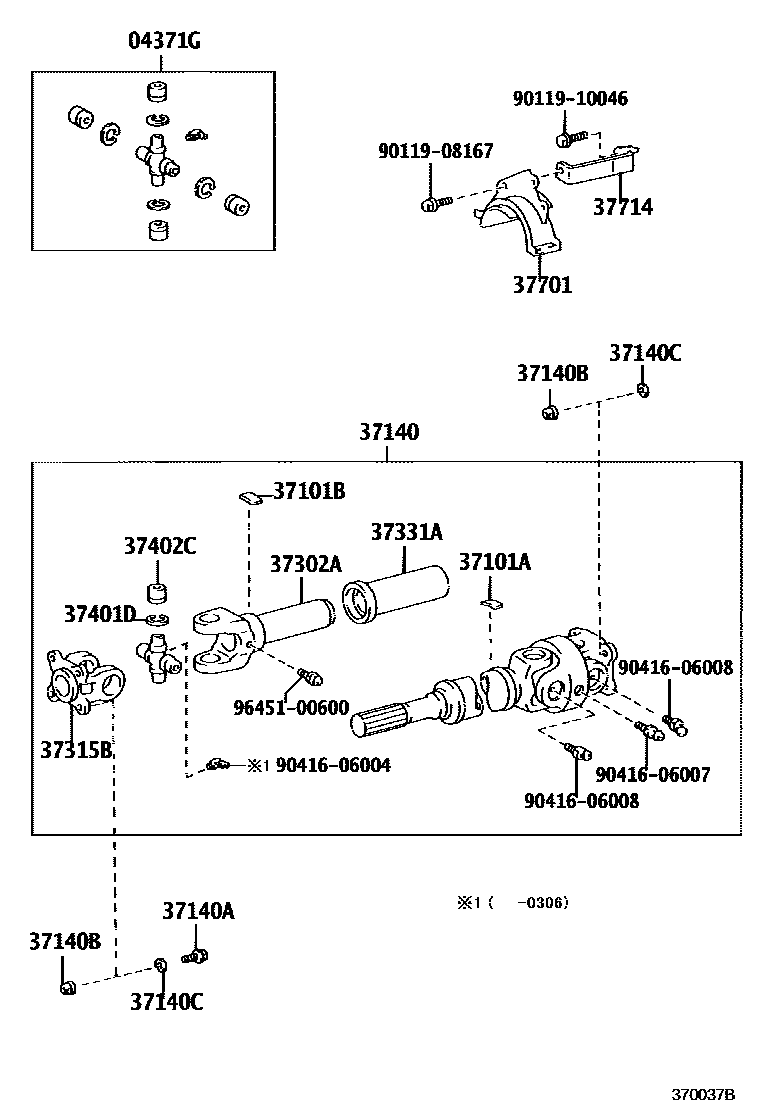

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1���� 0002 1���� 0003 1�� 0004 1�� 0005 1 0006 1�� 0007 1��

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-35031iLN16#,17#,RZN167199708-199712

main04371-35050iLN16#,17#,RZN16#,174199712-200008

main04371-35051iLN167,172,RZN169,174200008-200108

main04371-60070iLN167,172,RZN169,174200306-200407

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iLN165,170,RZN167199708-199908

main90937-01136iLN147,167,172200108-200407

main90937-01140iRZN174199908-200108

main90937-01147iRZN147,152,169,174200108-200308

main90937-01148iLN147,167,172,RZN147,152,169,174199708-200108

main90937-01149iLN147,167,172,RZN147,152,169,174199708-200108

main90937-01150iLN165,170,RZN167199708-199908

main90937-01151iLN147,167,172200108-200407

main90937-01152iLN147,167,172200108-200407

main90937-01153iRZN147,152,169,174200108-200308

main90937-01154iLN147,167,172,RZN147,152,169,174199708-200108

main90937-01155iLN147,167,172,RZN147,152,169,174199708-200108

main90937-01156iLN147,167,172200108-200407

main90937-01157iRZN147,152,169,174200108-200308

main90937-01158iRZN147,152,169,174200108-200308

main90937-01201iRZN147,152,169,174200108-200308

main90937-01202iLN167,172,RZN152,169,174199708-200108

main90937-01203iLN167,172,RZN152,169,174199708-200108

main90937-01204iLN147,RZN147199805-200108

main90937-01205iLN165,170,RZN167199708-199908

main90937-01206iLN165,170,RZN167199708-199908

main90937-01207iLN167,172,RZN152,169,174199708-200108

main90937-01208iLN165,170,RZN167199708-199908

main90937-01209iLN147,167,172200108-200407

main90937-01210iLN147,RZN147199805-200108

main90937-01211iLN165,170,RZN167199708-199908

main90937-01396iLN167,172200403-200407

main90937-01397iLN167,172200403-200407

main90937-01398iLN167,172200403-200407

main90937-01399iLN167,172200403-200407

main90937-01400iLN167,172200403-200407

main90937-01401iLN167,172200403-200407

main90937-01402iLN167,172200403-200407

main90937-01497iRZN174200108-200308

main90937-01498iRZN174200108-200308

main90937-01499iRZN174200108-200308

main90937-01500iRZN174199908-200108

main90937-01501iRZN174200108-200308

main90937-01502iRZN174200108-200308

main90937-01503iRZN174199908-200108

main90937-01504iRZN174199908-200108

main90937-01505iRZN174200108-200308

main90937-01506iRZN174199908-200108

main90937-01507iRZN174199908-200108

main90937-01508iRZN174200108-200308

main90937-01509iRZN174200108-200308

main90937-01510iRZN174200108-200308

37101BPIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT)

main90937-01184iLN165,170,RZN167199708-199908

main90937-01191iLN165,170,RZN167199708-199908

main90937-01192iLN167,172200108-200407

main90937-01193iLN167,172200108-200407

main90937-01194iLN167,172,RZN169,174199708-200108

main90937-01198iLN167,172200108-200407

main90937-01199iLN165,170,RZN167199708-199908

main90937-01200iLN167,172200108-200407

main90937-01268iLN165,170,RZN167199708-199908

main90937-01269iLN167,172,RZN169,174199708-200108

main90937-01270iRZN169,174200108-200308

main90937-01271iRZN169,174200108-200308

main90937-01272iLN167,172200108-200407

main90937-01273iRZN169,174200108-200308

main90937-01274iLN167,172,RZN169,174199708-200108

37140SHAFT ASSY, PROPELLER, FRONT

main37140-35071iLN167,172,RZN167199708-200108

main37140-35090iLN165,170199708-199908

main37140-35091iRZN169,174200108-200308

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-10085×4iLN167,172200108-200407

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90179-10059×8iLN16#,17#,RZN16#,174199708-200108

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90204-10002×8iLN16#,17#,RZN16#,174199708-200108

37302AYOKE SUB-ASSY, FR PROPELLER SHAFT UNIVERSAL J0INT SLEEVE

main37302-35050iRZN169,174200108-200308

37315BY0KE, FRONT PROPELLER SHAFT UNIVERSAL J0INT FLANGE

main37315-35040iLN16#,17#,RZN16#,174199708-200006

main37315-35070iLN167,172,RZN169,174200006-200108

37331ACOVER SUB-ASSY, FRONT PROPELLER SHAFT SLIDING SHAFT DUST

main37305-35020iRZN169,174200108-200308

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-25039×4iLN167,172200108-200407

main90520-25040×4iRZN169,174200108-200308

main90520-25041×4iLN167,172,RZN169,174200006-200108

main90520-25042×4iLN167,172200108-200407

main90520-25043×4iLN167,172200108-200407

main90520-25044×4iLN167,172,RZN169,174200006-200108

main90520-25045×4iLN167,172200108-200407

main90520-25046×4iLN167,172,RZN169,174200006-200108

main90520-25047×4iLN167,172,RZN169,174200006-200108

main90520-25048×4iLN167,172200108-200407

main90520-25049×4iLN167,172,RZN169,174200006-200108

main90520-25050×4iRZN169,174200108-200308

main90520-25051×4iRZN169,174200108-200308

main90520-25052×4iRZN169,174200108-200308

main90520-25053×4iLN167,172,RZN169,174200006-200108

main90520-25054×4iLN167,172200108-200407

main90520-25055×4iRZN169,174200108-200308

main90520-25056×4iLN167,172,RZN169,174200006-200108

main90520-25057×4iLN167,172,RZN169,174200006-200108

main90520-25058×4iRZN169,174200108-200308

main90520-26038×4iLN16#,17#,RZN167199708-199712

main90520-26040×4iLN16#,17#,RZN167199708-199712

main90520-26041×4iLN16#,17#,RZN167199708-199712

main90520-26042×4iLN16#,17#,RZN167199708-199712

main90520-26043×4iLN16#,17#,RZN167199708-199712

main90520-26044×4iLN16#,17#,RZN167199708-199712

main90520-26045×4iLN16#,17#,RZN167199708-199712

main90520-26046×4iLN16#,17#,RZN167199708-199712

main90520-26050×4iLN16#,17#,RZN16#,174199712-200006

main90520-26051×4iLN16#,17#,RZN16#,174199712-200006

main90520-26052×4iLN16#,17#,RZN16#,174199712-200006

main90520-26053×4iLN16#,17#,RZN16#,174199712-200006

main90520-26054×4iLN16#,17#,RZN16#,174199712-200006

main90520-26055×4iLN16#,17#,RZN16#,174199712-200006

main90520-26056×4iLN16#,17#,RZN16#,174199712-200006

main90520-26057×4iLN16#,17#,RZN16#,174199712-200006

main90520-26058×4iLN16#,17#,RZN16#,174199712-200006

main90520-26059×4iLN16#,17#,RZN16#,174199712-200006

main90520-26062×4iLN16#,17#,RZN16#,174199806-200006

main90520-26063×4iLN16#,17#,RZN16#,174199806-200006

main90520-26064×4iLN16#,17#,RZN16#,174199806-200006

main90520-26065×4iLN16#,17#,RZN16#,174199806-200006

main90520-26066×4iLN16#,17#,RZN16#,174199806-200006

main90520-26067×4iLN16#,17#,RZN16#,174199806-200006

main90520-26068×4iLN16#,17#,RZN16#,174199806-200006

main90520-26069×4iLN16#,17#,RZN16#,174199806-200006

37402CBEARING, FRONT PROPELLER SHAFT UNIVERSAL JOINT SPIDER

main37402-30011×4iLN165,170,RZN169,174; LN167,172,RZN167199708-200108

main37402-30021×4iLN167,172,RZN169,174200108-200306

37701COVER SUB-ASSY, PROPELLER SHAFT DUST

main37701-35071iLN167,172,RZN167199708-200108

main37701-35110iLN165,170,RZN169,174199708-200108

37714STAY, PROPELLER SHAFT DUST COVER

main37714-35051iRZN169,174200108-200308

9011908167

main90119-08167

9011910046

main90119-10046

9041606004

main90416-06004

9041606007

main90416-06007

9041606008

main90416-06008

9645100600

main96451-00600

20 parts on this diagram · 7 diagrams in section
