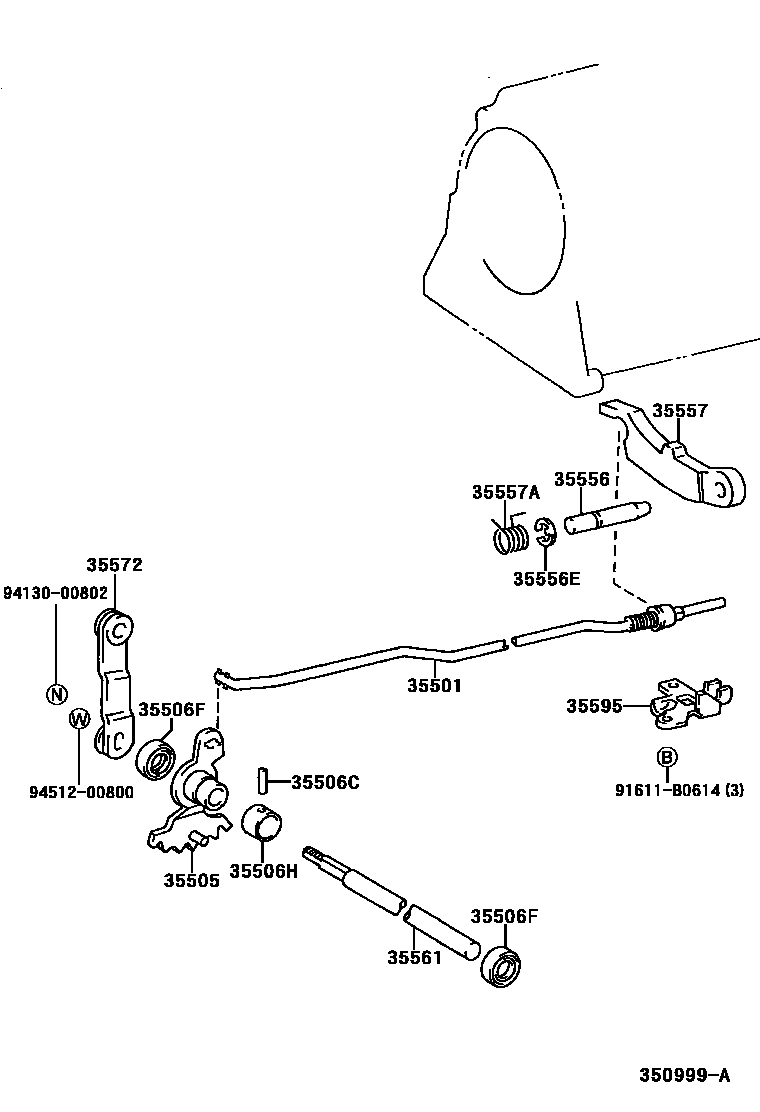

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340F,A343F 0002 1A44D 0003 1A343F 0004 1A340F 0005 1A44D

35501ROD SUB-ASSY, PARKING LOCK

main35501-22020iRZN147,152..ATM199708-200108

main35501-60010iLN165,170,RZN169,174199708-200108

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22040iRZN147,152..ATM200108-200308

main35505-30020iRZN169,174200102-200108

main35505-30021iRZN169,174199908-200102

main35505-50010iLN165,170199708-199908

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iRZN147,152,169,174..ATM200108-200308

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003×2iRZN147,152..ATM199708-200108

main90311-12002×2iLN165,170,RZN169,174199708-200108

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iRZN147,152..ATM199708-200108

main90560-20006iRZN169,174200108-200302

main90560-20025iRZN147,152,169,174..ATM200302-200308

35556SHAFT, PARKING LOCK PAWL

main35556-26010iRZN147,152..ATM199708-200108

main35556-30020iRZN169,174200108-200308

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iLN165,170,RZN147,152,169,174..ATM199708-200108

35557PAWL, PARKING LOCK

main35557-26020iRZN147,152..ATM200108-200308

main35557-60020iRZN169,174200108-200308

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iLN165,170,RZN169,174199708-200108

main90508-25001iRZN147,152..ATM199708-200108

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iLN165,170,RZN169,174199708-200108

main35561-40010iRZN147,152..ATM200108-200308

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-35020iLN165,170,RZN169,174199708-200108

main35572-35030iRZN147,152..ATM200108-200308

35595BRACKET, PARKING LOCK PAWL

main35595-40010iRZN147,152..ATM199708-200108

main35595-60010iRZN169,174200108-200308

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

15 parts on this diagram · 5 diagrams in section
