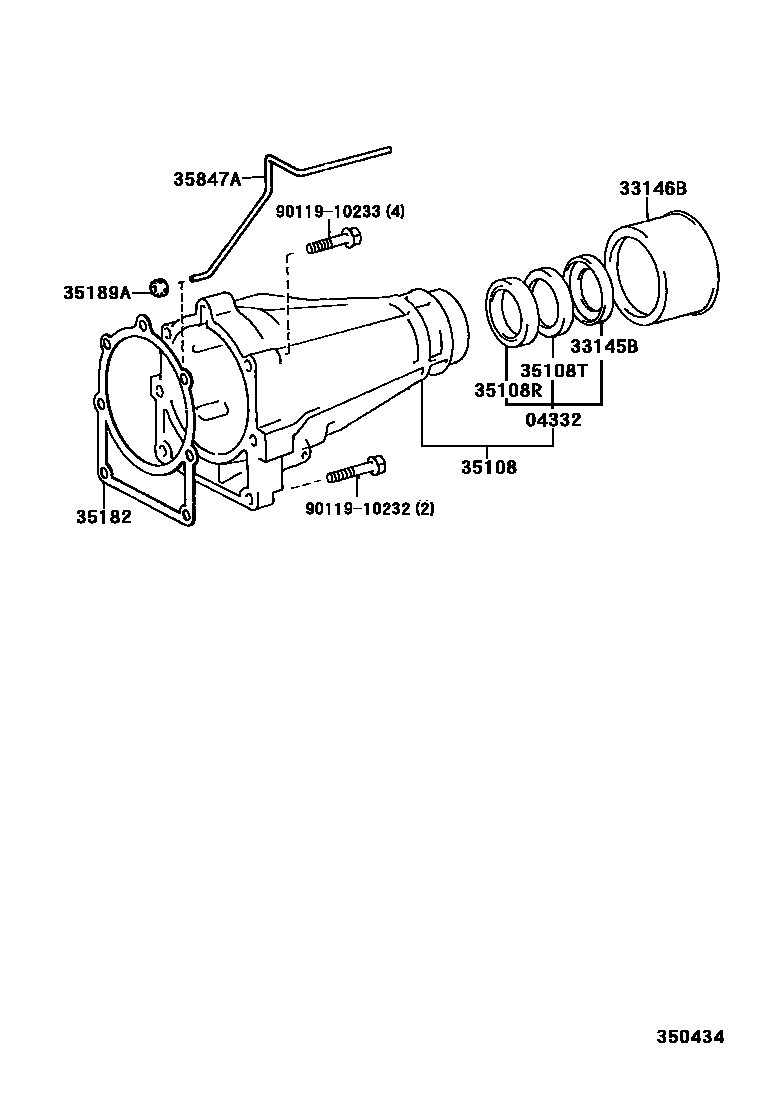

EXTENSION HOUSING (ATM)

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30030iRZN147,152..ATM199708-200108

33145BRETAINER, EXTENSION HOUSING DUST SEAL

main33145-30010iRZN147,152..ATM199708-200108

33146BDEFLECTOR, EXTENSION HOUSING DUST

main33146-30010iRZN147..ATM199708-199908

main33146-30020iRZN147,152..ATM199908-200108

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-20060iRZN147,152..ATM199708-200108

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38032iRZN147,152..ATM199708-200108

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iRZN147,152..ATM199708-200108

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iRZN147,152..ATM199708-200108

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iRZN147,152..ATM199708-200108

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iRZN147,152..ATM199708-200108

9011910232

main90119-10232

9011910233

main90119-10233

11 parts on this diagram · 1 diagram in section
