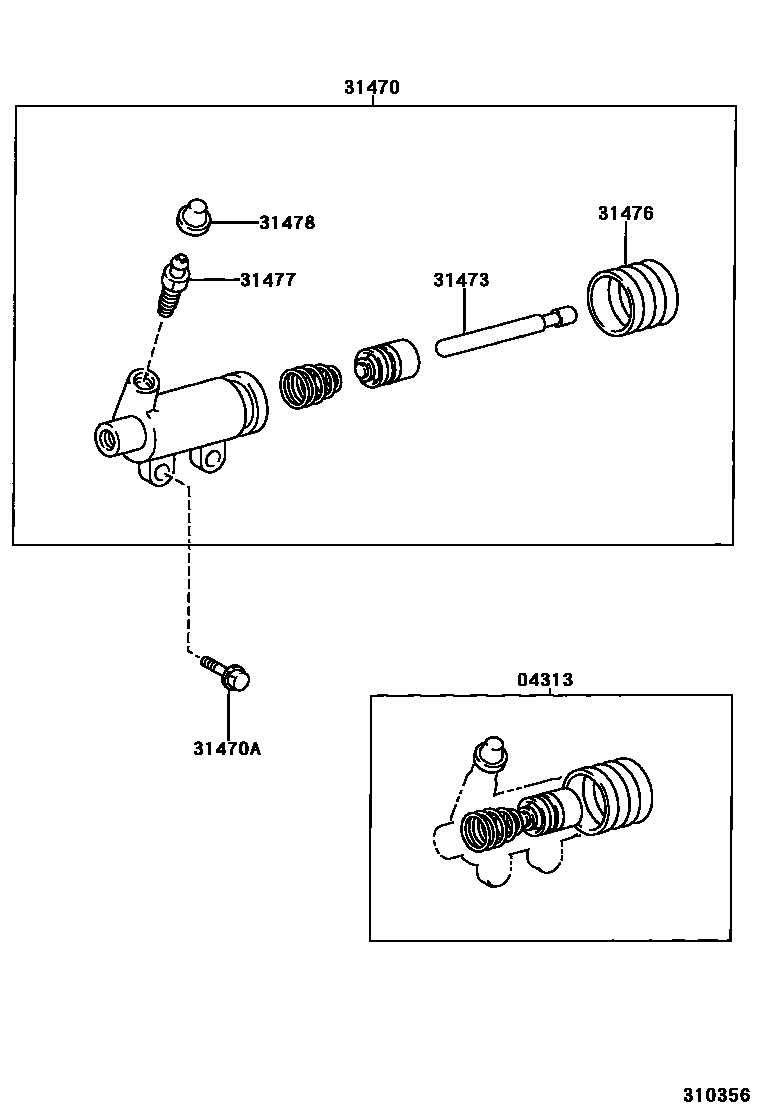

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iLN147,167,172,RZN147..MTM200108-200407

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-30222iLN147,167,172200108-200407

main31470-35130iRZN147..MTM200108-200308

sub31470-43010

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iLN147,167,172,RZN147,167..MTM199708-200108

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iRZN147..MTM200108-200308

main31473-35050iLN147,167,172199708-200108

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLN147,167,172,RZN147,167..MTM199708-200108

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLN147,167,172,RZN147,167..MTM199708-200108

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLN147,167,172,RZN147,167..MTM199708-200108

7 parts on this diagram · 2 diagrams in section
