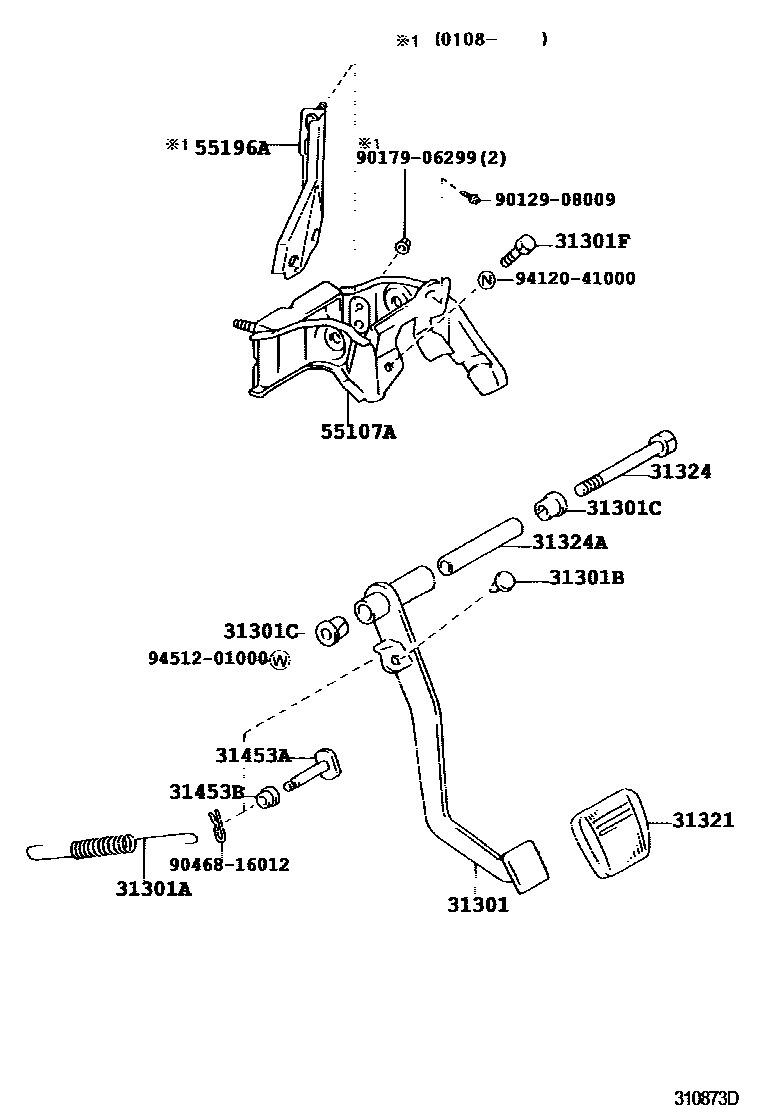

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-35240iRZN167199708-199908

main31310-35080iLN147,167,172,RZN147..MTM200108-200407

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14030iLN147,167,172,RZN147,167..MTM199708-200108

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iRZN167199708-199908

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iLN147,167,172,RZN147,167..MTM199708-200108

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iLN147,167,172,RZN147,167..MTM199708-200108

31321PAD, CLUTCH PEDAL

main31321-14020iRZN167199708-199908

31324SHAFT, CLUTCH PEDAL

main90101-10177iLN147,167,172,RZN147,167..MTM199708-200108

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10082iLN147,167,172,RZN147,167..MTM199708-200108

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-34010iLN147,167,172,RZN147,167..MTM199708-200108

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iLN147,167,172,RZN147,167..MTM199708-200108

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-35100iLN147,167,172,RZN147,167..MTM199708-200108

main55107-35130iRZN147..MTM200108-200308

55196ABRACKET, CLUTCH START SWITCH MOUNTING

main55196-60020iRZN147..MTM200108-200308

9012908009

main90129-08009

9017906299

main90179-06299

9046816012

main90468-16012

9412041000

main94120-41000

9451201000

main94512-01000

17 parts on this diagram · 3 diagrams in section
