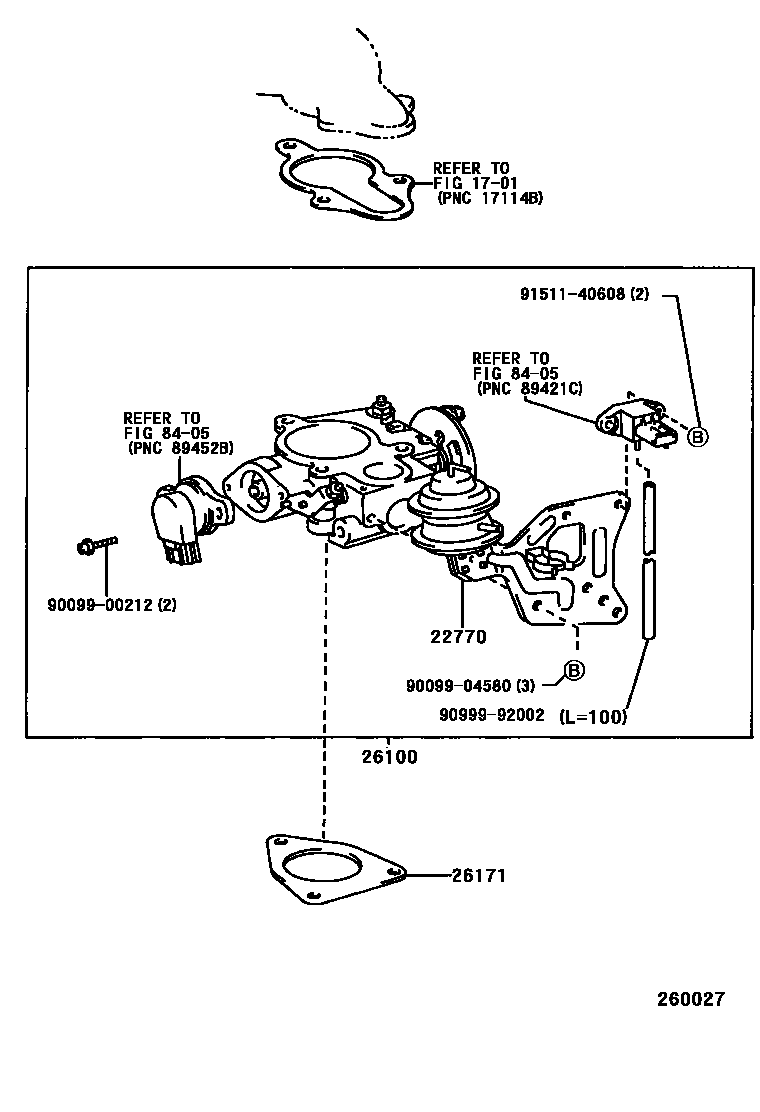

VENTURI

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

22770ACTUATOR, IDEL UP

main26133-54220i2LTE..LN165,170199708-199908

main26133-54260i5L..LN147,167,172199708-200108

26100VENTURI ASSY

main26100-54221i2LTE..LN165,170199708-199908

main26100-54250i5L..LN147,167,172199708-200108

26171GASKET, VENTURI

main17116-54021i2LTE,5L..LN147,16#,17#199708-200008

main17116-54030i5L..LN147,167,172200008-200108

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9009900212

main90099-00212

9009904580

main90099-04580

9099992002

main90999-92002

9151140608

main91511-40608

9 parts on this diagram · 2 diagrams in section
