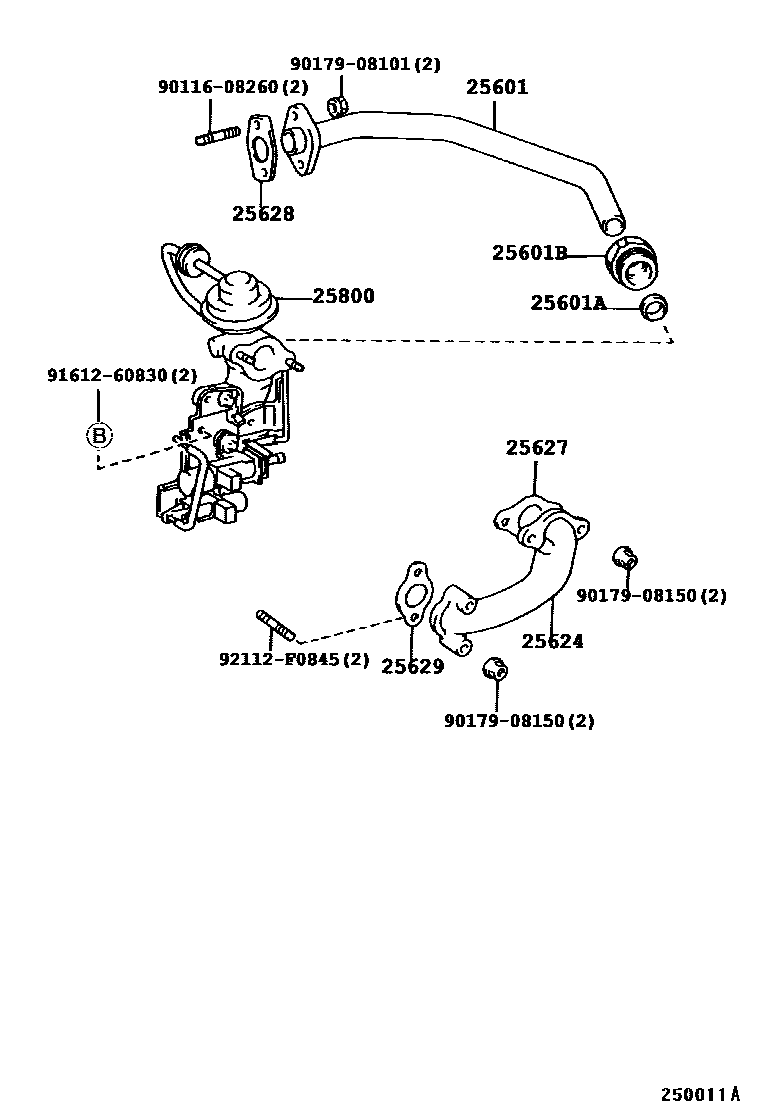

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-54061i5L..LN147,167,172199708-200108

main25601-54070i2LTE..LN165,170199708-199908

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-25001i2LTE,5L..LN147,16#,17#199708-200108

25601BNUT, UNION, EGR PIPE, NO.1

main90402-33001i2LTE,5L..LN147,16#,17#199708-200108

25624ADAPTER, EGR VALVE

main25624-54040i2LTE..LN165,170199708-199908

main25624-54051i5L..LN147,167,172199708-200108

25627GASKET, EGR VALVE

main25627-54011i2LTE,5L..LN147,16#,17#199708-200108

25628GASKET, EGR INLET

main25628-54012i2LTE,5L..LN147,16#,17#199708-200108

25629GASKET, EGR VALVE ADAPTER

main25629-54011i2LTE,5L..LN147,16#,17#199708-200108

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-54170i2LTE..LN165,170199708-199802

main25800-54180i5L..LN147,167,172199708-200108

main25800-54190i2LTE..LN165,170199802-199908

9011608260

main90116-08260

9017908101

main90179-08101

9017908150

main90179-08150

9161260830

main91612-60830

92112F0845

main92112-F0845

13 parts on this diagram · 2 diagrams in section
