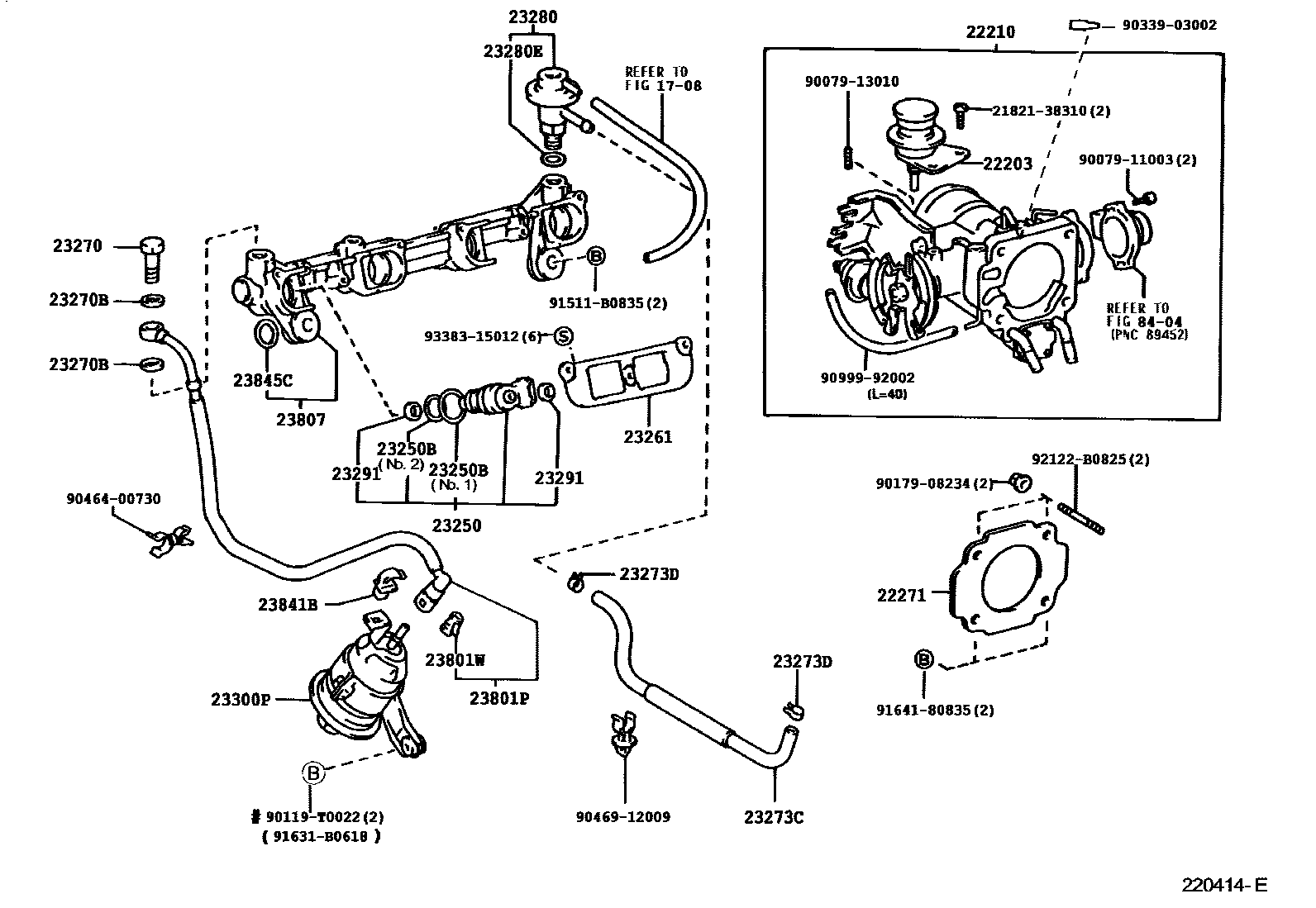

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1708VACUUM PIPING

→ Go to FIG 17-08

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-75121i1RZE..RZN147,152200108

22210BODY ASSY, THROTTLE

main22210-75121i1RZE..RZN147,152200108-200308

main22210-75220i3RZFE..RZN169,174200108-200308

22271GASKET, THROTTLE BODY

main22271-75010i1RZE..RZN147,152,167199708-200108

main22271-75020i3RZFE..RZN169,174199908-200108

23250INJECTOR ASSY, FUEL

main23209-79095×4i3RZFE..RZN169,174199908-200108

main23209-79115×4i1RZE..RZN147,152200108-200308

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i3RZFE..RZN169,174200108-200308

main90301-14006×4i1RZE..RZN147,152200108-200308

main90301-17007×4i1RZE..RZN147,152,167199708-200108

23261COVER, INJECTOR

main23261-75020×2i1RZE..RZN147,152,167199708-200108

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i1RZE,3RZFE..RZN147,152,16#,174199708-200108

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010×2i1RZE,3RZFE..RZN147,152,16#,174199708-200108

23273CHOSE, FUEL, NO.2

main23273-75080i1RZE..RZN147,152,167199708-200108

main23273-75090i3RZFE..RZN169,174199908-200108

23273DCLIP(FOR FUEL HOSE NO.2)

main96135-51100×2i1RZE,3RZFE..RZN147,152,16#,174199708-200108

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75010i1RZE..RZN147,152,167199708-200108

main23280-75020i3RZFE..RZN169,174200108-200308

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07024i3RZFE..RZN169,174199908-200108

main90301-09002i1RZE..RZN147,152,167199708-200108

23291INSULATOR, INJECTOR VIBRATION

main23291-73010×4i3RZFE..RZN169,174199908-200108

main23291-75020×8i1RZE..RZN147,152200108-200308

23300PFILTER, FUEL(FOR EFI)

main23300-75100i1RZE,3RZFE..RZN147,152,169,174200108-200308

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-75060i1RZE..RZN147,152,167199708-200108

main23801-75080i3RZFE..RZN169,174199908-200108

23801WCLIP, FUEL TUBE CONNECTOR

main90923-07010i1RZE,3RZFE..RZN147,152,16#,174199708-200108

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-75021i3RZFE..RZN169,174200108-200309

main23807-75030i1RZE..RZN147,152200108-200308

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main90469-12012i1RZE,3RZFE..RZN147,152,16#,174199708-200108

23845CINSULATOR, FUEL PIPE

main23845-75010×4i1RZE..RZN147,152,167199708-200108

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

9007911003

main90079-11003

9007913010

main90079-13010

90119T0022

main90119-T0022

9017908234

main90179-08234

9033903002

main90339-03002

9046400730

main90464-00730

9046912009

main90469-12009

9099992002

main90999-92002

91511B0835

main91511-B0835

91631B0618

main91631-B0618

9164180835

main91641-80835

92122B0825

main92122-B0825

9338315012

main93383-15012

35 parts on this diagram · 4 diagrams in section
