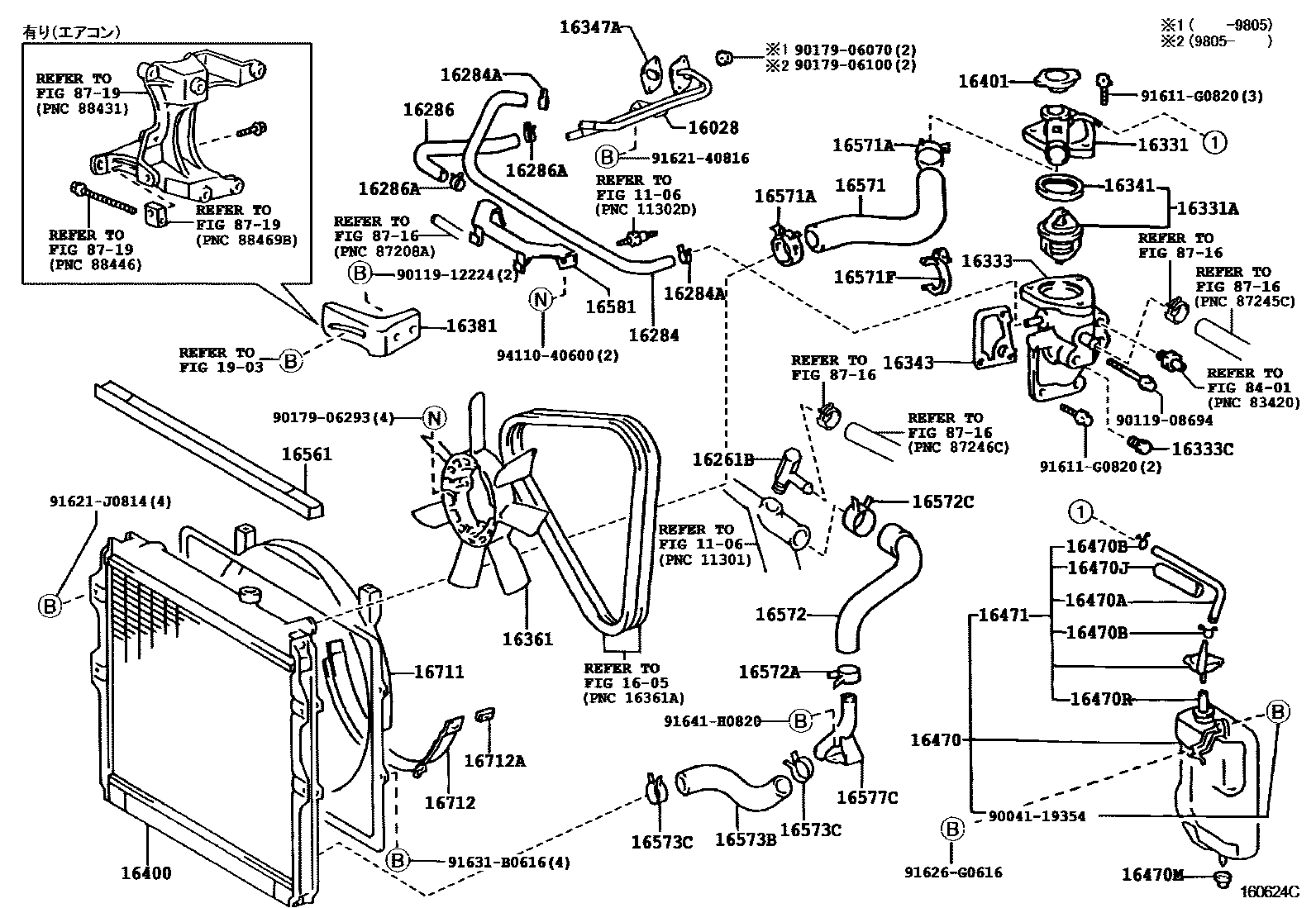

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16028PIPE SUB-ASSY, TURBO WATER, NO.2

main16028-54030i2LTE..LN165,170199708-199908

1605V-BELT

→ Go to FIG 16-05

16261HOSE, WATER BY-PASS

main16261-54120i5L..LN147,167,172199708-199908

main16261-54121i5L..LN147,167,172199908-200108

main16261-75040i3RZFE..RZN169,174199908-200108

16261BUNION(FOR WATER BY-PASS HOSE)

main87251-89113i2LTE..LN165,170199708-199908

main90080-34003i2LTE..LN165,170199708-199908

main90404-54037i5L..LN147,167,172200108-200407

16284HOSE, TURBO WATER, NO.1

main16284-54021i2LTE..LN165,170199708-199908

16284ACLIP(FOR TURBO WATER HOSE NO.1)

main90467-15022×2i2LTE..LN165,170199708-199908

16286HOSE, TURBO WATER, NO.3

main16286-54020i2LTE..LN165,170199708-199908

16286ACLIP(FOR TURBO WATER HOSE NO.3)

main90467-15022×2i2LTE..LN165,170199708-199908

16331OUTLET, WATER

main16304-75010i1RZE..RZN147,152200108-200308

main16331-0W010i3RZFE..RZN169,174200108-200308

main16331-54180i2LTE..LN165,170199708-199908

main16331-54210i5L..LN147,167,172199708-200108

16331ATHERMOSTAT

main16340-54010i5L..LN147,167,172200108-200407

main16340-54040i2LTE..LN165,170199708-199908

main90916-03101i1RZE..RZN147,167199708-199709

main90916-03120i1RZE,3RZFE..RZN147,152,16#,174199709-200108

16333HOUSING, WATER OUTLET

main16333-54113i5L..LN147,167,172199708-200108

main16333-54270i2LTE..LN165,170199708-199908

16333CPLUG, W/HEAD TAPER SCREW

main90341-16094i2LTE..LN165,170199708-199908

16341GASKET, WATER OUTLET

main16341-05020i5L..LN147,167,172200301-200407

main16341-35010i2LTE,5L..LN147,16#,17#199708-200108

main16341-75010i1RZE..RZN147,152200108-200308

main16341-75020i3RZFE..RZN169,174200108-200308

16343GASKET, WATER OUTLET HOUSING

main16343-54040i2LTE,5L..LN147,16#,17#199708-200108

16347AGASKET(FOR TURBO WATER PIPE)

main16347-42020i2LTE..LN165,170199708-199908

16361FAN

main16361-38010i1RZE..RZN147,152,167199708-200108

main16361-54111i5L..LN147,167,172200108-200407

main16361-75020i3RZFE..RZN169,174199908-200108

16381BAR, FAN BELT ADJUSTING

main16381-54120i2LTE,5L..LN147,16#,17#199708-199809

main16381-54121i5L..LN147,167,172200108-200407

main16381-75040i1RZE..RZN147,167199708-199908

main16381-75050i1RZE,3RZFE..RZN147,152,169,174200108-200308

16400RADIATOR ASSY

main16400-5B590i5L..LN147200108-200407

main16400-5B610i5L..LN167,172200108-200407

main16400-5B630i2LTE..LN165,170199708-199908

main16400-75230i1RZE..RZN147..MTM199708-200108

main16400-75240i1RZE..RZN147,152..ATM199708-200108

main16400-75270i3RZFE..RZN169,174200108-200308

16401CAP SUB-ASSY, RADIATOR

main16401-5B440i2LTE..LN165,170199708-199908

main16401-5B630i1RZE,3RZFE..RZN147,152,169,174200108-200308

main16401-62100i1RZE..RZN147,167; 5L..LN147,167,172199708-199904

16470TANK ASSY, RADIATOR RESERVE

main16470-54350i2LTE..LN165,170199708-199908

main16470-75060i1RZE..RZN147,152,167; 5L..LN147,167,172199708-200108

main16470-75070i3RZFE..RZN169,174199908-200108

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12066i3RZFE..RZN169,174199908-200108

main90445-12067i1RZE..RZN147,152,167; 5L..LN147,167,172199708-200108

main90445-12078i2LTE..LN165,170199708-199908

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i1RZE,3RZFE..RZN147,152,16#,174; 2LTE,5L..LN147,16#,17#199708-200108

16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)

main16472-70070i2LTE..LN165,170199708-199908

main16477-11110i1RZE,3RZFE..RZN147,16#,174199708-200108

main16478-46020i1RZE..RZN147,152,167; 5L..LN147,167,172199708-200108

16470MGROMMET

main90480-25025i1RZE,3RZFE..RZN147,152,16#,174; 2LTE,5L..LN147,16#,17#199708-200108

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i1RZE,3RZFE..RZN147,152,16#,174; 2LTE,5L..LN147,16#,17#199708-200108

16471CAP SUB-ASSY, RESERVE TANK

main16405-54330i2LTE..LN165,170199708-199908

main16405-75050i1RZE..RZN147,152,167; 5L..LN147,167,172199708-200108

main16405-75070i3RZFE..RZN169,174199908-200108

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-54010i5L..LN147,167200108-200407

main16561-54050i5L..LN172200108-200407

16571HOSE, RADIATOR, INLET

main16571-54490i5L..LN147,167,172199708-200108

main16571-54510i2LTE..LN165,170199708-199908

main16571-75090i1RZE..RZN147,152,167199708-200108

main16571-75100i3RZFE..RZN169,174199908-200108

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005×2i1RZE,3RZFE..RZN147,152,16#,174; 2LTE,5L..LN147,16#,17#199708-200108

16571FCLAMP OR CLIP(FOR WATER HOSE)

main90929-01230i2LTE..LN165,170199708-199908

16572HOSE, RADIATOR, OUTLET

main16572-54570i2LTE,5L..LN147,16#,17#199708-200108

main16572-75120i1RZE..RZN147,152,167199708-200108

main16572-75130i3RZFE..RZN169,174199908-200108

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37005×2i1RZE,3RZFE..RZN147,152,16#,174; 2LTE,5L..LN147,16#,17#199708-200108

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90466-41008i5L..LN147,167,172200108-200407

main90467-41006i2LTE,5L..LN147,16#,17#199708-199908

main90467-41007i5L..LN147,167,172199908-200108

16573BHOSE, RADIATOR, NO.3

main16573-54120i5L..LN147199708-200108

main16573-54160i5L..LN167,172200108-200407

main16573-75020i1RZE,3RZFE..RZN147,152,16#,174199708-200108

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-37005×2i1RZE,3RZFE..RZN147,152,16#,174; 2LTE,5L..LN147,16#,17#199708-200108

16577CPIPE, RADIATOR

main16577-54200i5L..LN147200108-200407

main16577-54210i5L..LN167,172200108-200407

main16577-75020i1RZE,3RZFE..RZN147,152,169,174200108-200308

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-54020i2LTE..LN165,170199708-199908

main16581-75010i3RZFE..RZN169,174199908-200108

16711SHROUD, FAN

main16711-54640i2LTE,5L..LN16#,17#199708-200108

main16711-54660i5L..LN147200108-200407

main16711-75080i1RZE..RZN147,152,167199708-200108

main16711-75090i3RZFE..RZN169,174199908-200108

16712SHROUD, FAN, NO.2

main16712-54390i5L..LN147,167,172200108-200407

main16712-75050i1RZE..RZN147,152,167199708-200108

main16712-75060i3RZFE..RZN169,174200108-200308

16712ACLIP

main90468-06092×2i1RZE,3RZFE..RZN147,152,169,174200108-200308

1903ALTERNATOR

→ Go to FIG 19-03

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

9004119354

main90041-19354

9011908694

main90119-08694

9011912224

main90119-12224

9017906070

main90179-06070

9017906100

main90179-06100

9017906293

main90179-06293

91611G0820

main91611-G0820

9162140816

main91621-40816

91621J0814

main91621-J0814

91626G0616

main91626-G0616

91631B0616

main91631-B0616

91641H0820

main91641-H0820

9411040600

main94110-40600

58 parts on this diagram · 9 diagrams in section
