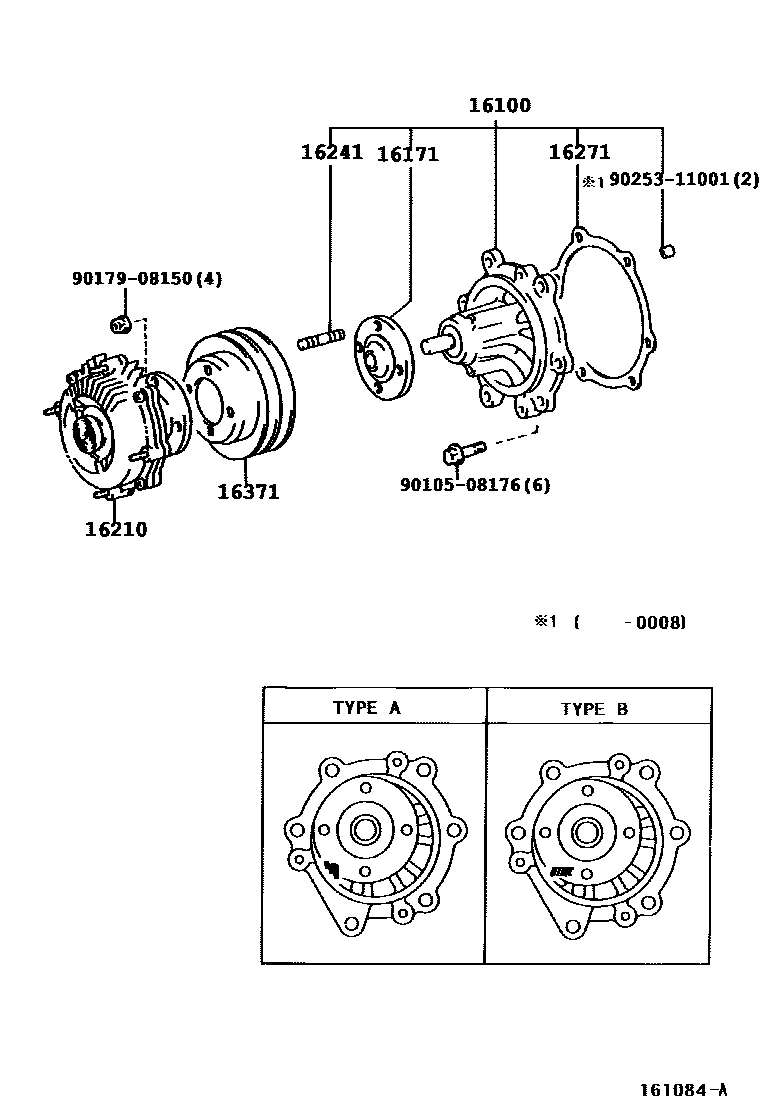

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-09092i5L..LN147,167,172200108-200407

sub16100-59257

main16100-09102i5L..LN147,167,172200108-200407

sub16100-59257

main16100-59255i5L..LN147,167,172199708-200008

sub16100-59256

main16100-59257i5L..LN147,167,172200108-200407

main16100-59257i5L..LN147,167,172200008-200108

main16100-79255i3RZFE..RZN169,174199908-200308

sub16100-79445

main16100-79265i1RZE..RZN147,152199708-200308

sub16100-79455

16171SEAT, WATER PUMP PULLEY

main16171-75020i2LTE,5L..LN147,16#,17#199708-200407

16210COUPLING ASSY, FLUID

main16210-54210i2LTE,5L..LN147,16#,17#199708-200407

main16210-75010i1RZE..RZN147,152,167199708-200108

main16210-75060i3RZFE..RZN169,174199908-200308

main16210-75070i1RZE..RZN147,152200108-200308

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main92122-60818i2LTE,5L..LN147,16#,17#199708-200407

16271GASKET, WATER PUMP

main16271-54020i2LTE,5L..LN147,16#,17#199708-200008

sub16271-54030

main16271-54030i5L..LN147,167,172200008-200407

16371PULLEY, FAN

main16371-05010i5L..LN147,167,172200304-200407

main16371-54030i5L..LN147,167,172200304-200407

main16371-54030i2LTE,5L..LN147,16#,17#199708-200304

main16371-75010i1RZE..RZN147,152,167199708-200108

sub16371-75020

main16371-75020i1RZE..RZN147,152200108-200308

main16371-75030i3RZFE..RZN169,174199908-200308

9010508176

main90105-08176

9017908150

main90179-08150

9025311001

main90253-11001

9 parts on this diagram · 3 diagrams in section
