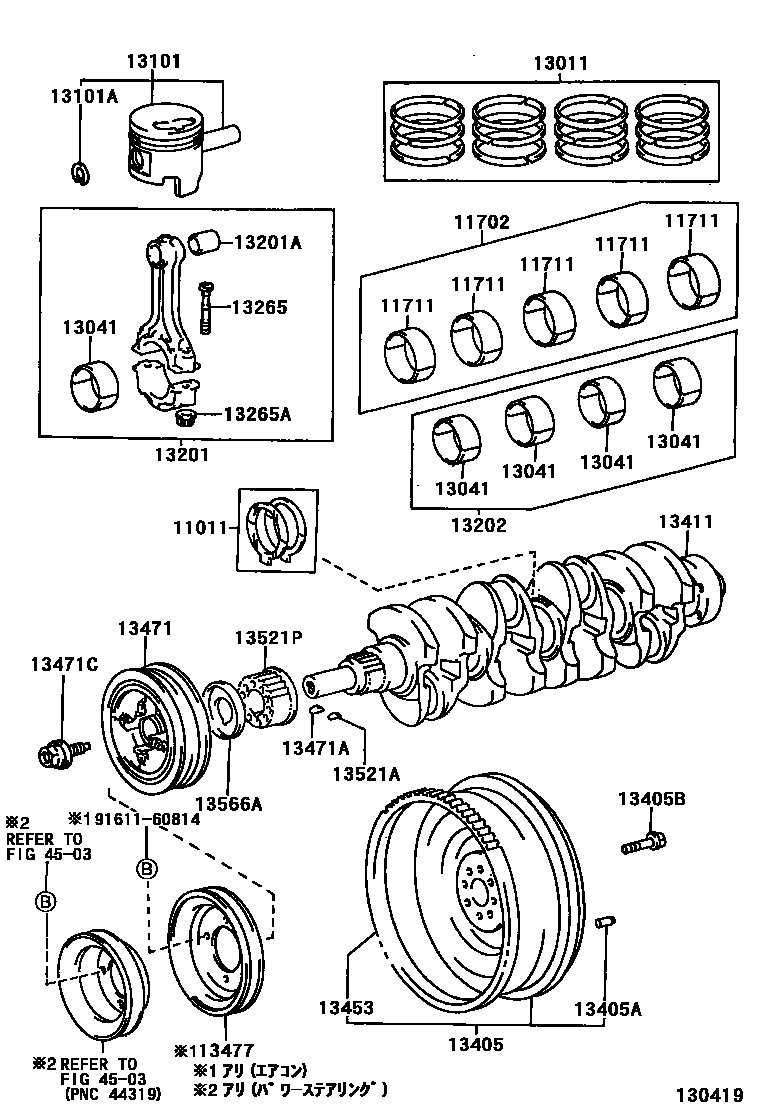

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-54020i2LTE..LN165,170199708-199908

main11011-75010i1RZE,3RZFE..RZN147,152,169,174200108-200407

main11012-54020i5L..LN147,167,172199708-200108

main11013-54020i2LTE..LN165,170199708-199908

11702BEARING SET, CRANKSHAFT

main11704-54061i5L..LN147,167,172199708-200108

main11704-54080i5L..LN147,167,172200108-200407

main11704-75020i1RZE..RZN147,167199708-199904

main11704-75021i1RZE,3RZFE..RZN147,152,16#,174199904-200108

main11705-54061i5L..LN147,167,172199708-200108

main11705-54080i5L..LN147,167,172200108-200407

11711BEARING, CRANKSHAFT

main11071-75020-01×3i1RZE..RZN147,167199708-199904

main11071-75020-02×3i1RZE..RZN147,167199708-199904

main11071-75020-03×3i1RZE..RZN147,167199708-199904

main11071-75021-01×3i1RZE,3RZFE..RZN147,152,16#,174199904-200108

main11071-75021-02×3i1RZE,3RZFE..RZN147,152,16#,174199904-200108

main11071-75021-03×3i1RZE,3RZFE..RZN147,152,169,174200108-200308

main11701-54061-01×5i2LTE,5L..LN147,16#,17#199708-200108

main11701-54061-02×5i2LTE,5L..LN147,16#,17#199708-200108

main11701-54061-03×5i2LTE,5L..LN147,16#,17#199708-200108

main11701-54080-01×5i5L..LN147,167,172200108-200407

MARK 1

main11701-54080-02×5i5L..LN147,167,172200108-200407

MARK 2

main11701-54080-03×5i5L..LN147,167,172200108-200407

MARK 3

main11701-75020-01×2i1RZE..RZN147,167199708-199904

main11701-75020-02×2i1RZE..RZN147,167199708-199904

main11701-75020-03×2i1RZE..RZN147,167199708-199904

main11701-75021-01×2i1RZE,3RZFE..RZN147,152,169,174200108-200308

main11701-75021-02×2i1RZE,3RZFE..RZN147,152,16#,174199904-200108

main11701-75021-03×2i1RZE,3RZFE..RZN147,152,169,174200108-200308

13011RING SET, PISTON

main13011-54100i2LTE..LN165,170199708-199908

main13011-54130i5L..LN147,167,172199708-200108

main13011-75041i3RZFE..RZN169,174200108-200308

main13011-75080i1RZE..RZN147,152199708-200108

main13013-54100i2LTE..LN165,170199708-199908

main13013-54130i5L..LN147,167,172199708-200108

main13013-75041i3RZFE..RZN169,174200108-200308

main13013-75080i1RZE..RZN147,152200108-200308

main13014-54100i2LTE..LN165,170199708-199908

main13015-54100i2LTE..LN165,170199708-199908

13041BEARING, CONNECTING ROD

main13041-54041-01×4i2LTE,5L..LN147,16#,17#199708-200108

main13041-54041-02×4i5L..LN147,167,172200108-200407

MARK 2

main13041-54041-03×4i2LTE,5L..LN147,16#,17#199708-200108

main13041-75021-04×4i1RZE,3RZFE..RZN147,152,169,174199708-200108

main13041-75021-05×4i1RZE..RZN167199708-199908

main13041-75021-06×4i1RZE,3RZFE..RZN147,152,169,174200108-200308

13101PISTON SUB-ASSY, W/PIN

main13101-54091-01×4i2LTE..LN165,170199708-199908

main13101-54091-02×4i2LTE..LN165,170199708-199908

main13101-54091-03×4i2LTE..LN165,170199708-199908

main13101-54120-01×4i5L..LN147,167,172199708-200108

main13101-54120-02×4i5L..LN147,167,172199708-200108

main13101-54120-03×4i5L..LN147,167,172200108-200407

main13101-75041×4i3RZFE..RZN169,174199908-200108

main13101-75090×4i1RZE..RZN167199708-199908

main13103-54091×4i2LTE..LN165,170199708-199908

main13103-54120×4i5L..LN147,167,172199708-200108

main13103-75041×4i3RZFE..RZN169,174199908-200108

main13103-75090×4i1RZE..RZN147,152199708-200108

main13104-54091×4i2LTE..LN165,170199708-199908

main13105-54091×4i2LTE..LN165,170199708-199908

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-28003×8i1RZE,3RZFE..RZN147,152,169,174199708-200108

main90521-31001×8i5L..LN147,167,172200108-200407

13201ROD SUB-ASSY, CONNECTING

main13201-59105×4i2LTE,5L..LN147,16#,17#199708-199803

main13201-59106×4i2LTE..LN165,170199803-199908

main13201-79167×4i1RZE..RZN147,152,167199708-200108

main13201-79205×4i3RZFE..RZN169,174199908-200108

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73115×4i5L..LN147,167,172200108-200407

main90999-73129×4i1RZE,3RZFE..RZN147,152,169,174200108-200308

13202BEARING SET, CONNECTING ROD

main13204-54041i5L..LN147,167,172199708-200108

main13204-75021i1RZE,3RZFE..RZN147,152,169,174200108-200308

main13205-54041i5L..LN147,167,172200108-200407

13265BOLT, CONNECTING ROD

main13265-54020×8i2LTE,5L..LN147,16#,17#199708-199803

main13265-54021×8i5L..LN147,167,172200108-200407

main13265-75030×8i1RZE,3RZFE..RZN147,152,169,174200108-200308

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-09009×8i1RZE,3RZFE..RZN147,152,16#,174199708-200108

main90179-10123×8i2LTE,5L..LN147,16#,17#199708-200108

13405FLYWHEEL SUB-ASSY

main13405-05070i5L..LN147200204-200407

main13405-54080i5L..LN147199708-200108

main13405-75030i1RZE..RZN147,167..MTM199708-200108

main13450-54050i5L..LN167,172199708-200108

main13450-54051i5L..LN167,172200209-200407

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i1RZE..RZN147,167..MTM; 5L..LN147199708-200108

13405BBOLT, FLYWHEEL SETTING

main90105-10207×10i1RZE..RZN147,167..MTM199708-200108

main90105-12109×8i5L..LN147199708-200108

main90105-12172×8i5L..LN167,172199708-200108

13411CRANKSHAFT

main13401-54061i5L..LN147,167,172199708-200108

main13401-54070i2LTE..LN165,170199708-199908

main13401-54100i5L..LN147,167,172200209-200407

main13411-75020i3RZFE..RZN169,174199908-200108

main13411-75900i1RZE..RZN147,152,167199708-200108

13453GEAR, FLYWHEEL RING

main13453-05010i5L..LN147200301-200407

main13453-0W010i1RZE..RZN147..MTM199708-200108

main13453-20010i1RZE..RZN147..MTM200108-200407

main13453-54010i5L..LN147199708-200108

13471PULLEY, CRANKSHAFT

main13408-54090i2LTE,5L..LN147,16#,17#199708-200108

main13408-75030i1RZE,3RZFE..RZN147,152,169,174200108-200308

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i1RZE,3RZFE..RZN147,152,169,174200108-200308

main95161-30622i2LTE,5L..LN147,16#,17#199708-200108

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16041i1RZE,3RZFE..RZN147,152,169,174200108-200308

main90901-19028i2LTE,5L..LN147,16#,17#199708-200108

13477PULLEY, CRANKSHAFT, NO.2

main88451-26050i1RZE..RZN167199708-199908

main88451-35030i2LTE,5L..LN147,16#,17#199708-200108

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-75010i1RZE,3RZFE..RZN147,152,169,174200108-200308

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i1RZE,3RZFE..RZN147,152,169,174200108-200308

main95161-30622i2LTE,5L..LN147,16#,17#199708-200108

13521PPULLEY, CRANKSHAFT TIMING

main13521-54030i2LTE,5L..LN147,16#,17#199708-200108

13566AGUIDE, TIMING BELT

main13566-05010i5L..LN147,167,172200301-200407

main13566-54040i5L..LN147,167,172200108-200301

4503POWER STEERING TUBE

→ Go to FIG 45-03

9161160814

main91611-60814

27 parts on this diagram · 3 diagrams in section
