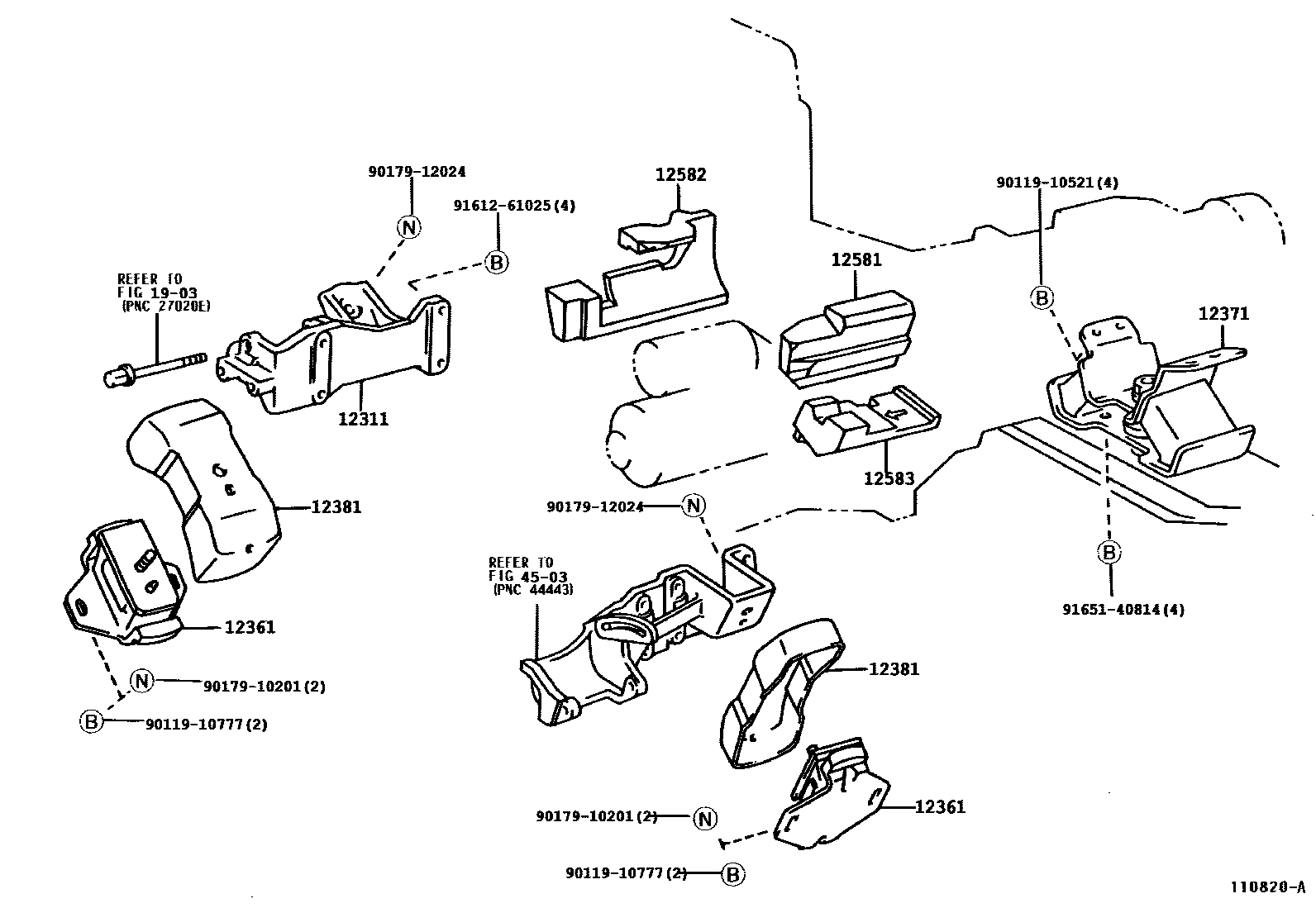

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54181i2LTE,5L..LN147,16#,17#199708-200108

main12311-75080i1RZE,3RZFE..RZN147,152,16#,174199708-200108

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35090×2i1RZE,3RZFE..RZN147,152,16#,174199708-200108

main12361-54111×2i5L..LN147200108-200407

main12361-54121×2i2LTE,5L..LN16#,17#199708-200108

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34030i5L..LN147200108-200407

main12371-54170i2LTE..LN165,170199708-199908

main12371-54180i5L..LN167,172199708-200108

main12371-75050i1RZE..RZN147..MTM200108-200308

main12371-75060i1RZE..RZN147,152..ATM200108-200308

main12371-75070i1RZE..RZN167199708-199908

main12371-75110i3RZFE..RZN169,174200108-200308

12381STABILIZER, ENGINE MOUNTING

main12381-54010×2i5L..LN147200108-200407

main12381-54060×2i5L..LN167,172200108-200407

main12381-75020i1RZE,3RZFE..RZN147,152,169,174200108-200308

12581INSULATOR, CYLINDER BLOCK, NO.1

main12581-54010i2LTE,5L..LN147,16#,17#199708-200108

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-54021i2LTE,5L..LN147,16#,17#199708-200108

12583INSULATOR, CYLINDER BLOCK, NO.3

main12583-54030i2LTE,5L..LN147,16#,17#199708-200108

1903ALTERNATOR

→ Go to FIG 19-03

4503POWER STEERING TUBE

→ Go to FIG 45-03

9011910521

main90119-10521

9011910777

main90119-10777

9017910201

main90179-10201

9017912024

main90179-12024

9161261025

main91612-61025

9165140814

main91651-40814

15 parts on this diagram · 3 diagrams in section
