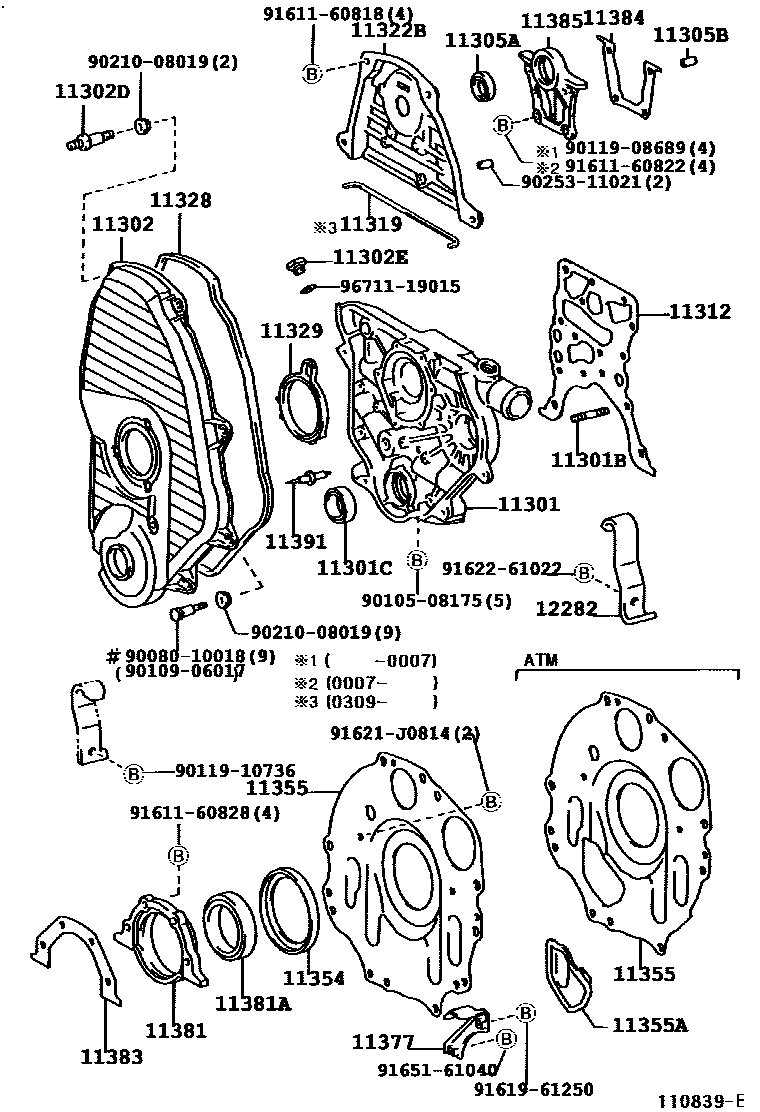

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-75021i3RZFE..RZN169,174199908-200108

main11301-75050i1RZE..RZN147,152200108-200308

main11311-54052i2LTE,5L..LN147,16#,17#199708-200108

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828×2i2LTE,5L..LN147,16#,17#199708-200108

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42031i2LTE,5L..LN147,16#,17#199708-200108

main90311-48014i1RZE,3RZFE..RZN147,152,16#,174199708-200009

main90311-48020i1RZE,3RZFE..RZN147,152,169,174200009-200108

main90311-48021i1RZE,3RZFE..RZN147,152,169,174200009-200108

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-54020i2LTE,5L..LN147,16#,17#199708-200108

11302DBOLT, STUD(FOR TIMING GEAR COVER)

main90116-06100×2i2LTE,5L..LN147,16#,17#199708-200108

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i5L..LN147,167,172200108-200407

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32019i2LTE,5L..LN147,16#,17#199708-200108

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main90253-11021×2i2LTE,5L..LN147,16#,17#199708-200108

11312GASKET, FRONT END PLATE

main11312-54021i2LTE,5L..LN147,16#,17#199708-200008

main11312-54040i5L..LN147,167,172200008-200108

11319GASKET, TIMING BELT COVER, NO.3

main11319-54010i5L..LN147,167,172200309-200407

11322BCOVER, TIMING BELT, NO.2

main11322-54031i2LTE,5L..LN147,16#,17#199708-200108

main11322-54032i5L..LN147,167,172200203-200312

main11322-54033i5L..LN147,167,172200312-200407

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-05010i5L..LN147,167,172200301-200407

main11328-54021i5L..LN147,167,172200108-200301

main11328-75010i1RZE..RZN147,152200108-200308

main11328-75021i3RZFE..RZN169,174200108-200308

11329GASKET, TIMING GEAR REAR COVER

main11329-05010i5L..LN147,167,172199912-200108

main11329-54021i2LTE,5L..LN147,16#,17#199708-199912

main11329-75010i1RZE..RZN147,152,167199708-200108

main11329-75021i3RZFE..RZN169,174200108-200308

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i5L..LN147,167,172200108-200407

main11354-75010i1RZE,3RZFE..RZN147,152,169,174200108-200308

11355PLATE, REAR END

main11355-05040i5L..LN147,167,172200108-200407

main11355-54030i5L..LN147,167,172199708-200108

main11355-54110i2LTE..LN165,170199708-199908

main11355-75010i1RZE,3RZFE..RZN147,152,169,174200108-200308

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01686i2LTE..LN165,170199708-199908

11377STIFFENER, REAR END PLATE

main11377-54010i2LTE,5L..LN16#199708-200108

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54020i2LTE,5L..LN147,16#,17#199708-199909

main11381-54030i5L..LN147,167,172200108-200407

main11381-75010i1RZE,3RZFE..RZN147,152,16#,174199708-200108

11381ASEAL, ENGINE REAR OIL

main90311-85008i5L..LN147,167,172200108-200407

main90311-88003i1RZE,3RZFE..RZN147,152,16#,174199708-200009

main90311-88004i1RZE,3RZFE..RZN147,152,169,174200009-200108

main90311-88005i1RZE,3RZFE..RZN147,152,169,174200009-200108

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-54030i2LTE,5L..LN147,16#,17#199708-200108

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54030i2LTE,5L..LN147,16#,17#199708-200108

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i2LTE,5L..LN147,16#,17#199708-200108

11391POINTER, TIMING

main11391-54020i5L..LN147,167,172200108-200407

12282HANGER, ENGINE, NO.2

main12282-54060i5L..LN147,167,172200108-200407

main12282-75020i3RZFE..RZN169,174200108-200308

9008010018

main90080-10018

9010508175

main90105-08175

9010906017

main90109-06017

9011908689

main90119-08689

9011910736

main90119-10736

9021008019

main90210-08019

9025311021

main90253-11021

9161160818

main91611-60818

9161160822

main91611-60822

9161160828

main91611-60828

9161961250

main91619-61250

91621J0814

main91621-J0814

9162261022

main91622-61022

9165161040

main91651-61040

9671119015

main96711-19015

39 parts on this diagram · 3 diagrams in section
