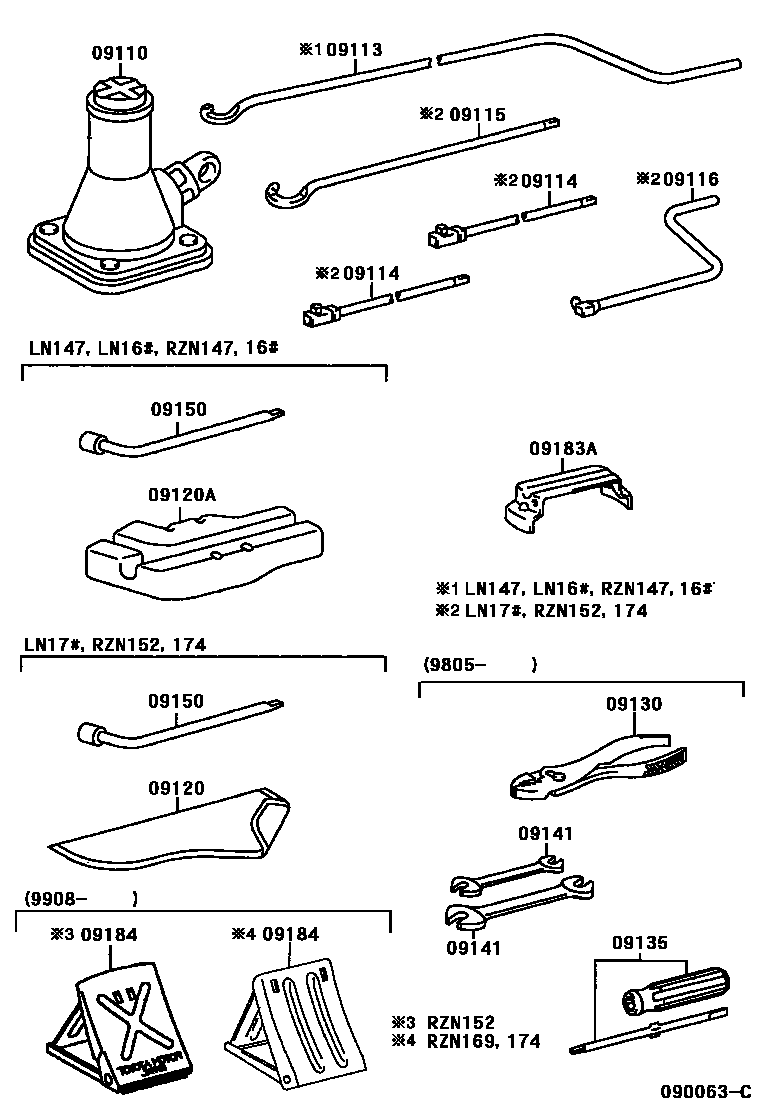

STANDARD TOOL

09110JACK ASSY

main09111-35160iLN147,RZN147,152199708-200407

main09111-35170iLN16#,17#,RZN16#,174199708-200407

09113HANDLE, JACK

main09113-35130iRZN147,169199708-200407

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-60070iLN17#,RZN152,174199711-200407

09115ROD SUB-ASSY, JACK HANDLE

main09115-35120iRZN152,174199711-200407

09116LEVER, JACK HANDLE

main09116-34010iLN17#,RZN152,174199711-200407

09120BAG, TOOL

main09120-34020iLN17#,RZN152,174199711-200407

09120ACASE, TOOL

main09120-35140iLN147,16#,RZN147,16#199708-200407

09130PLIERS

main99913-11500iLN147,16#,17#,RZN147,152,16#,174199805-200407

09135DRIVER, SCREW

main99915-10700iLN147,167,172199805-200407

09141SPANNER

main99914-10810iLN147,167,172199805-200407

main99914-11214iLN147,167,172199805-200407

09150WRENCH, HUB NUT BOX

main09150-35070iRZN147,152,169,174199708-200407

09183AREPLACER, WHEEL CAP

main09183-60010iLN167199708-200407

09184STOPPER, WHEEL

main09184-00010iRZN147,152199708-200407

main09184-60010iRZN169,174199708-200407

13 parts on this diagram · 1 diagram in section
