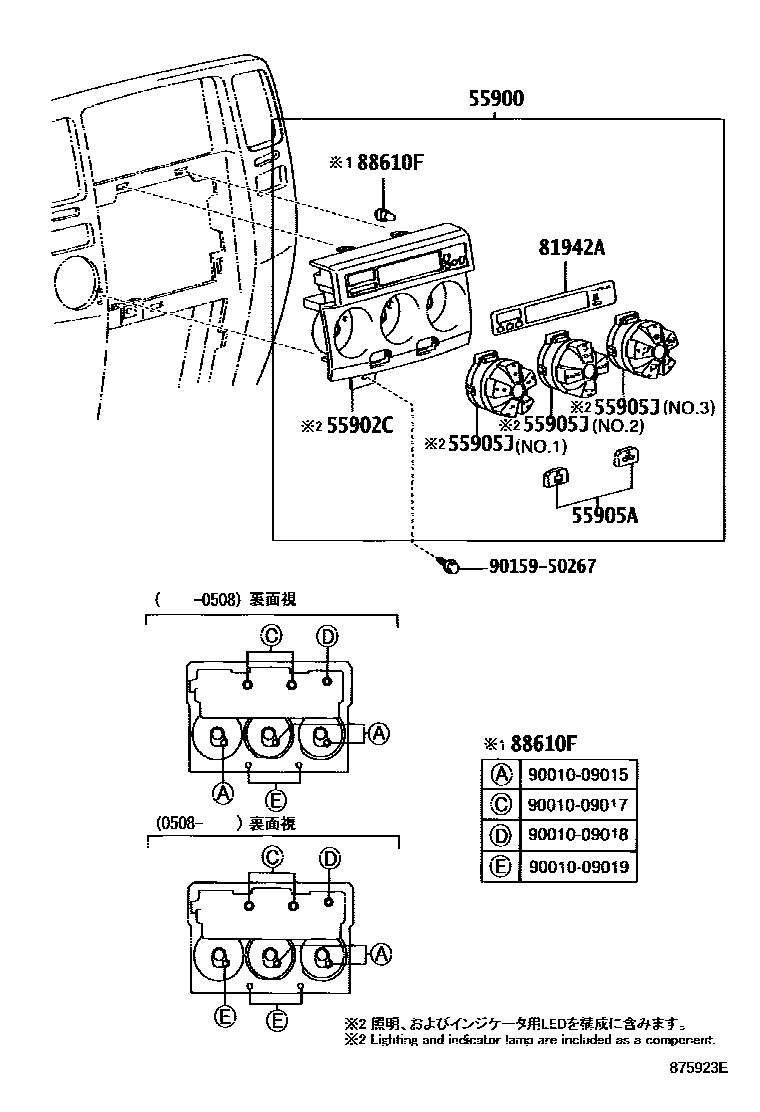

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-� 0002 1�� ���� 0003 1���

55900CONTROL ASSY, AIR CONDITIONER

main55900-35420iKDN215,TRN21#,VZN21#..SSRX200211-200508

main55900-35460iRZN215..SSRG200211-200408

main55900-35510iGRN215,TRN215..SSRG200508-200809

main55900-35511iGRN215,TRN215..SSRG200810

main55900-35540iGRN215,TRN21#..SSRX200508-200809

main55900-35541iGRN215,TRN21#..SSRX200810

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-35020iRZN21#..SSRX200211-200408

main55902-35060iKDN215,TRN215,VZN215..SSRG200211-200508

main55902-35110iGRN215,TRN215..SSRG200508-200809

main55902-35111iGRN215,TRN215..SSRG200810

main55902-35140iGRN215,TRN21#..SSRX200508-200809

main55902-35141iGRN215,TRN21#..SSRX200810

55905AKNOB, HEATER CONTROL

main55905-35340iRZN21#200211-200408

55905JKNOB SUB-ASSY, CONTROL

main55905-35350iGRN215,TRN21#200508

main55905-35360iKDN215,TRN21#,VZN21#200211-200508

main55905-35370iRZN21#200211-200408

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-35010iKDN215,TRN21#,VZN21#200211-200508

88610FBULB, COOLER CONTROL SWITCH

main90010-09015×2iGRN215,TRN21#200508

main90010-09017×2iGRN215,TRN21#200508

main90010-09018iKDN215,RZN21#,TRN21#,VZN21#200211-200508

main90010-09019×2iKDN215,RZN21#,TRN21#,VZN21#200211-200508

9015950267

main90159-50267

7 parts on this diagram · 3 diagrams in section
