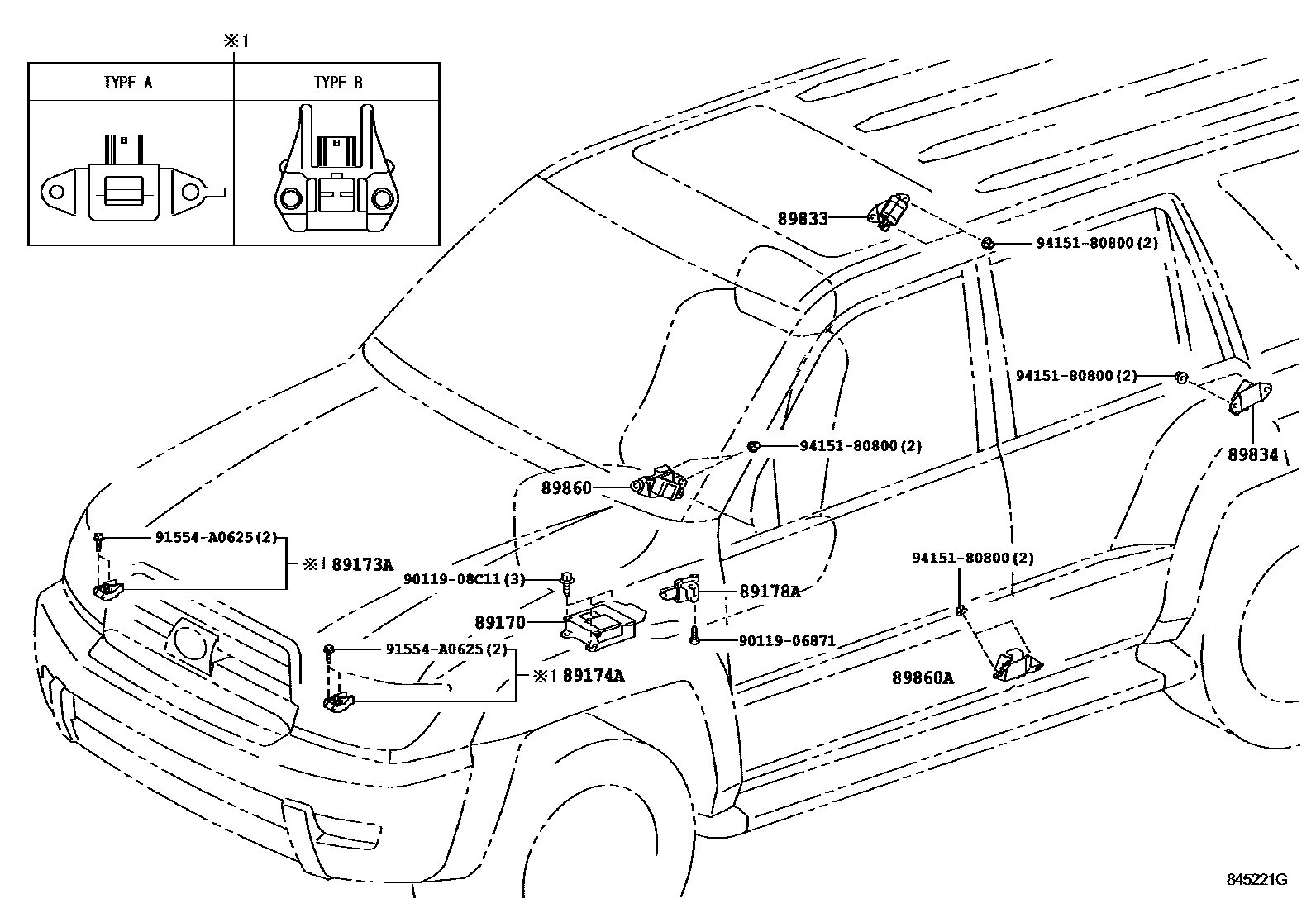

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-35170supersedes 89170-35150iKDN215,RZN21#,TRN21#,VZN21#200211-200508

89173ASENSOR, AIRBAG, FRONT RH

main89173-39335iKDN215,RZN21#,TRN21#,VZN21#200211-200506

main89173-49405iGRN215,TRN21#200508-200908

89174ASENSOR, AIRBAG, FRONT LH

main89173-39335iKDN215,RZN21#,TRN21#,VZN21#200211-200506

main89173-49405iKDN215,TRN21#,VZN21#200506-200508

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iKDN215,RZN21#,TRN21#,VZN21#200211-200508

89833SENSOR, AIRBAG, REAR RH

main89833-35010iRZN21#200211-200408

89834SENSOR, AIRBAG, REAR LH

main89834-35010iRZN21#200211-200408

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-35010iRZN21#200211-200408

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-35010iRZN21#200211-200408

9011906871

main90119-06871

9011908C11

main90119-08C11

91554A0625

main91554-A0625

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
