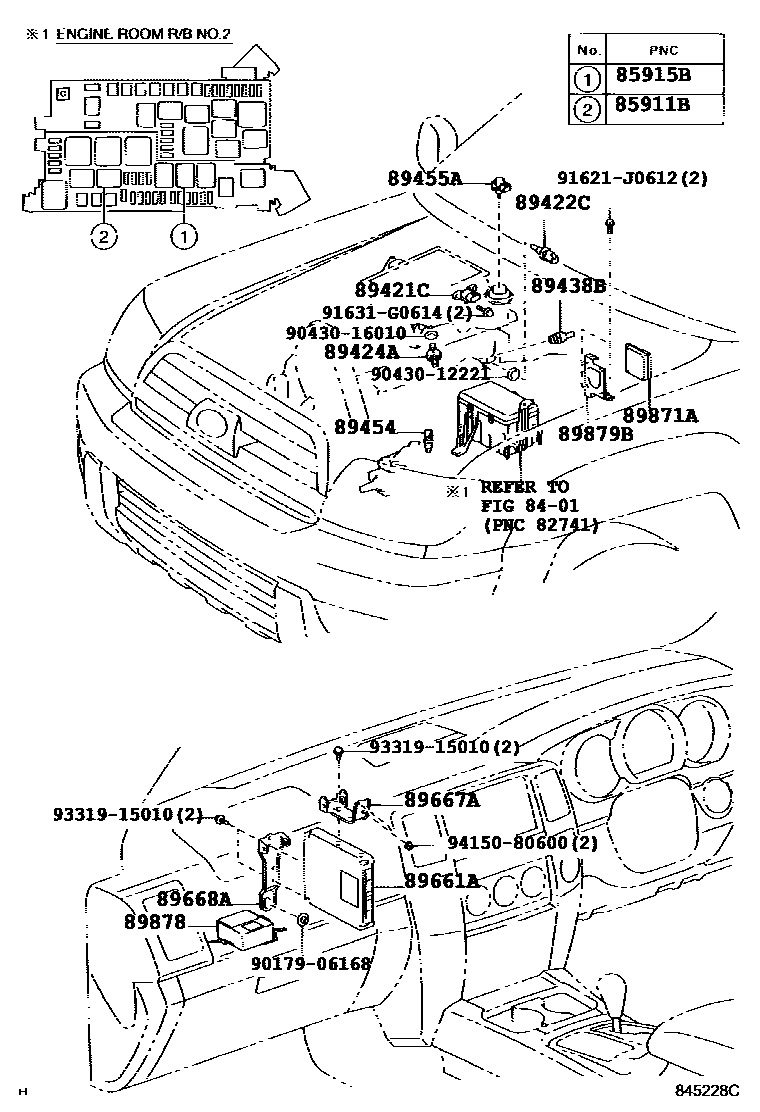

ELECTRONIC CONTROLED DIESEL (ECD)
8401SWITCH & RELAY & COMPUTER
85911BRELAY, COMPUTER (FOR DIESEL TURBO)
85915BRELAY, MAIN (FOR DIESEL TURBO)
89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE
89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89438BSWITCH, POWER STEERING OIL PRESSURE
89454SENSOR, FUEL TEMPERATURE
89455ASENSOR, EGR VALVE POSITION
89661ACOMPUTER, ENGINE CONTROL
89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1
89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2
89871ADRIVER, INJECTOR
89879BBRACKET, INJECTOR DRIVER
9017906168
main90179-06168
9043012221
main90430-12221
9043016010
main90430-16010
91621J0612
main91621-J0612
91631G0614
main91631-G0614
9331915010
main93319-15010
9415080600
main94150-80600
22 parts on this diagram · 1 diagram in section
