INTERIOR LAMP

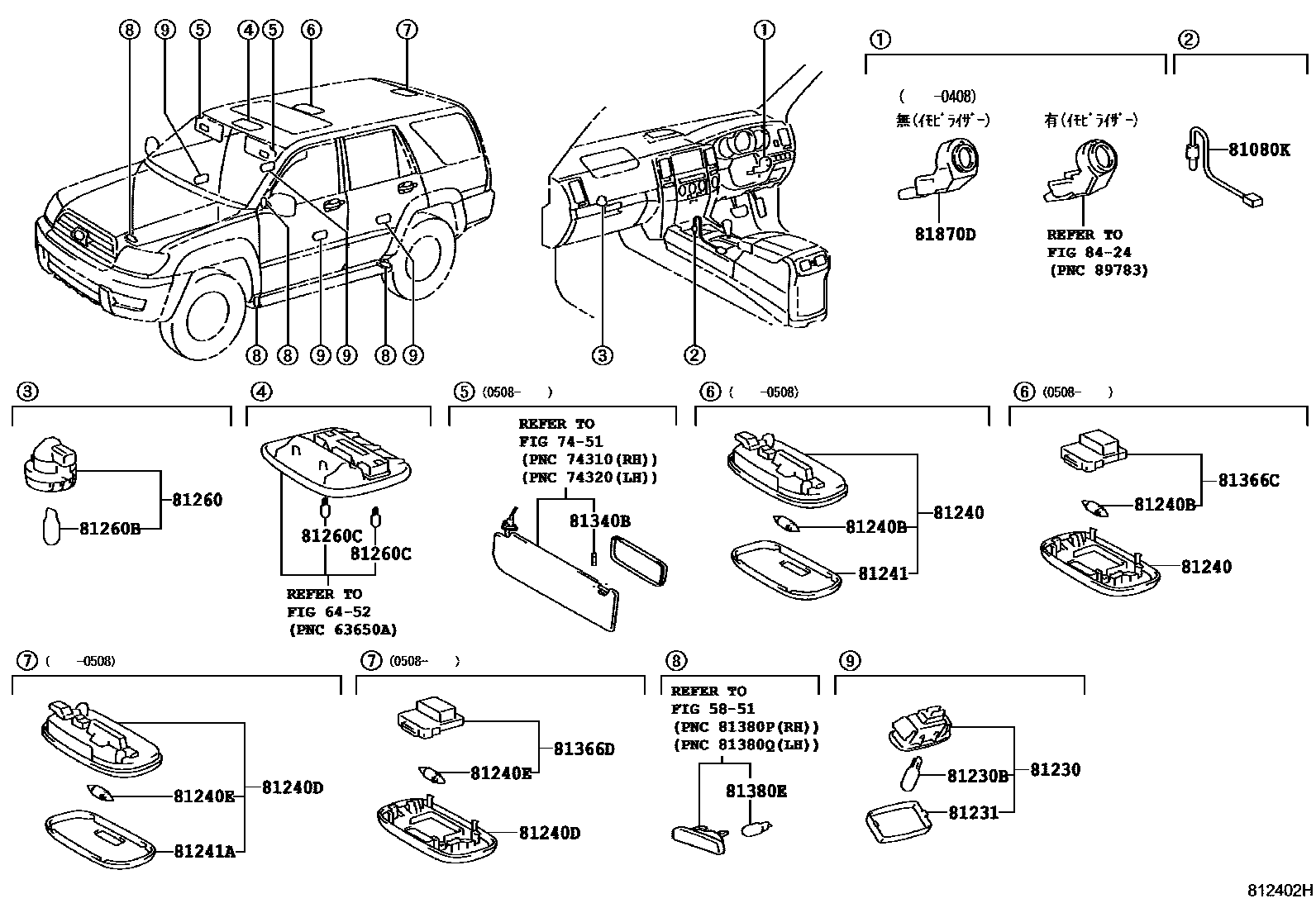

Parts diagram

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

6452ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-52

7451ARMREST & VISOR

→ Go to FIG 74-51

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81205-35010i200211-200508

81230LAMP ASSY, COURTESY

main81230-30140×4i200211-200408

81230BBULB(FOR COURTESY LAMP)

main90981-11020×4i200211-200408

81231LENS, COURTESY LAMP

main81231-50010×4i200211-200408

81240LAMP ASSY, ROOM, NO.1

main81240-33030-B2i200211-200508

STONE,TRIM1#; STONE,TRIM12,13

main81240-33030-E0i200211-200408

FAWN,TRIM4#

main81240-52040-B2i200508-200908

STONE,TRIM1#

main81240-52040-E1i200508-200908

FAWN,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200211-200508

81240DLAMP ASSY, ROOM, NO.2

main81240-33030-B2i200211-200508

STONE,TRIM1#; STONE,TRIM12,13

main81240-33030-E0i200211-200508

FAWN,TRIM4#

main81240-52040-B2i200508-200908

STONE,TRIM1#

main81240-52040-E1i200508-200908

FAWN,TRIM4#

81240EBULB, ROOM LAMP, NO.2

main90981-14011i200211-200508

81241LENS, ROOM LAMP, NO.1

main81241-33030i200211-200408

81241ALENS, ROOM LAMP, NO.2

main81241-33030i200211-200508

81260LAMP ASSY, GLOVE BOX

main81260-33010i200211-200408

81260BBULB(FOR GLOVE BOX)

main90981-11018i200211-200408

81260CBULB(FOR MAP LAMP)

main90084-81002×2i200211-200508

81340BBULB (FOR VANITY LAMP)

main90981-14014×2i200508

81366CBASE, ROOM LAMP SWITCH

main81366-68010i200508-200908

81366DBASE, LUGGAGE LAMP SWITCH

main81366-68010i200508-200908

81380EBULB (FOR STEP LAMP)

main90981-11020×4i200508-200908

81870DLAMP ASSY, KEY CYLINDER

main81870-60030i200211-200408

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

22 parts on this diagram · 1 diagram in section
