MOULDING

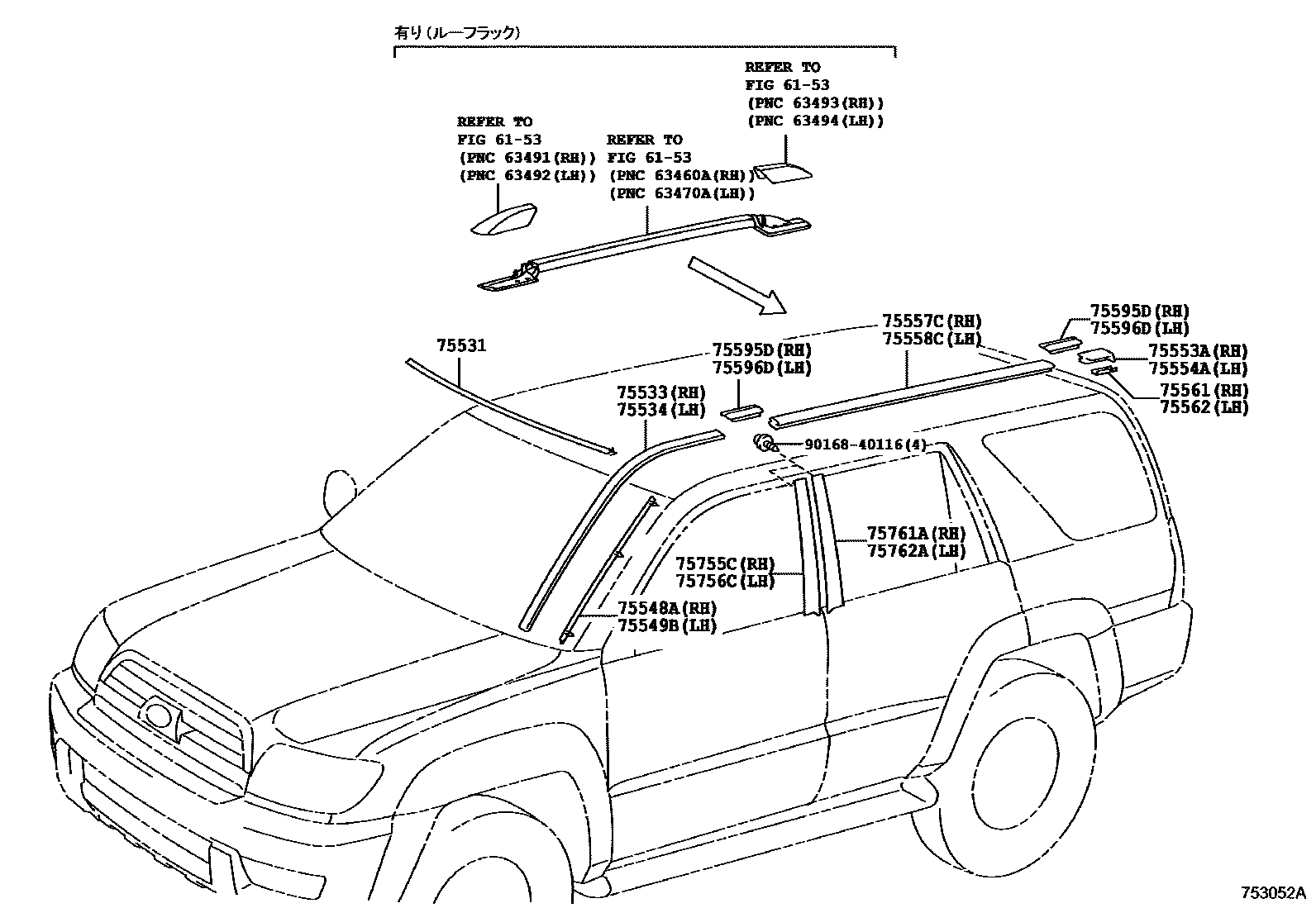

Parts diagram

6153ROOF PANEL & BACK PANEL

→ Go to FIG 61-53

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-35110i200508-200908

main75531-35180i200211-200408

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-35040i200211-200502

main75533-35041i200503-200508

main75533-35050i200508

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-35010i200211-200502

main75534-35011i200503-200508

main75534-35030i200508

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-35010i200211-200408

75549BFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2

main75549-35010i200211-200508

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-35010i200211-200408

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-35010i200211-200408

75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH

main75557-35010i200211-200408

75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH

main75557-35010i200211-200408

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-42030i200211-200408

main75561-60010i200807

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75561-42030i200508-200807

main75561-60010i200807

75595DCOVER, ROOF DRIP SIDE MOULDING, FRONT RH

main75596-35030×2i200601-200908

main75596-42010×2i200211-200508

75596DCOVER, ROOF DRIP SIDE MOULDING, FRONT LH

main75596-35030×2i200601

main75596-42010×2i200211-200508

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-35010i200211-200408

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-35010i200508

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-35010i200211-200508

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-35010i200211-200508

9016840116

main90168-40116

19 parts on this diagram · 3 diagrams in section
