ASH RECEPTACLE

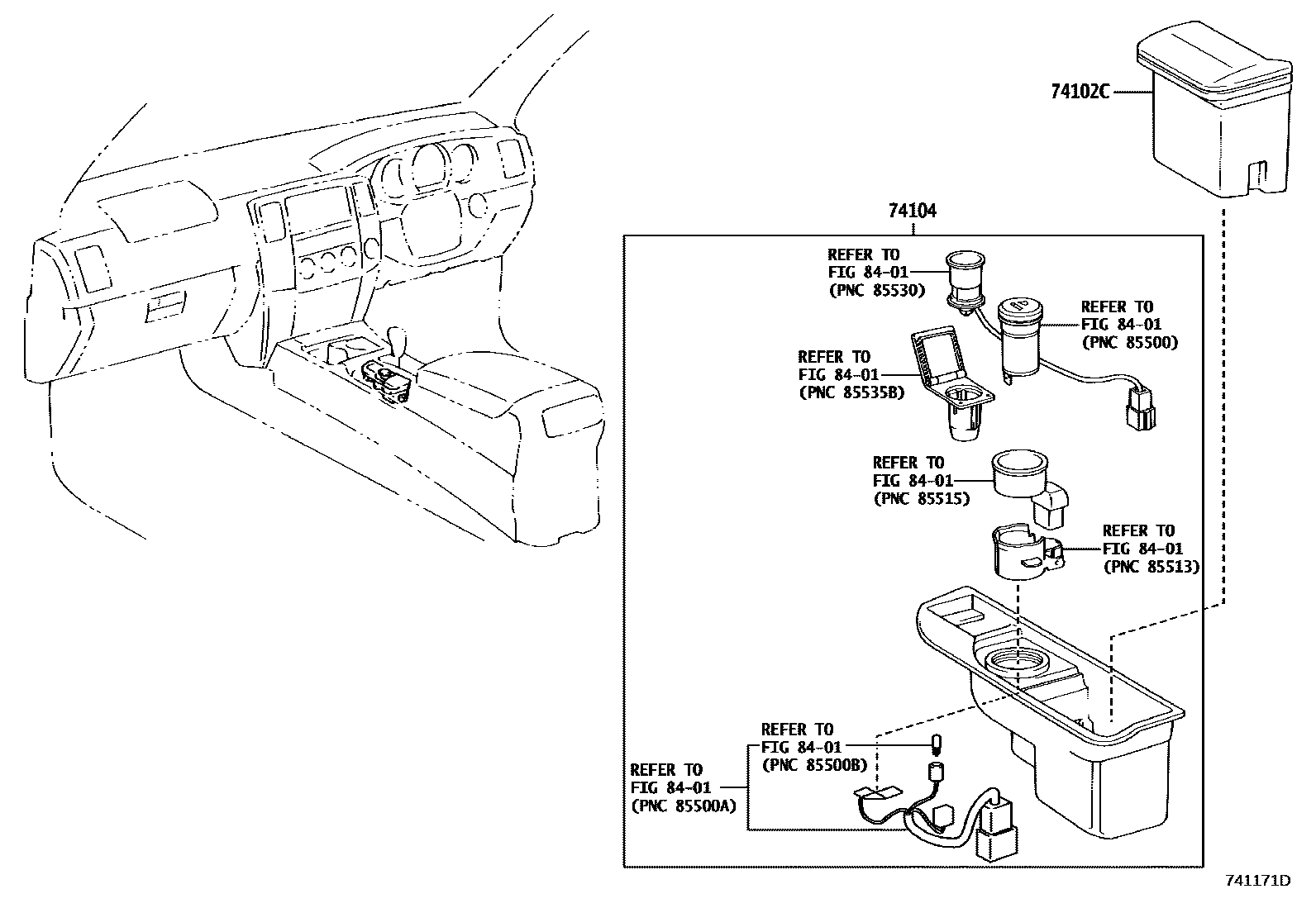

Parts diagram

74102CBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-35020i200211-200408

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-35030i200211-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

3 parts on this diagram · 1 diagram in section
