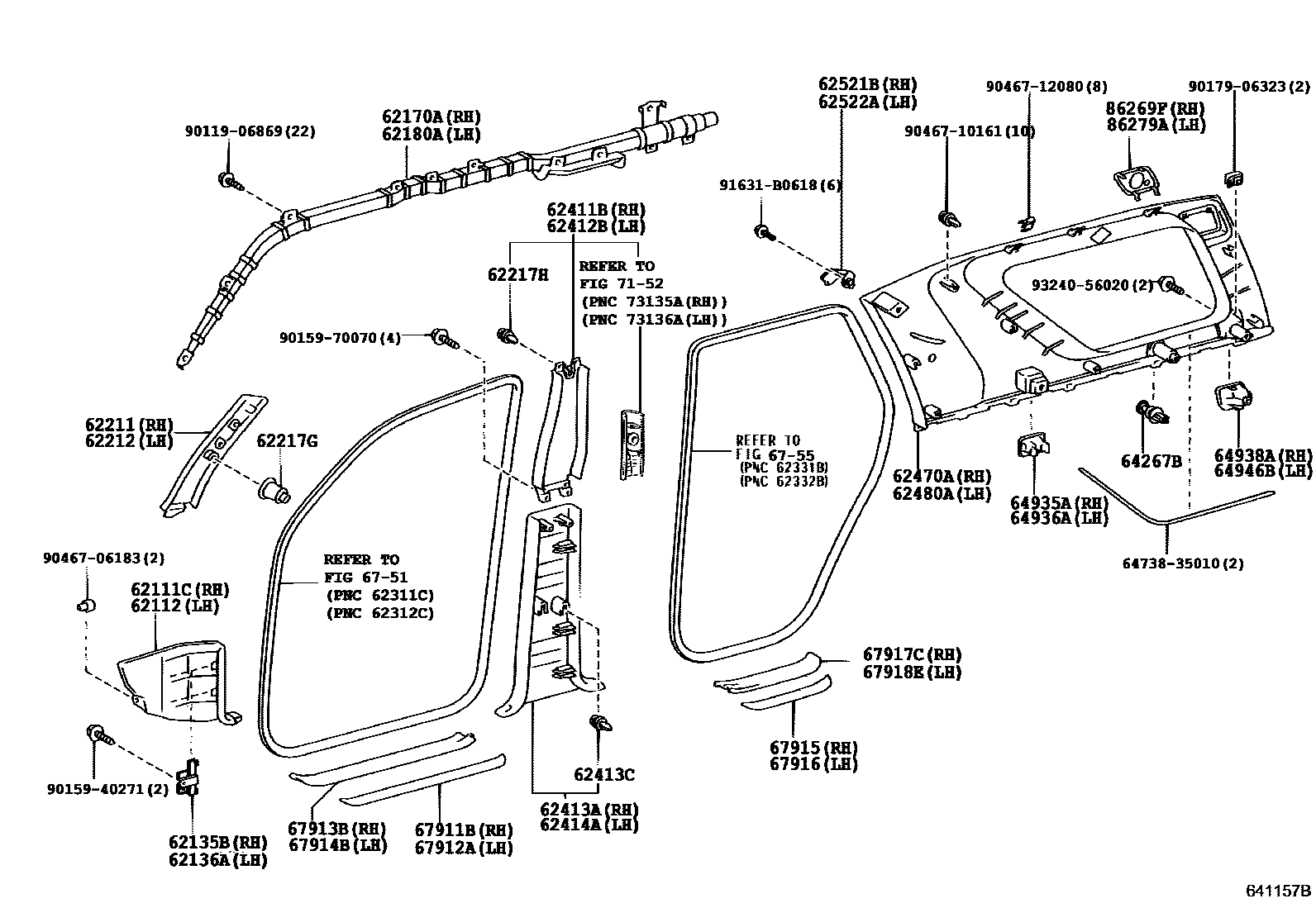

INSIDE TRIM BOARD

0001 1 0002 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-60090-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub62111-60140

sub62111-60090

main62111-60090-B0iGRN215,TRN21#200211-200908

STONE,TRIM1#

sub62111-60140

sub62111-60090

main62111-60090-E0iRZN21#200211-200908

FAWN,TRIM4#

sub62111-60140

sub62111-60090

62112BOARD, COWL SIDE TRIM, LH

main62112-60140-B0iRZN21#200211-200908

STONE,TRIM1#

sub62112-60190

sub62112-60140

main62112-60140-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub62112-60190

sub62112-60140

main62112-60140-E0iRZN21#200211-200908

FAWN,TRIM4#

sub62112-60190

sub62112-60140

62135BRETAINER, COWL SIDE CARPET, RH

main62135-60010iRZN21#200211-200508

62136ARETAINER, COWL SIDE CARPET, LH

main62136-60010iKDN215,TRN21#,VZN21#200211-200508

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

62211GARNISH, FRONT PILLAR, RH

main62211-35070-B0iRZN21#200211-200908

STONE,TRIM1#

main62211-35070-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

main62211-35070-E0iRZN21#200211-200908

FAWN,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-35070-B0iRZN21#200211-200908

STONE,TRIM1#

main62212-35070-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

main62212-35070-E0iRZN21#200211-200908

FAWN,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-35010iRZN21#200211-200508

62217HCLIP, CENTER PILLER GARNISH

main90467-11111iRZN21#200211-200508

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-35030-B0iRZN21#200211-200908

STONE,TRIM1#

main62411-35030-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

main62411-35030-E0iGRN215,TRN21#200211-200908

FAWN,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-35030-B0iRZN21#200211-200908

STONE,TRIM1#

main62412-35030-B0iTRN215,VZN215..SSRG;KDN215,TRN210,VZN210200211-200508

STONE,TRIM12,13

main62412-35030-E0iRZN21#200211-200908

FAWN,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-60060-B0iTRN215,VZN215..SSRX200211-200609

STONE,TRIM1#

sub62413-60061

main62413-60060-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub62413-60061

main62413-60060-E0iRZN21#200211-200609

FAWN,TRIM4#

sub62413-60061

main62413-60061-B0iGRN215,TRN21#200610-200908

STONE,TRIM1#

main62413-60061-E0iGRN215,TRN21#200610-200908

FAWN,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iRZN21#200211-200508

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-60070-B0iTRN215,VZN215..SSRX200211-200609

STONE,TRIM1#

sub62414-60071

main62414-60070-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub62414-60071

main62414-60070-E0iRZN21#200211-200609

FAWN,TRIM4#

sub62414-60071

main62414-60071-B0iGRN215,TRN21#200610-200908

STONE,TRIM1#

main62414-60071-E0iGRN215,TRN21#200610-200908

FAWN,TRIM4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-35900-B0iRZN21#..SSRX200211-200908

STONE,TRIM1#

sub62470-35900

main62470-35900-B0iVZN215..SSRX200211-200508

STONE,TRIM12,13

sub62470-35900

main62470-35900-B0iVZN215..SSRX200211-200308

STONE,TRIM12

sub62470-35900

main62470-35900-E0iGRN215,TRN21#200211-200908

FAWN,TRIM4#

sub62470-35900

main62470-35900-E0iRZN215..SSRG;KDN215,VZN21#200211-200308

FAWN,TRIM42

sub62470-35900

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-35900-B0iVZN215..SSRX200211-200508

STONE,TRIM12,13

sub62480-35900

main62480-35900-B0iVZN215..SSRX200211-200308

STONE,TRIM12

sub62480-35900

main62480-35900-B0iRZN21#..SSRX200211-200908

STONE,TRIM1#

sub62480-35900

main62480-35900-E0iGRN215,TRN21#200211-200908

FAWN,TRIM4#

sub62480-35900

main62480-35900-E0iRZN215..SSRG;KDN215,VZN21#200211-200308

FAWN,TRIM42

sub62480-35900

62521BCOVER, QUARTER TRIM, RH

main62521-35010-B0iRZN21#200211-200908

STONE,TRIM1#

sub62521-35010

main62521-35010-B0iTRN215,VZN215..SSRG;KDN215,TRN210,VZN210200211-200508

STONE,TRIM12,13

sub62521-35010

main62521-35010-E0iRZN21#200211-200908

FAWN,TRIM4#

sub62521-35010

62522ACOVER, QUARTER TRIM, LH

main62522-35010-B0iRZN21#200211-200908

STONE,TRIM1#

sub62522-35010

main62522-35010-B0iTRN215,VZN215..SSRG;KDN215,TRN210,VZN210200211-200508

STONE,TRIM12,13

sub62522-35010

main62522-35010-E0iRZN21#200211-200908

FAWN,TRIM4#

sub62522-35010

64267BHOOK, PACKAGE HOLDER NET

main64267-0C010-B1iRZN21#200211-200908

STONE,TRIM1#

main64267-0C010-B1iTRN215,VZN215..SSRX200308-200508

STONE,TRIM12,13

main64267-0C010-E1iGRN215,TRN21#200211-200908

FAWN,TRIM4#

64935AHOLDER, TONNEAU COVER

main64935-35050-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub64935-35050

main64935-35050-B0iTRN215,VZN215..SSRX200211-200908

STONE,TRIM1#

sub64935-35050

main64935-35050-E0iKDN215,TRN21#,VZN21#200211-200908

FAWN,TRIM4#

sub64935-35050

64936AHOLDER, TONNEAU COVER, LH

main64936-35040-B0iRZN21#200211-200908

STONE,TRIM1#

sub64936-35040

main64936-35040-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub64936-35040

main64936-35040-E0iKDN215,TRN21#,VZN21#200211-200908

FAWN,TRIM4#

sub64936-35040

64938AHOOK, TONNEAU COVER, A

main64938-35050-B0iRZN21#200211-200908

STONE,TRIM1#

sub64938-35050

main64938-35050-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub64938-35050

main64938-35050-E0iRZN21#200211-200908

FAWN,TRIM4#

sub64938-35050

64946BHOOK, TONNEAU COVER, B

main64946-35050-B0iGRN215,TRN21#200211-200908

STONE,TRIM1#

sub64946-35050

main64946-35050-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub64946-35050

main64946-35050-E0iKDN215,TRN21#,VZN21#200211-200908

FAWN,TRIM4#

sub64946-35050

6751

6755

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-60010-B0iRZN21#200211-200908

STONE,TRIM1#

sub67911-60010

main67911-60010-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub67911-60010

main67911-60010-E0iGRN215,TRN21#200211-200908

FAWN,TRIM4#

sub67911-60010

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-60010-B0iRZN21#200211-200908

STONE,TRIM1#

sub67911-60010

main67911-60010-B0iTRN215,VZN215..SSRG;KDN215,TRN210,VZN210200211-200508

STONE,TRIM12,13

sub67911-60010

main67911-60010-E0iRZN21#200211-200908

FAWN,TRIM4#

sub67911-60010

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-60080-B0iTRN215,VZN215..SSRG;KDN215,TRN210,VZN210200211-200611

STONE,TRIM1#

sub67913-60081

main67913-60080-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub67913-60081

main67913-60080-E0iKDN215,TRN21#,VZN21#200211-200611

FAWN,TRIM4#

sub67913-60081

main67913-60081-B0iGRN215,TRN21#200612-200908

STONE,TRIM1#

sub67913-60082

main67913-60081-E0iGRN215,TRN21#200612-200908

FAWN,TRIM4#

sub67913-60082

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-60070-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub67914-60071

main67914-60070-B0iTRN215,VZN215..SSRX200211-200611

STONE,TRIM1#

sub67914-60071

main67914-60070-E0iKDN215,TRN21#,VZN21#200211-200611

FAWN,TRIM4#

sub67914-60071

main67914-60071-B0iGRN215,TRN21#200612-200908

STONE,TRIM1#

sub67914-60072

main67914-60071-E0iGRN215,TRN21#200612-200908

FAWN,TRIM4#

sub67914-60072

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-60010-B0iRZN21#200211-200908

STONE,TRIM1#

main67915-60010-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

main67915-60010-E0iGRN215,TRN21#200211-200908

FAWN,TRIM4#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-60010-B0iTRN215,VZN215..SSRX200211-200908

STONE,TRIM1#

main67916-60010-B0iTRN215,VZN215..SSRG;KDN215,TRN210,VZN210200211-200508

STONE,TRIM12,13

main67916-60010-E0iRZN21#200211-200908

FAWN,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-60080-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub67917-60081

main67917-60080-B0iRZN21#200211-200611

STONE,TRIM1#

sub67917-60081

main67917-60080-E0iRZN21#200211-200611

FAWN,TRIM4#

sub67917-60081

main67917-60081-B0iGRN215,TRN21#200612-200908

STONE,TRIM1#

sub67917-60082

main67917-60081-E0iGRN215,TRN21#200612-200908

FAWN,TRIM4#

sub67917-60082

67918EPLATE, REAR DOOR SCUFF, LH

main67918-60070-B0iTRN215,VZN215..SSRG;KDN215,TRN210,VZN210200211-200611

STONE,TRIM1#

sub67918-60071

main67918-60070-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

sub67918-60071

main67918-60070-E0iRZN21#200211-200611

FAWN,TRIM4#

sub67918-60071

main67918-60071-B0iGRN215,TRN21#200612-200908

STONE,TRIM1#

sub67918-60072

main67918-60071-E0iGRN215,TRN21#200612-200908

FAWN,TRIM4#

sub67918-60072

7152

86269FGRILLE, SPEAKER, RH

86279AGRILLE, SPEAKER, LH

6473835010PAD, DECK TRIM SIDE, NO.4

main64738-35010

9011906869

main90119-06869

9015940271

main90159-40271

9015970070

main90159-70070

9017906323

main90179-06323

9046706183

main90467-06183

9046710161

main90467-10161

9046712080

main90467-12080

91631B0618

main91631-B0618

9324056020

main93240-56020

47 parts on this diagram · 2 diagrams in section
