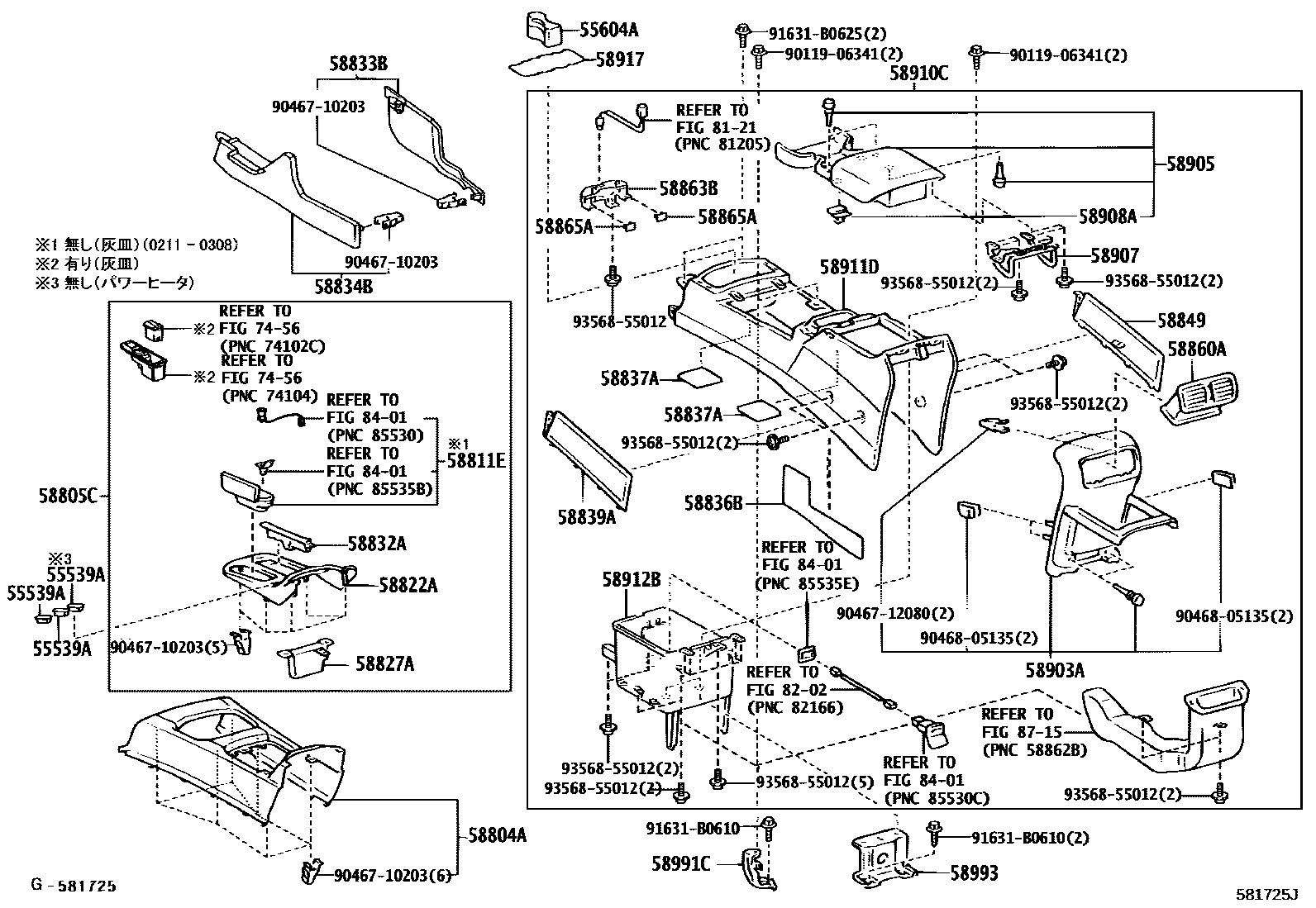

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-51020-C0×2iRZN21#200211-200408

BLACK,TRIM1#,4#

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-35050iRZN21#..SSRX200211-200408

main55604-35060iKDN215,TRN215,VZN215..SSRG200211-200508

main55604-35070iGRN215,TRN215..SSRG200508

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-35360iGRN215,TRN21#..SSRX200508

main58804-35370iRZN215..SSRG200211-200408

main58804-35390iGRN215,TRN215..SSRG200508

main58804-35410iGRN215,TRN215..SSRX200704

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-35050-B0iTRN215,VZN215..SSRG;KDN215,TRN210,VZN210; TRN215,VZN215..SSRX200211-200508

DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM12,13,4#

main58805-35070iKDN215,RZN21#,VZN21#200211-200308

58811EBOX, CONSOLE, UPPER

main58810-35020iKDN215,RZN21#,VZN21#200211-200308

58822APANEL, CONSOLE, UPPER REAR

main58822-35030iRZN21#200211-200408

58827AGARNISH, CONSOLE BOX POCKET

main58827-35010iKDN215,TRN21#,VZN21#200211-200508

58832AGARNISH, CONSOLE UPPER PANEL, REAR

main58832-35010iKDN215,TRN21#,VZN21#200211-200508

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-35040-B0iRZN21#200211-200408

STONE,TRIM1#

main58833-35040-E0iGRN215,TRN21#200508-200908

FAWN,TRIM4#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-35040-B0iTRN215,VZN215..SSRG;KDN215,TRN210,VZN210; TRN215,VZN215..SSRX200211-200508

STONE,TRIM1#; STONE,TRIM12,13

main58834-35040-E0iRZN21#200211-200408

FAWN,TRIM4#

58836BPAD, CONSOLE BOX SILENCER, NO.1

main58836-35010iRZN21#200211-200408

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-35010iRZN21#200211-200408

58839ACOVER, CONSOLE BOX HOLE

main58839-35010iGRN215,TRN21#200508

main58839-35020iGRN215,TRN215..SSRX200608-200704

58849COVER, CONSOLE BOX HOLE, NO.2

main58849-35010iGRN215,TRN21#200508

main58849-35030iGRN215,TRN215..SSRX200704

58860AREGISTER ASSY, CONSOLE BOX

main58860-35010iRZN21#..SSRX200211-200408

main58860-35020iRZN215..SSRG200211-200408

main58860-35030iGRN215,TRN215..SSRG200508

main58860-35040iGRN215,TRN215..SSRX200608-200704

58863BSUPPORT, CONSOLE BOX, NO.3

main58863-35010iGRN215,TRN21#200508

58865ALENS, FRONT CONSOLE BOX, NO.1

main58865-35010×2iGRN215,TRN21#200508

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-35040-B0iRZN21#200211-200408

DK.GRAY,TRIM1#,4#

main58903-35050-B0iGRN215,TRN215..SSRX200608-200704

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-35090-B0iKDN215,RZN21#,VZN21#200211-200308

DK.GRAY,TRIM1#,4#

main58905-35091-B0iGRN215,TRN21#200508-200908

DK.GRAY,TRIM1#,4#

main58905-35100-B0iRZN215..SSRG200211-200408

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-35020iRZN21#200211-200408

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32050iGRN215,TRN21#200508

58910CBOX ASSY, CONSOLE, REAR

main58910-35010-B0iKDN215,TRN21#,VZN21#..SSRX200211-200508

STONE,TRIM1#

main58910-35020-B0iTRN215..SSRX200408-200508

main58910-35020-E0iTRN215..SSRX200408-200508

main58910-35050-B0supersedes 58910-35010-B0iRZN21#..SSRX200211-200408

main58910-35050-E0supersedes 58910-35010-E0iRZN21#..SSRX200211-200408

main58910-35070-B0supersedes 58910-35020-B0iKDN215,TRN215,VZN215..SSRG200211-200508

main58910-35070-E0supersedes 58910-35020-E0iKDN215,TRN215,VZN215..SSRG200211-200508

main58910-35120-B0supersedes 58910-35090-B0iGRN215,TRN215..SSRG200508-200908

main58910-35120-E0supersedes 58910-35090-E0iGRN215,TRN215..SSRG200508-200908

main58910-35250-B0iGRN215,TRN215..SSRX200704-200908

58911DBOX, REAR CONSOLE, UPPER

main58911-35070-B0iRZN21#200211-200408

STONE,TRIM1#

main58911-35070-E0iKDN215,TRN21#,VZN21#200211-200508

FAWN,TRIM4#

58912BBOX, REAR CONSOLE, LOWER

main58912-35040supersedes 58912-35030iRZN21#..SSRX; RZN215..SSRG200211-200408

58917MAT, BOX BOTTOM, NO.2

main58917-35040iRZN21#200211-200408

58991CBRACKET, CONSOLE BOX MOUNTING, FRONT

main58991-35050iRZN21#200211-200408

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-35060iRZN21#200211-200408

7456ASH RECEPTACLE

→ Go to FIG 74-56

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9011906341

main90119-06341

9046710203

main90467-10203

9046712080

main90467-12080

9046805135

main90468-05135

91631B0610

main91631-B0610

91631B0625

main91631-B0625

9356855012

main93568-55012

39 parts on this diagram · 1 diagram in section
