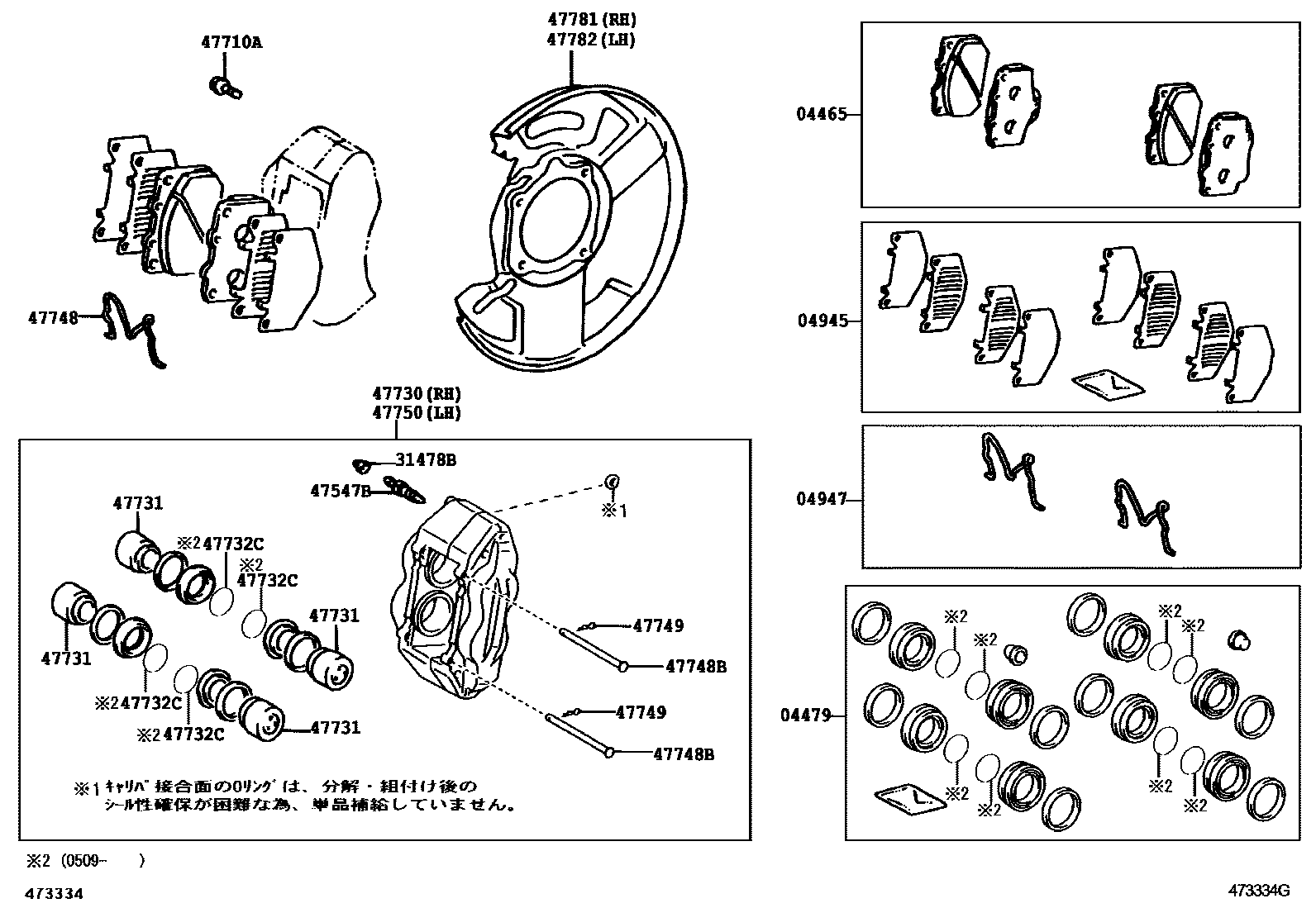

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-35290iGRN215,TRN21#200508

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-60050iGRN215,TRN21#200510

main04479-60080iGRN215,TRN21#200508-200509

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-35080iRZN21#200211-200408

main04945-35120iKDN215,TRN21#,VZN21#200409-200508

04947FITTING KIT, DISC BRAKE, FRONT

main04947-35050iKDN215,TRN21#,VZN21#200211-200508

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iRZN21#200211-200408

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020×2iRZN21#200211-200408

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175×4iRZN21#200211-200408

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35160iGRN215,TRN21#200508-200509

main47730-35411iGRN215,TRN21#200509

47731PISTON, FRONT DISC BRAKE

main47731-35040×8iRZN21#200211-200408

47732CRING, SET, NO.2(FOR FRONT DISC BRAKE)

main90522-50003×8iGRN215,TRN21#200509

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-35010×2iRZN21#200211-200408

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06158×4iKDN215,RZN21#,TRN21#,VZN21#200211-200508

47749CLIP, PIN HOLD

main47749-35040×4iRZN21#200211-200408

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35160iRZN21#200211-200408

main47750-35411iGRN215,TRN21#200509

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-35160iRZN21#200211-200408

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-35160iRZN21#200211-200408

16 parts on this diagram · 1 diagram in section
