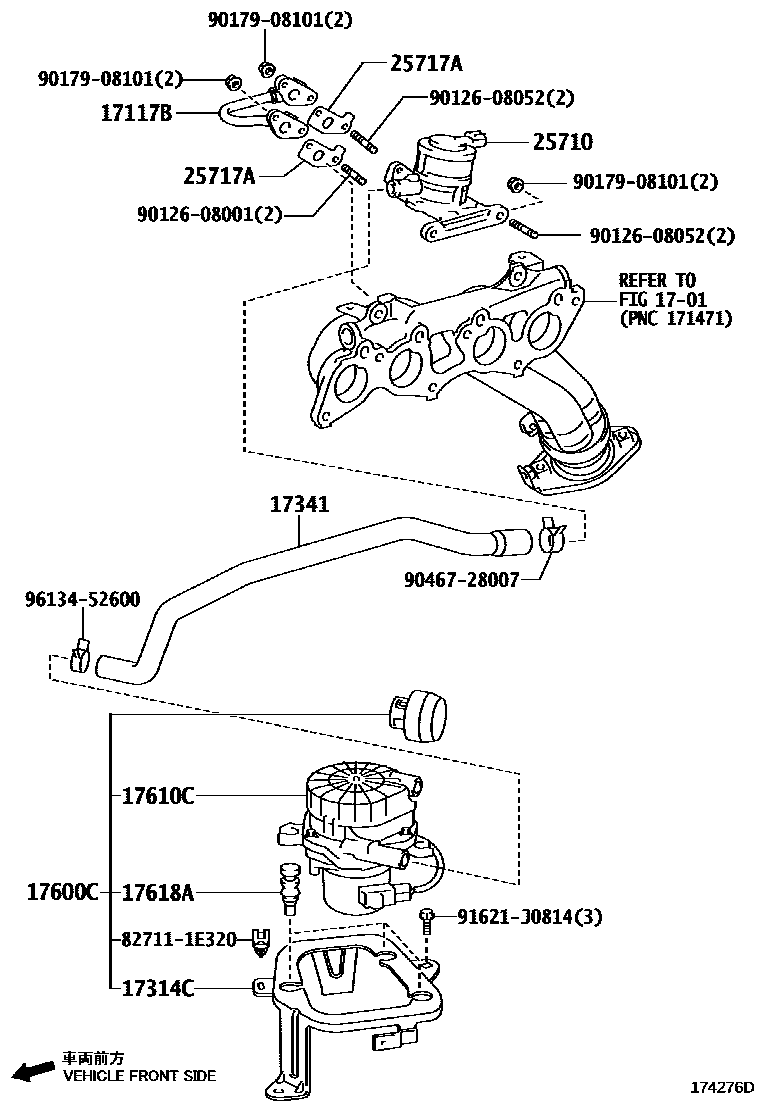

MANIFOLD AIR INJECTION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

17117BPIPE, INTAKE, NO.4

main17117-75010i2TRFE..TRN21#200408-200508

17314CBRACKET, AIR PUMP

main17314-0W010i2TRFE..TRN21#200408-200508

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-75170i2TRFE..TRN21#200408-200508

17600CPUMP ASSY, AIR

main17600-0W010i2TRFE..TRN21#200408-200508

17610CPUMP ASSY, AIR

main17610-0C010i2TRFE..TRN21#200408-200508

17618AINSULATOR, AIR PUMP

main17618-0C010i2TRFE..TRN21#200408-200508

25710VALVE ASSY, AIR SWITCHING

main25710-75020i2TRFE..TRN21#200408-200908

25717AGASKET, AIR SWITCHING VALVE

main25717-75010i2TRFE..TRN21#200408-200508

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

9012608001

main90126-08001

9012608052

main90126-08052

9017908101

main90179-08101

9046728007

main90467-28007

91621J0814

main91621-J0814

9613452600

main96134-52600

16 parts on this diagram · 1 diagram in section
