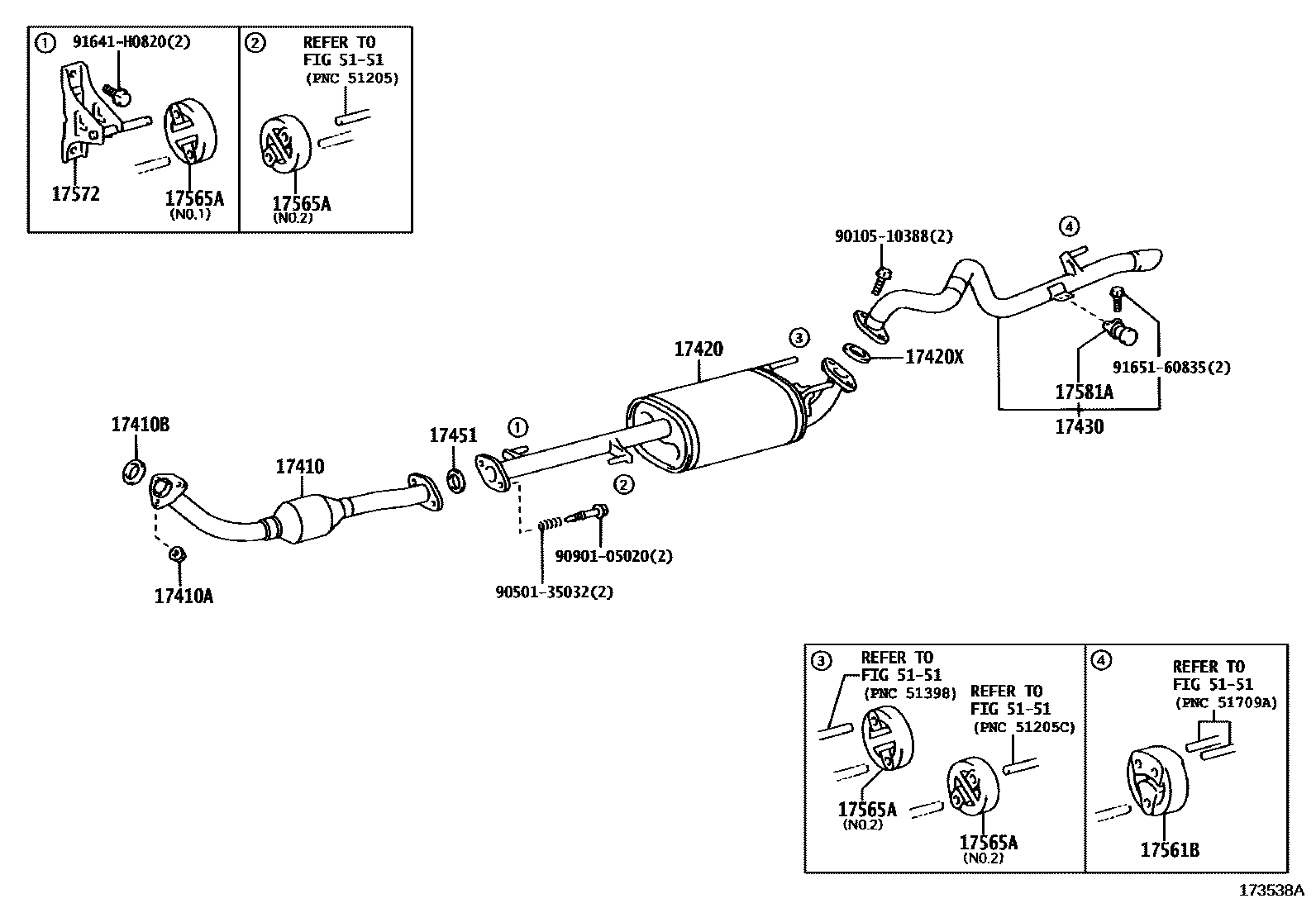

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-30050i1KDFTV..KDN215200211-200508

main17410-31450i1GRFE..GRN215200508

main17410-62180i5VZFE..VZN21#200211-200508

main17410-75360i3RZFE..RZN21#200211-200408

main17410-75520i2TRFE..TRN21#200508

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i3RZFE..RZN21#200211-200408

17410BGASKET, EXHAUST PIPE

main90917-06061×2i3RZFE..RZN21#200211-200408

main90917-06086i5VZFE..VZN21#200211-200508

main90917-06089×2i1GRFE..GRN215200508

main90917-06090i1KDFTV..KDN215200211-200508

17420PIPE ASSY, EXHAUST, CENTER

main17420-30060i1KDFTV..KDN215200211-200508

main17420-50220i1GRFE..GRN215200508

main17420-62310i3RZFE..RZN21#200211-200408

main17420-75440i2TRFE..TRN21#200408-200508

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06072×2i2TRFE..TRN21#200408-200508

17430PIPE ASSY, EXHAUST, TAIL

main17430-30050i1KDFTV..KDN215200211-200508

main17430-31410i1GRFE..GRN215200508

main17430-50220i3RZFE..RZN21#200211-200408

17451GASKET, EXHAUST PIPE

main17451-74040i2TRFE..TRN21#200508

main17451-74051i1KDFTV,5VZFE..KDN215,VZN21#200211-200508

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-73020i3RZFE..RZN21#200211-200408

main17565-31050i1GRFE..GRN215200508

main17565-74320i1KDFTV..KDN215200211-200508

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i1GRFE,2TRFE..GRN215,TRN21#; 1GRFE..GRN215; 2TRFE..TRN21#200508

main17565-46040i1KDFTV,3RZFE,5VZFE..KDN215,RZN21#,VZN21#200211-200508

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-50140i1GRFE..GRN215200508

17581ADAMPER, EXHAUST PIPE

main17581-30010i1KDFTV..KDN215200211-200508

5151FRAME

→ Go to FIG 51-51

9010510388

main90105-10388

9050135032

main90501-35032

9090105020

main90901-05020

91641H0820

main91641-H0820

9165160835

main91651-60835

17 parts on this diagram · 4 diagrams in section
