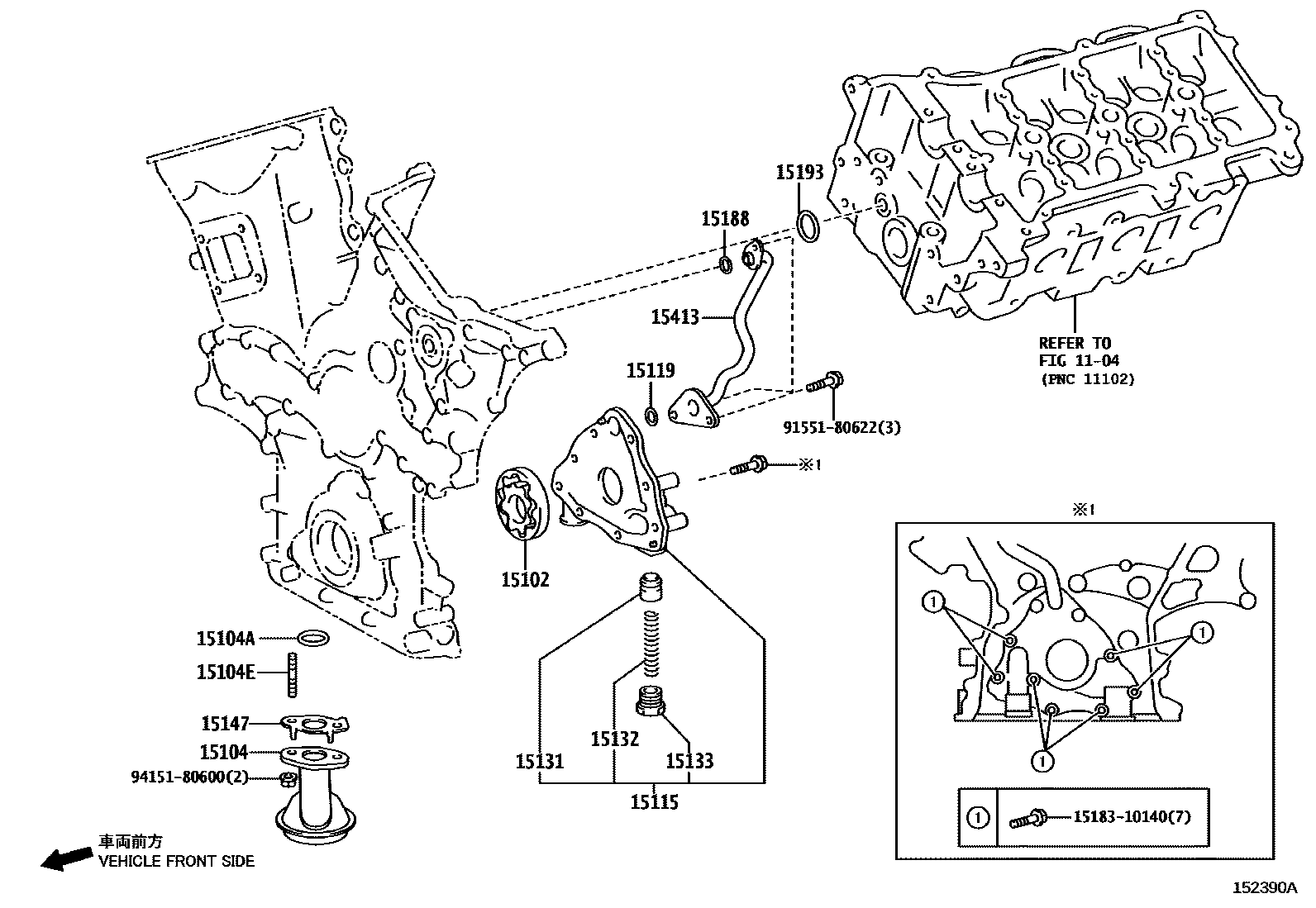

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1104

15102ROTOR SET, OIL PUMP

main15103-31050i1GRFE..GRN215200508

main15103-75020i3RZFE..RZN21#200211-200408

15104STRAINER SUB-ASSY, OIL

main15104-30040i1KDFTV..KDN215200211

main15104-31050i1GRFE..GRN215200508

sub15104-31140

main15104-62080i5VZFE..VZN21#200211

main15104-75061i3RZFE..RZN21#200211-200408

main15104-75120i2TRFE..TRN21#200408-200508

sub15104-75200

sub90126-08052

sub91551-80825

15104ARING, O(FOR OIL STRAINER)

main96722-24030i1GRFE..GRN215200508

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i1KDFTV..KDN215200211

main90126-06029i1GRFE..GRN215200508

main90126-08037i2TRFE..TRN21#200408-200508

15115COVER, OIL PUMP

main15115-31050i1GRFE..GRN215200508

main15115-75020i3RZFE..RZN21#200211-200408

15119GASKET, OIL PUMP COVER

main15119-31050i1GRFE..GRN215200508

15131VALVE, OIL PUMP RELIEF

main15131-24010i3RZFE..RZN21#200211-200408

main15131-46040i2TRFE..TRN21#200211-200908

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KDFTV..KDN215200211-200508

main15132-20020i5VZFE..VZN21#200211

main15132-46020i1GRFE..GRN215200508

main15132-75020i3RZFE..RZN21#200211-200408

main15132-75021i3RZFE..RZN21#200211-200408

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KDFTV..KDN215200211-200508

main15133-24010i5VZFE..VZN21#200211

main15133-28020i1GRFE..GRN215200508

15147GASKET, OIL STRAINER

main15147-46010i1GRFE..GRN215200508

main15147-75020i3RZFE..RZN21#200211-200408

main15147-75030i2TRFE..TRN21#200408-200508

15188GASKET, OIL PUMP

main15188-31050i1GRFE..GRN215200508

15193GASKET, OIL PUMP

main15193-31010i1GRFE..GRN215200508

main15193-67011i1KDFTV..KDN215200211

15413PIPE, OIL PUMP OUTLET

main15413-31020i1GRFE..GRN215200508

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9155180622

main91551-80622

9415180600

main94151-80600

17 parts on this diagram · 5 diagrams in section
