SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1����� & ��������� 0005 1������-� 0006 1�-�����,�������� & ������ ���0007 1�-�����,�������� & ������ ���0008 1��� ���� ������-��� 0009 1��� ���� & ��- 0010 1��� ���� & ��- 0011 1�����-��� ���� 0012 1�-�,��� & ��� ����

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN18#199511

main83420-16040iKDN185,KZN185199511

main83420-20040iRZN18#199511

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14070iKZN185199511-199604

sub83530-28010

main83530-28020iRZN18#,VZN18#199803

main83530-30090iRZN185,VZN185199511-199803

sub83530-60020

main83530-30100iKZN185199511-199604

sub83530-60010

main83530-60010iKDN185,KZN185199604

main83530-60020iRZN18#,VZN18#199803

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iKZN185,RZN185..5F199511-200008

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iKDN185,KZN185,RZN185,VZN185199511

main84222-35120iKDN185,RZN185,VZN185200008-200112

sub84222-35121

main84222-35121iKDN185,RZN185,VZN185200112

main84222-60080iKZN185,RZN185,VZN185199511-199909

sub84222-60081

main84222-60081iKZN185,RZN185,VZN185199909-200008

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35080iKZN185..4FC;KDN185,RZN185,VZN185;KZN185..5F..(SSR,SSRV,SSRX)199511

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35070iKZN185,RZN185,VZN185199511-200008

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-35090iKDN185,KZN185,RZN185,VZN185199511

84222ESWITCH, DIFFERENTIAL LOCK INDICATOR

main84222-35110iRZN185..SSRV,SSRX;KZN185,VZN185..WIB199511-199807

84225ASWITCH, SHIFT POSITION

main84225-35010iKZN185..5F199511-200008

84540SWITCH ASSY, NEUTRAL START

main84540-30270iKZN185,RZN18#,VZN18#..4FC199511-200008

main84540-30320iKDN185,RZN18#,VZN185200008

89491SENSOR, ENGINE OIL LEVEL

main89491-60050iKDN185,KZN185199807

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iKDN185,KZN185199807

8271160570WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60570

9043018008

main90430-18008

9165140830

main91651-40830

9165160614

main91651-60614

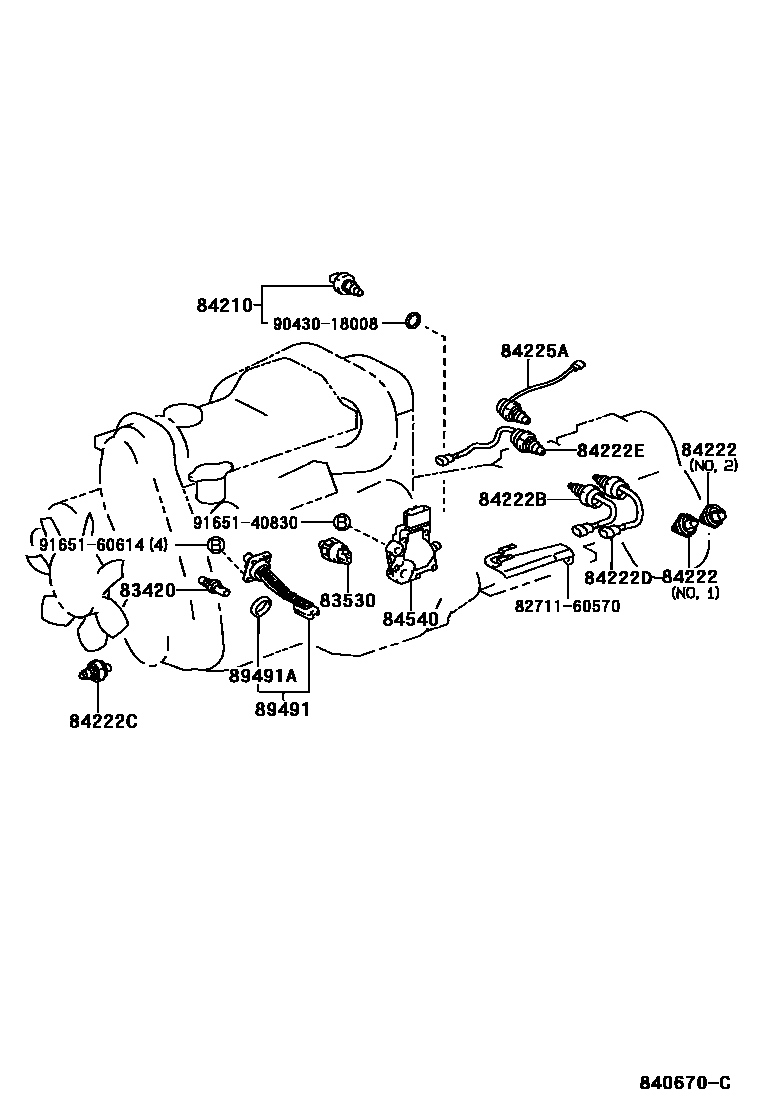

16 parts on this diagram · 12 diagrams in section
