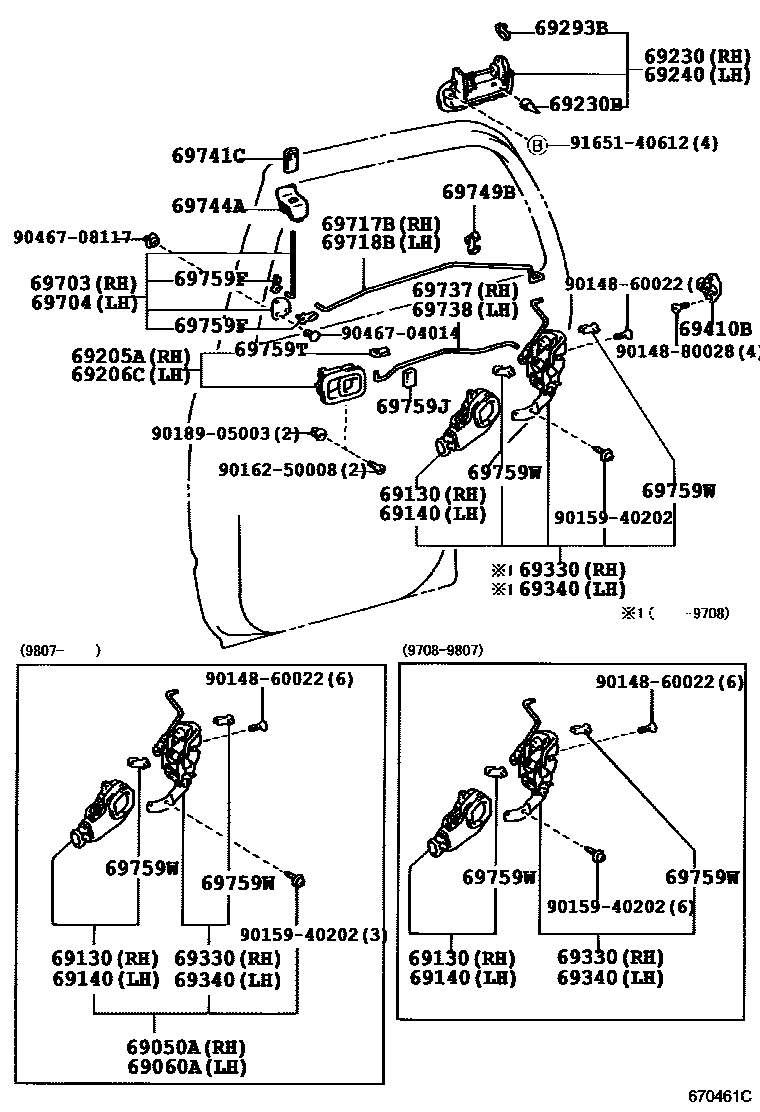

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-35100iKDN185,KZN185,RZN18#,VZN18#199807

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-35100iKDN185,KZN185,RZN18#,VZN18#199807

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-35030iKZN185,RZN185,VZN185199511-199807

main69130-35060iKDN185,KZN185,RZN18#,VZN18#199807

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-35030iKZN185,RZN185,VZN185199511-199807

main69140-35060iKDN185,KZN185,RZN18#,VZN18#199807

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-10070-B1iKZN185,RZN18#,VZN18#199511-200008

MD.MOON MIST,TRIM1#

sub69205-10070

main69205-10070-B3iKDN185,RZN18#,VZN185200008

DK.CHARCOAL,TRIM1#

sub69205-10070

main69205-10070-E0iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199708-199807

OAK,TRIM4#

sub69205-10070

main69205-10070-E2iKZN185,RZN18#,VZN18#..WIB199807-200008

MD.OAK,TRIM4#

sub69205-10070

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-10070-B1iKZN185,RZN18#,VZN18#199511-200008

MD.MOON MIST,TRIM1#

sub69206-10070

main69206-10070-B3iKDN185,RZN18#,VZN185200008

DK.CHARCOAL,TRIM1#

sub69206-10070

main69206-10070-E0iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199708-199807

OAK,TRIM4#

sub69206-10070

main69206-10070-E2iKDN185,RZN18#,VZN185..SSRG,SSRV,SSRX199807-200008

MD.OAK,TRIM4#

sub69206-10070

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-35030-B0iKZN185..TDI199607-199708

DK BROWNISH GRAY MM,1A1

main69230-35030-B1iKZN185,RZN185,VZN185199511-199708

WARM GRAY PEARL ME,1A5

main69230-35030-C1iKZN185,RZN185..WIB..4FC..SSRX199701-199707

main69230-35030-D1iKZN185,RZN185,VZN185199511-199708

RED MM,3K4

main69230-35030-H0iKZN185,RZN185,VZN185199511-199708

DK.TEAL GREEN MC.,751

main69230-35030-J0iKZN185,RZN185,VZN185199511-199708

LT.BLUE M.M.,8L6

main69230-35030-J1iKZN185,RZN185,VZN185199511-199708

DK.BLUE M.M.,8L7

main69230-35030-K0iKZN185,RZN185,VZN185199511-199708

GRAYISH PURPLE M.M.,926

main69230-35060-A0iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main69230-35060-B1iKZN185,RZN185,VZN185199708-199807

WARM GRAY PEARL ME.,1A5

main69230-35060-C1iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main69230-35060-D0iKZN185,RZN185,VZN185199708-199807

RED MM,3K4

main69230-35060-H0iKZN185,RZN185,VZN185199708-199807

DK.TEAL GREEN MC.,751

main69230-35060-J0iKZN185,RZN185,VZN185199708-199807

LT.BLUE M.M.,8L6

main69230-35060-J1iKZN185,RZN185,VZN185199708-199807

DK.BLUE M.M.,8L7

main69230-35060-K0iKZN185,RZN185,VZN185199708-199807

GRAYISH PURPLE ME.,926

main69230-35110-A0iRZN18#,VZN180..SPR,SSR199906-200008

WHITE,K82 ,056

main69230-35110-A0iKZN185,RZN185..4FC..SSRX199807-200008

WHITE,056

main69230-35110-A0iKZN185,RZN185..4FC..SSRX199807-200008

WHITE,K82

main69230-35110-A0iKDN185,RZN185..SSRX200008

WHITE,K72 ,056

main69230-35110-A0iKDN185,RZN185..SSRX200008

WHITE,K72

main69230-35110-A0iKZN185,RZN18#,VZN180..WIB..4FC..(SPR,SSRX)199901

main69230-35110-A0iKDN185,RZN18#,VZN180..SPR,SSRV199807

WHITE,K83

main69230-35110-A1iKZN185,RZN185..WIB..4FC..SSRX199911-200007

main69230-35110-A1iKDN185,RZN185..WIB..SSRX200112

main69230-35110-B1iKZN185,RZN185,VZN185..WIB199807-200008

SILVER ME.,K73

main69230-35110-B1iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199807-200008

SILVER ME.,1C0

main69230-35110-B1iKDN185,KZN185,RZN185..4FC..SSRX199906

SILVER ME.,K73 ,1C0

main69230-35110-B1iKZN185,RZN18#,VZN180..WIB..4FC..(SPR,SSRX)199901

main69230-35110-B2iKDN185,RZN185..SSRX200112

GRAY ME.,KF9 ,1D2

main69230-35110-B2iVZN185;KDN185,RZN18#..SSRG,SSRV200112

GRAY ME.,KF9

main69230-35110-C0iRZN180,VZN180199901-200008

BLACK,202

main69230-35110-C0iRZN180,VZN180199807-200008

BLACK,K86

main69230-35110-C0iKZN185,RZN18#,VZN180..WIB..4FC..(SPR,SSRX)199901

main69230-35110-D0iVZN185;KDN185,RZN18#..SSRG,SSRV200008

RED MM,KG2

main69230-35110-D0iVZN185;KDN185,RZN18#..SSRG,SSRV200008

RED MM,KG3

main69230-35110-D0iKDN185,RZN185..SSRX200008

RED MM,KG2 ,3K4

main69230-35110-D0iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199807-200008

RED MM,3K4

main69230-35110-D0iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199906-200008

RED MM,K88 ,3K4

main69230-35110-D0iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199807-200008

RED MM,K88

main69230-35110-F0iRZN180,VZN180199901-200008

YELLOW,576

main69230-35110-F0iKZN185,RZN18#,VZN180..WIB..4FC..(SPR,SSRX)199901

main69230-35110-F1iKDN185,RZN185..SSRX200008

CHAMPAGNE M.M.,KG4

main69230-35110-F1iKDN185,RZN185..SSRX200008

CHAMPAGNE M.M.,KG4 ,587

main69230-35110-G0iKZN185,RZN185..4FC..SSRX199906-200008

DK. GREEN MC.,K91 ,6Q7

main69230-35110-G0iRZN185..SSR199807-200008

DK. GREEN MC.,6Q7

main69230-35110-G0iRZN185..SSR199807-200008

DK. GREEN MC.,K91

main69230-35110-H0iKDN185,RZN185..SSRX200008

AQUA ME.,KG8

main69230-35110-H0iVZN185;KDN185,RZN18#..SPR,SSRG,SSRV200008

AQUA ME.,KG8 ,768

main69230-35110-J0iKZN185,RZN185..4FC..SSRX199906-200008

DK.BLUE M.M.,K94 ,8L7

main69230-35110-J0iKZN185,RZN185..4FC..SSRX199807-200008

DK.BLUE M.M.,8L7

main69230-35110-J0iRZN185..SSR199807-200008

DK.BLUE M.M.,K94

main69230-35110-J0iKDN185,RZN185..SSRX200008

DK.BLUE M.M.,KG9 ,8L7

main69230-35110-J0iVZN185;KDN185,RZN18#..SSRG,SSRV200008

DK.BLUE M.M.,KG9

main69230-35110-J1iKZN185,RZN185..4FC..SSRX199906-200008

BLUE ME.,K93 ,8N1

main69230-35110-J1iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199807-200008

BLUE ME.,8N1

main69230-35110-J1iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199807-200008

BLUE ME.,K93

main69230-35120-A0iKZN185,RZN185..4FC..SSRV199801-199807

main69230-35120-C0iKZN185,RZN185..4FC..SSRV199801-199807

main69230-35130-B0iKZN185,RZN185..WIB..4FC..SSRX199810

main69230-35130-C0iKZN185,RZN185..WIB..4FC..SSRX199810

main69230-35130-C1iRZN18#..SSRV200104-200111

main69230-35130-C1iRZN18#..SSRV200112-200210

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iKDN185,KZN185,RZN18#,VZN18#199511

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-35030-B0iKZN185..TDI199607-199708

DK BROWNISH GRAY MM,1A1

main69240-35030-B1iKZN185,RZN185,VZN185199511-199708

WARM GRAY PEARL ME,1A5

main69240-35030-C1iKZN185,RZN185..WIB..4FC..SSRX199701-199707

main69240-35030-D1iKZN185,RZN185,VZN185199511-199708

RED MM,3K4

main69240-35030-H0iKZN185,RZN185,VZN185199511-199708

DK.TEAL GREEN MC.,751

main69240-35030-J0iKZN185,RZN185,VZN185199511-199708

LT.BLUE M.M.,8L6

main69240-35030-J1iKZN185,RZN185,VZN185199511-199708

DK.BLUE M.M.,8L7

main69240-35030-K0iKZN185,RZN185,VZN185199511-199708

GRAYISH PURPLE M.M.,926

main69240-35060-A0iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main69240-35060-B1iKZN185,RZN185,VZN185199708-199807

WARM GRAY PEARL ME.,1A5

main69240-35060-C1iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main69240-35060-D0iKZN185,RZN185,VZN185199708-199807

RED MM,3K4

main69240-35060-H0iKZN185,RZN185,VZN185199708-199807

DK.TEAL GREEN MC.,751

main69240-35060-J0iKZN185,RZN185,VZN185199708-199807

LT.BLUE M.M.,8L6

main69240-35060-J1iKZN185,RZN185,VZN185199708-199807

DK.BLUE M.M.,8L7

main69240-35060-K0iKZN185,RZN185,VZN185199708-199807

GRAYISH PURPLE ME.,926

main69240-35110-A0iKZN185,RZN185..4FC..SSRX199906-200008

WHITE,K82 ,056

main69240-35110-A0iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199807-200008

WHITE,056

main69240-35110-A0iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199807-200008

WHITE,K82

main69240-35110-A0iVZN185;KDN185,RZN185..SSRG200008

WHITE,K72

main69240-35110-A0iKZN185,RZN18#,VZN180..WIB..4FC..(SPR,SSRX)199901

main69240-35110-A0iKDN185,RZN18#,VZN180..SPR,SSRV199807

WHITE,K83

main69240-35110-A0iKDN185,RZN185..SSRX200008

WHITE,K72 ,056

main69240-35110-A1iKZN185,RZN185..WIB..4FC..SSRX199911-200007

main69240-35110-A1iKDN185,RZN185..WIB..SSRX200112

main69240-35110-B1iRZN18#,VZN180..SPR,SSR199807-200008

SILVER ME.,1C0

main69240-35110-B1iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199807-200008

SILVER ME.,K73

main69240-35110-B1iKZN185,RZN18#,VZN180..WIB..4FC..(SPR,SSRX)199901

main69240-35110-B1iKDN185,KZN185,RZN185..4FC..SSRX199906

SILVER ME.,K73 ,1C0

main69240-35110-B2iVZN185;KDN185,RZN18#..SSRG,SSRV200112

GRAY ME.,KF9 ,1D2

main69240-35110-B2iKDN185,RZN185..SSRX200112

GRAY ME.,KF9

main69240-35110-C0iRZN180,VZN180199901-200008

BLACK,202

main69240-35110-C0iRZN180,VZN180199807-200008

BLACK,K86

main69240-35110-C0iKZN185,RZN18#,VZN180..WIB..4FC..(SPR,SSRX)199901

main69240-35110-D0iRZN180..SPR200008

RED MM,KG3

main69240-35110-D0iKZN185,RZN185,VZN185..WIB199807-200008

RED MM,K88

main69240-35110-D0iKZN185,RZN185,VZN185..WIB199807-200008

RED MM,3K4

main69240-35110-D0iRZN185..SSR199906-200008

RED MM,K88 ,3K4

main69240-35110-D0iRZN180..SPR200008

RED MM,KG2 ,3K4

main69240-35110-D0iRZN180..SPR200008

RED MM,KG2

main69240-35110-F0iRZN180,VZN180199901-200008

YELLOW,576

main69240-35110-F0iKZN185,RZN18#,VZN180..WIB..4FC..(SPR,SSRX)199901

main69240-35110-F1iVZN185;KDN185,RZN18#..SSRG,SSRV200008

CHAMPAGNE M.M.,KG4 ,587

main69240-35110-F1iVZN185;KDN185,RZN18#..SSRG,SSRV200008

CHAMPAGNE M.M.,KG4

main69240-35110-G0iKZN185,RZN185..4FC..SSRX199807-200008

DK. GREEN MC.,K91

main69240-35110-G0iKZN185,RZN185..4FC..SSRX199906-200008

DK. GREEN MC.,K91 ,6Q7

main69240-35110-G0iKZN185,RZN185..4FC..SSRX199807-200008

DK. GREEN MC.,6Q7

main69240-35110-H0iKDN185,RZN185..SSRX200008

AQUA ME.,KG8 ,768

main69240-35110-H0iKDN185,RZN185..SSRX200008

AQUA ME.,KG8

main69240-35110-J0iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199807-200008

DK.BLUE M.M.,K94

main69240-35110-J0iRZN185..SSR199807-200008

DK.BLUE M.M.,8L7

main69240-35110-J0iRZN185..SSR199906-200008

DK.BLUE M.M.,K94 ,8L7

main69240-35110-J0iKDN185,RZN185..SSRX200008

DK.BLUE M.M.,KG9 ,8L7

main69240-35110-J0iKDN185,RZN185..SSRX200008

DK.BLUE M.M.,KG9

main69240-35110-J1iRZN185..SSR199807-200008

BLUE ME.,8N1

main69240-35110-J1iKZN185,RZN185,VZN185..WIB199807-200008

BLUE ME.,K93

main69240-35110-J1iVZN185;KZN185,RZN185..SSRG;KZN185,RZN185..5F..SSRX199906-200008

BLUE ME.,K93 ,8N1

main69240-35120-A0iKZN185,RZN185..4FC..SSRV199801-199807

main69240-35120-C0iKZN185,RZN185..4FC..SSRV199801-199807

main69240-35130-B0iKZN185,RZN185..WIB..4FC..SSRX199810

main69240-35130-C0iKZN185,RZN185..WIB..4FC..SSRX199810

main69240-35130-C1iRZN18#..SSRV200112-200210

main69240-35130-C1iRZN18#..SSRV200104-200111

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iRZN180..SPR;KZN185,RZN185,VZN18#199511

main69293-12030iKDN185,RZN180..SSRG,SSRV,SSRX200008

main69293-12040iKDN185,RZN180..SSRG,SSRV,SSRX200008

main69293-12040iRZN180..SPR;KZN185,RZN185,VZN18#199511

69330LOCK ASSY, REAR DOOR, RH

main69050-35060iKZN185,RZN185,VZN185199511-199708

main69330-35140iKDN185,KZN185,RZN18#,VZN18#199708

69340LOCK ASSY, REAR DOOR, LH

main69060-35060iKZN185,RZN185,VZN185199511-199708

main69340-35140iKDN185,KZN185,RZN18#,VZN18#199708

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iKDN185,KZN185,RZN18#,VZN18#199511

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-35030iKDN185,KZN185,RZN18#,VZN18#199511

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-35030iKDN185,KZN185,RZN18#,VZN18#199511

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-35040iKDN185,KZN185,RZN18#,VZN18#199511

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-35040iKDN185,KZN185,RZN18#,VZN18#199511

69737LINK, REAR DOOR INSIDE LOCKING, RH

main69737-35020iKDN185,KZN185,RZN18#,VZN18#199511

69738LINK, REAR DOOR INSIDE LOCKING, LH

main69738-35020iKDN185,KZN185,RZN18#,VZN18#199511

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-12040-B1iKZN185,RZN18#,VZN18#199511-200008

MD.MOON MIST,TRIM1#

sub69741-12040

main69741-12040-B6iKDN185,RZN18#,VZN185200008

DK.CHARCOAL,TRIM1#

sub69741-12040

main69741-12040-E0iKDN185,RZN18#,VZN185..SSRG,SSRV,SSRX199708-200008

OAK,TRIM4#

sub69741-12040

69744ACOVER, DOOR LOCK CONTROL KNOB

main69744-35010iKDN185,KZN185,RZN18#,VZN18#199811

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040iKDN185,KZN185,RZN18#,VZN18#199511

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20020iKDN185,KZN185,RZN18#,VZN18#199511

main69759-20030iKDN185,KZN185,RZN18#,VZN18#199511

main69759-24030iKDN185,KZN185,RZN18#,VZN18#199511

main69759-24040iKDN185,KZN185,RZN18#,VZN18#199511

69759JSILENCER, DOOR LOCK LINK

main69759-12060iKDN185,KZN185,RZN18#,VZN18#199604

main69759-35010iKZN185,RZN185,VZN185199511-199604

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-20060iKDN185,RZN180..SSRG,SSRV,SSRX200008

main69759-20060iRZN180..SPR;KZN185,RZN185,VZN18#199511

main69759-20070iKDN185,RZN180..SSRG,SSRV,SSRX200008

main69759-20070iRZN180..SPR;KZN185,RZN185,VZN18#199511

69759WSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20040iKDN185,KZN185,RZN18#,VZN18#199511

main69759-20050iKDN185,KZN185,RZN18#,VZN18#199511

9014860022

main90148-60022

9014880028

main90148-80028

9015940202

main90159-40202

9016250008

main90162-50008

9018905003

main90189-05003

9046704014

main90467-04014

9046708117

main90467-08117

9165140612

main91651-40612

34 parts on this diagram · 1 diagram in section
