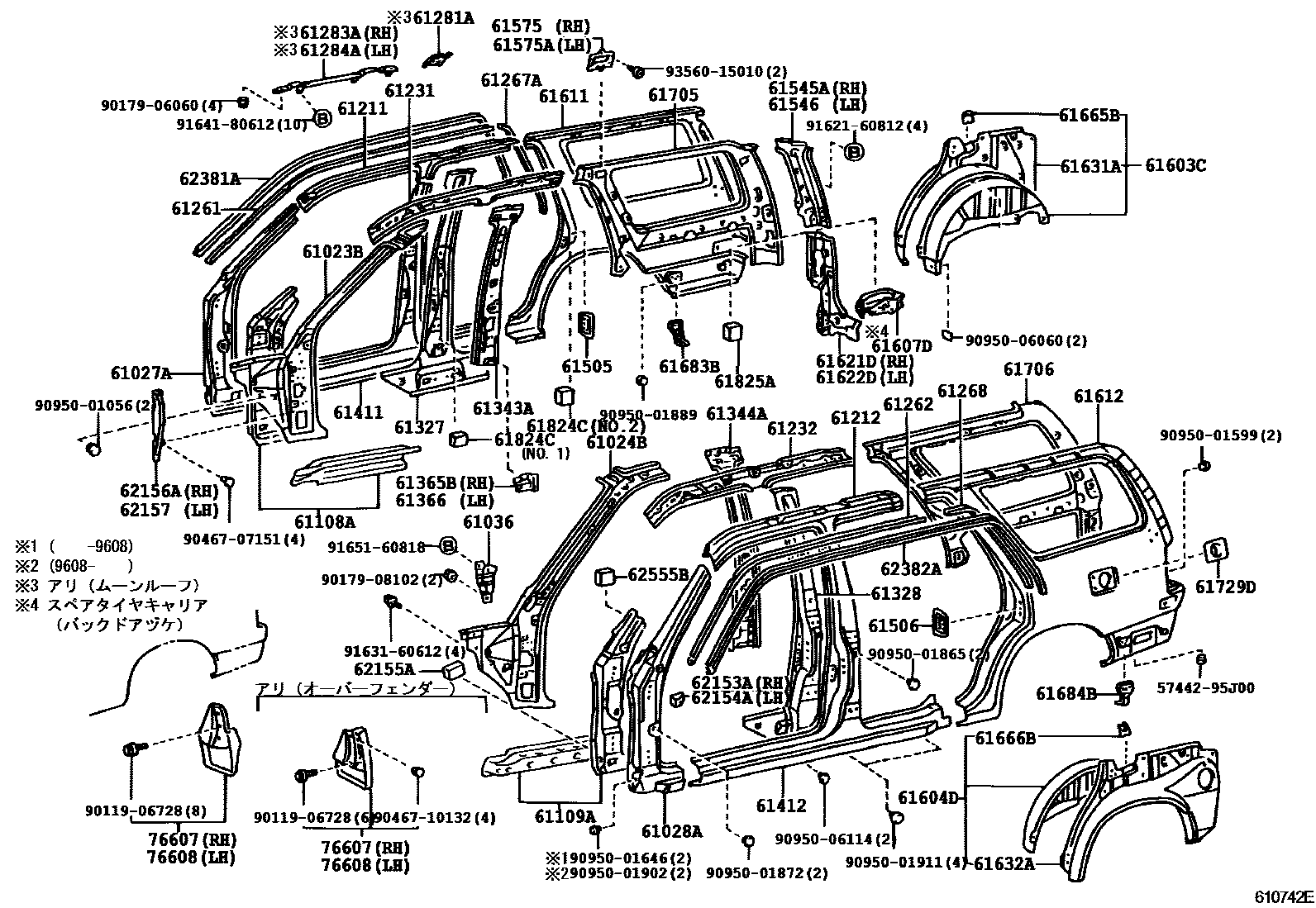

SIDE MEMBER

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-35030iKZN185,RZN185,VZN185199511-199608

main61023-35080iKZN185,RZN185,VZN185199608-199708

main61023-35081iKDN185,KZN185,RZN18#,VZN18#199708

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-35030iKZN185,RZN185,VZN185199511-199608

main61024-35060iKZN185,RZN185,VZN185199608-199708

main61024-35061iKDN185,KZN185,RZN18#,VZN18#199708

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61131-35010iKZN185,RZN185,VZN185..WIB199511-199606

main61131-35011iKZN185,RZN185,VZN185..WIB199606-199807

main61131-35020iKZN185,RZN185..NOB199511-199606

main61131-35021iKDN185,RZN180..SSRV;KDN185,KZN185,RZN185..NOB199606-200211

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61132-35010iKZN185,RZN185,VZN185..WIB199511-199606

main61132-35011iKZN185,RZN185,VZN185..WIB199606-199807

main61132-35020iKZN185,RZN185..NOB199511-199606

main61132-35021iKDN185,RZN180..SSRV;KDN185,KZN185,RZN185..NOB199606-200211

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-35010iKDN185,KZN185,RZN18#,VZN18#199511

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-35010iKZN185,RZN185,VZN185199511-199608

main61108-35020iKDN185,KZN185,RZN18#,VZN18#199608-200102

main61108-35021iKDN185,RZN18#,VZN185200102

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-35010iKZN185,RZN185,VZN185199511-199608

main61109-35020iKDN185,KZN185,RZN18#,VZN18#199608-200102

main61109-35021iKDN185,RZN18#,VZN185200102

61211RAIL, ROOF SIDE, OUTER RH

main61211-35020iKZN185,RZN185,VZN185199511-199708

main61211-35021iKDN185,KZN185,RZN18#,VZN18#199708-200211

61212RAIL, ROOF SIDE, OUTER LH

main61212-35020iKZN185,RZN185,VZN185199511-199708

main61212-35021iKDN185,KZN185,RZN18#,VZN18#199708-200211

61231RAIL, ROOF SIDE, INNER RH

main61231-35100iKZN185,RZN185,VZN185199511-199608

main61231-35110iKZN185,RZN185,VZN185199608-199708

main61231-35111iKDN185,KZN185,RZN18#,VZN18#199708

main61231-35120iKZN185,RZN185,VZN185199608-199708

main61231-35121iKZN185,RZN185,VZN185199708-199807

61232RAIL, ROOF SIDE, INNER LH

main61232-35090iKZN185,RZN185,VZN185199511-199608

main61232-35100iKZN185,RZN185,VZN185199608-199708

main61232-35101iKDN185,KZN185,RZN18#,VZN18#199708

main61232-35110iKZN185,RZN185,VZN185199608-199708

main61232-35111iKZN185,RZN185,VZN185199708-199807

61261CHANNEL, ROOF DRIP, RH

main61261-35020iKDN185,KZN185,RZN18#,VZN18#199511

61262CHANNEL, ROOF DRIP, LH

main61262-35020iKDN185,KZN185,RZN18#,VZN18#199511

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-35010iKDN185,KZN185,RZN18#,VZN18#199511

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-35010iKDN185,KZN185,RZN18#,VZN18#199511

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-35010×2iKZN185,RZN185,VZN185199511-199807

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-35010iKZN185,RZN185,VZN185199511-199807

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-35010iKZN185,RZN185,VZN185199511-199807

61327REINFORCEMENT, CENTER BODY PILLAR, OUTER RH

main61307-35900iKZN185,RZN185,VZN185199511-199608

main61307-35901iKZN185,RZN185,VZN185199608-199803

main61307-35902iKDN185,KZN185,RZN18#,VZN18#199807

main61307-35903iKZN185,RZN185,VZN185199803-199807

61328REINFORCEMENT, CENTER BODY PILLAR, OUTER LH

main61308-35900iKZN185,RZN185,VZN185199511-199608

main61308-35901iKZN185,RZN185,VZN185199608-199803

main61308-35902iKDN185,KZN185,RZN18#,VZN18#199807

main61308-35903iKZN185,RZN185,VZN185199803-199807

61343APILLAR, CENTER BODY, INNER RH

main61343-35010iKDN185,KZN185,RZN18#,VZN18#199511

61344APILLAR, CENTER BODY, INNER LH

main61344-35010iKDN185,KZN185,RZN18#,VZN18#199511

61365BREINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH

main61365-35020iKDN185,KZN185,RZN18#,VZN18#199807

61366REINFORCE, BELT ANCHOR TO CENTER PILLER, NO.3 LH

main61366-35020iKDN185,KZN185,RZN18#,VZN18#199807

61411PANEL, ROCKER, OUTER RH

main61411-35050iKZN185,RZN185,VZN185..WIB199511-199608

main61411-35051iKZN185,RZN185,VZN185..WIB199608-199807

main61411-35060iKZN185,RZN185..NOB199511-199608

main61411-35061iRZN185..SSRV200008-200211

61412PANEL, ROCKER, OUTER LH

main61412-35050iKZN185,RZN185,VZN185..WIB199511-199608

main61412-35051iKZN185,RZN185,VZN185..WIB199608-199807

main61412-35060iKZN185,RZN185..NOB199511-199608

main61412-35061iRZN185..SSRV200008-200211

61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

main61505-89101iKDN185,KZN185,RZN18#,VZN18#199511

61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

main61505-89101iKDN185,KZN185,RZN18#,VZN18#199511

61545APANEL SUB-ASSY, CAB REAR PILLAR, INNER RH

main61545-35900iKDN185,KZN185,RZN18#,VZN18#199511

main61545-35902iKDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)199511

61546PANEL SUB-ASSY, CAB REAR PILLAR, INNER LH

main61546-35900iKDN185,KZN185,RZN18#,VZN18#199511

61575PLATE, CAB REAR PILLAR, UPPER LH

main61575-35010iKDN185,KZN185,RZN18#,VZN18#199511

61575APLATE, CAB REAR PILLAR, UPPER LH

main61575-35010iKDN185,KZN185,RZN18#,VZN18#199511

61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH

main61603-35010iKZN185,RZN185,VZN185199511-199807

main61603-35020iKDN185,KZN185,RZN18#,VZN18#199807

61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH

main61604-35010iKDN185,KZN185,RZN18#,VZN18#199511

61607DRETAINER SUB-ASSY, SPARE WHEEL CARRIER HINGE

main61607-35030iKDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)199511

61611PANEL, QUARTER, RH

main61611-35901iKDN185,KZN185,RZN185..NOB199511-200211

main61611-35903iKZN185,RZN185,VZN185..WIB..(SSRV,SSRX); KZN185,VZN185..SSRG199511-199807

main61611-35904iKZN185,RZN185,VZN185..WIB..(SSRG,SSRX)199807-200211

main61611-35905iKZN185,RZN185..NOB..SSRX199901

main61611-35906iKDN185,RZN18#..SSRV200008-200211

main61611-35907iKDN185,RZN18#..SSRV200008-200211

61612PANEL, QUARTER, LH

main61612-35901iKDN185,KZN185,RZN185..NOB199511-200211

main61612-35903iKZN185,RZN185,VZN185..WIB199511-199807

main61612-35904iKZN185,RZN185..NOB..SSRX199901

main61612-35905iKDN185,RZN18#..SSRV200008-200211

61621DTROUGH, BACK DOOR OPENING, RH

main61621-35900iKDN185,RZN18#,VZN180;KZN185,VZN185..SSR,SSRV,SSRX; KZN185,VZN185..SSRG199511

main61621-35901iKDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)199511

61622DTROUGH, BACK DOOR OPENING, LH

main61622-35900iKDN185,KZN185,RZN18#,VZN18#199511

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-35010iKZN185,RZN185,VZN185199511-199807

main61631-35020iKDN185,KZN185,RZN18#,VZN18#199807

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-35010iKDN185,KZN185,RZN18#,VZN18#199511

61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

main61665-35020iKDN185,KZN185,RZN18#,VZN18#199511

61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH

main61666-35010iKDN185,KZN185,RZN18#,VZN18#199511

61683BBRACKET, REAR WHEEL OPENING, NO.1 RH

main61683-35010iKDN185,KZN185,RZN18#,VZN18#199511

61684BBRACKET, REAR WHEEL OPENING, NO.1 LH

main61684-35010iKDN185,KZN185,RZN18#,VZN18#199511

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61701-35900iKDN185,KZN185,RZN18#,VZN18#199511

main61701-35902iKDN185,KZN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)199511

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61702-35900iKDN185,KZN185,RZN18#,VZN18#199511

61729DPLATE, FUEL INLET BOX

main61729-35020iKDN185,KZN185,RZN18#,VZN18#199511

61824CPAD, NOISE SHUTTER, NO.1

main61824-30070×2iKDN185,KZN185,RZN18#,VZN18#199701

main61824-60010×2iKDN185,KZN185,RZN18#,VZN18#199807

61825APLATE, NOISE CONTROL, NO.2

main61825-34010×4iKZN185,RZN185,VZN185199511-199701

62153APAD, COWL SIDE SILENCER, UPPER RH

main62153-35010iKDN185,KZN185,RZN18#,VZN18#199511

62154APAD, COWL SIDE SILENCER, UPPER LH

main62154-35010iKDN185,KZN185,RZN18#,VZN18#199511

62155APAD, COWL SIDE LOWER SILENCER

main62155-89101×2iKDN185,KZN185,RZN18#,VZN18#199511

62156AINSULATOR, COWL SIDE, RH

main62156-35010iKZN185,RZN185,VZN185199511-199609

main62156-35020iKDN185,KZN185,RZN18#,VZN18#199609

62157INSULATOR, COWL SIDE, LH

main62157-35010iKZN185,RZN185,VZN185199511-199609

main62157-35020iKDN185,KZN185,RZN18#,VZN18#199609

62381AWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-35010iKZN185,RZN185,VZN185199511-199607

main62381-35011iKDN185,KZN185,RZN18#,VZN18#199607

62382AWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-35010iKZN185,RZN185,VZN185199511-199607

main62382-35011iKDN185,KZN185,RZN18#,VZN18#199607

62555BPAD, PILLAR, NO.5

main62555-89101×2iKDN185,KZN185,RZN18#,VZN18#199511

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-39475iKDN185,KZN185,RZN185..NOB199511

main76625-39495iKZN185,RZN185,VZN185..WIB199511-199708

main76625-39505-B0iKZN185,RZN185,VZN185..WIB199511-199708

WARM GRAY PEARL ME,1A5

main76625-39505-D0iKZN185,RZN185,VZN185..WIB199511-199708

RED MM,3K4

main76625-39545iKZN185,RZN185,VZN185..WIB199708-199807

main76625-39555iKZN185,RZN185..4FC..SSRV199801-199807

main76625-39565-B0iKZN185,RZN185,VZN185..WIB199708-199807

WARM GRAY PEARL ME,1A5

main76625-39575-A0iKDN185,RZN185..WIB..SSRX200112

main76625-39575-A1iKDN185,RZN18#..SSRV200008

WHITE,K83

main76625-39575-B0iKZN185,RZN185..WIB..4FC..SSRX199906-200008

LT.GREIGE ME.,3K4 ,8L7

main76625-39575-B1iKZN185,RZN185,VZN185..WIB199807-199906

SILVER ME.,K73

main76625-39575-B2iKZN185,RZN185,VZN185..WIB199807-200008

BL.SILVER ME.,K82 ,K88 ,K91 ,K93 ,K94

main76625-39575-B4iKDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)200112

GRAY ME,KF9 ,KG2 ,KG9

main76625-39575-E0iRZN18#..SSRV200112-200210

main76625-39575-F0iKDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)200008

CHAMPAGNE M.M.,KG4

main76625-39575-G0iKZN185,RZN185..WIB..4FC..SSRX199906-200008

DK.GREEN MC.,6Q7

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-39475iKDN185,KZN185,RZN185..NOB199511

main76626-39495iKZN185,RZN185..WIB..4FC..SSRX199701-199707

main76626-39505-B0iKZN185,RZN185,VZN185..WIB199511-199708

WARM GRAY PEARL ME,1A5

main76626-39505-D0iKZN185,RZN185,VZN185..WIB199511-199708

RED MM,3K4

main76626-39545iKZN185,RZN185,VZN185..WIB199708-199807

main76626-39555iKZN185,RZN185..4FC..SSRV199801-199807

main76626-39565-B0iKZN185,RZN185,VZN185..WIB199708-199807

WARM GRAY PEARL ME,1A5

main76626-39575-A0iKZN185,RZN185..WIB..4FC..SSRX199911-200007

main76626-39575-A1iKDN185,RZN18#..SSRV200008

WHITE,K83

main76626-39575-B0iKZN185,RZN185..WIB..4FC..SSRX199906-200008

LT.GREIGE ME.,3K4 ,8L7

main76626-39575-B1iKDN185,RZN18#..SSRV; KDN185,RZN185,VZN185..WIB..(SSRG,SSRX)200008

SILVER ME.,KG8 ,K72 ,K73; SILVER ME.,KG8 ,K73

main76626-39575-B2iKZN185,RZN185,VZN185..WIB199807-200008

BL.SILVER ME.,K82 ,K88 ,K91 ,K93 ,K94

main76626-39575-B4iKDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)200008-200112

GRAY ME,KG2 ,KG9

main76626-39575-E0iRZN18#..SSRV200104-200111

main76626-39575-F0iKDN185,RZN18#,VZN185..WIB..(SSRG,SSRV,SSRX)200008

CHAMPAGNE M.M.,KG4

main76626-39575-G0iKZN185,RZN185..WIB..4FC..SSRX199906-200008

DK.GREEN MC.,6Q7

5744295J00PLUG, STEP PANEL HOLE

main57442-95J00

9011906728

main90119-06728

9017906060

main90179-06060

9017908102

main90179-08102

9046707151

main90467-07151

9046710132

main90467-10132

9095001056

main90950-01056

9095001599

main90950-01599

9095001646

main90950-01646

9095001865

main90950-01865

9095001872

main90950-01872

9095001889

main90950-01889

9095001902

main90950-01902

9095001911

main90950-01911

9095006060

main90950-06060

9095006114

main90950-06114

9162160812

main91621-60812

9163160612

main91631-60612

9164180612

main91641-80612

9165160818

main91651-60818

9356015010

main93560-15010

81 parts on this diagram · 1 diagram in section
