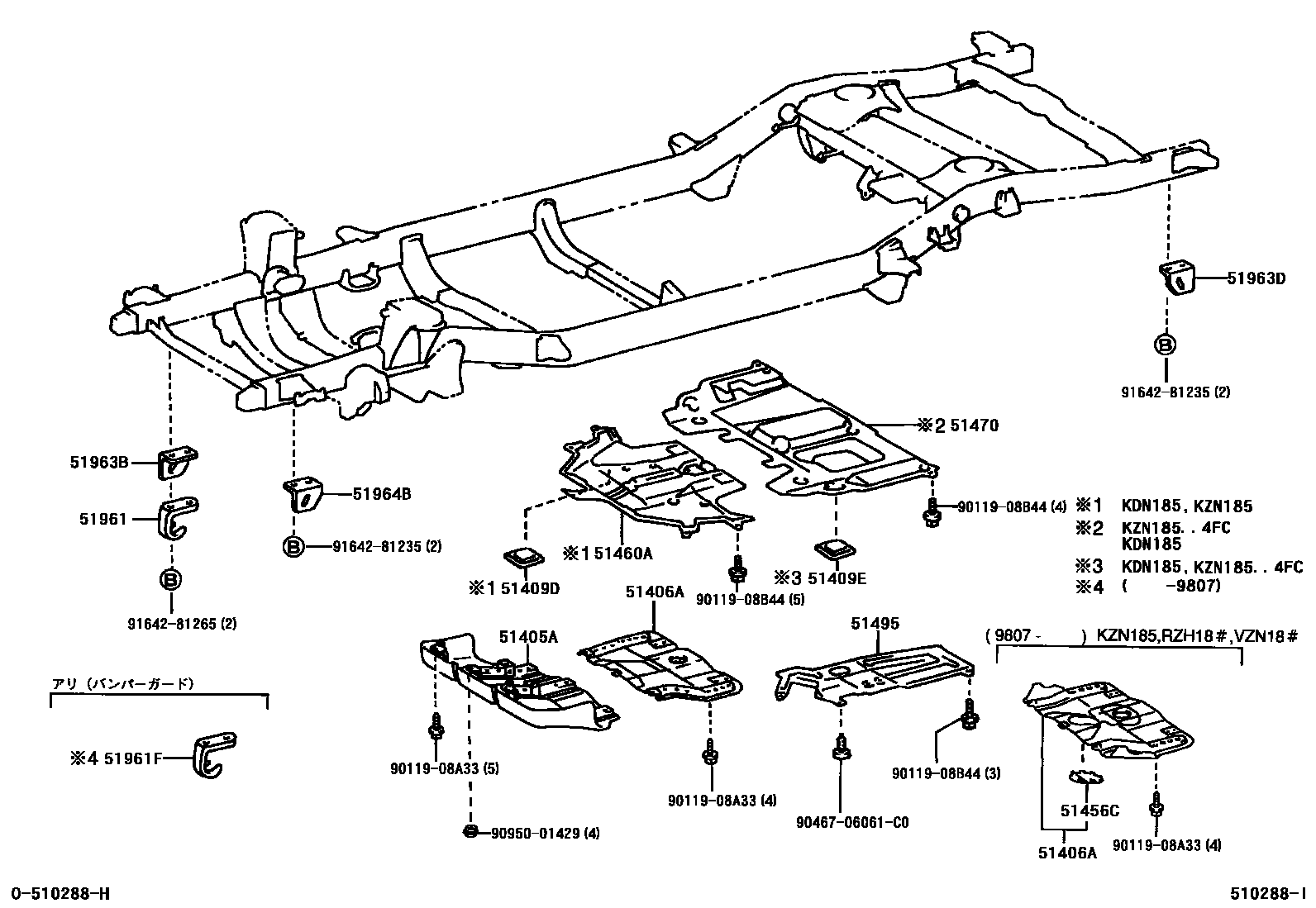

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35070iKZN185,RZN185,VZN185199511-199807

main51405-35071iKDN185200008

main51440-60062iKZN185,RZN18#,VZN18#199807-200008

main51440-60063iRZN18#,VZN185200008

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51406-35010iKDN185200008

main51450-60042iKZN185,RZN18#,VZN18#199807

51409DSEAL SUB-ASSY, TRANSMISSION UNDER

main51409-35010iKDN185,KZN185199807

51409ESEAL SUB-ASSY, TRANSMISSION UNDER, NO.2

main51409-35010iKDN185,KZN185..4FC199807-200211

51456CSEAL, ENGINE UNDER COVER, NO.2

main51456-60051iKZN185,RZN18#,VZN18#199807

51460ACOVER ASSY, TRANSMISSION UNDER, RH

main51460-60011iKDN185,KZN185199807

51470COVER ASSY, TRANSMISSION UNDER

main51470-60011iKZN185..4FC199807-200008

main51496-60171iKDN185200008

51495COVER, TRANSMISSION UNDER

main51495-35010iKZN185,RZN185,VZN185..4FC199708-199807

51961HOOK, NO.1

main51961-35050iKZN185,RZN185,VZN185199511-199709

main51961-35051iKDN185,KZN185,RZN18#,VZN18#199709

51961FHOOK, FRONT

main51961-35050iKZN185,RZN185,VZN185199511-199709

main51961-35051iKZN185..TDI199709-199807

51963BHOOK, TRANSPORT, FRONT RH

main51963-35070iKDN185,KZN185,RZN18#,VZN18#199511

51963DHOOK, TRANSPORT, REAR LH

main51964-35060iKDN185,KZN185,RZN18#,VZN18#199511

51964BHOOK, TRANSPORT, FRONT LH

main51964-35050iKDN185,KZN185,RZN18#,VZN18#199511

9011908A33

main90119-08A33

9011908B44

main90119-08B44

9046706061C0

main90467-06061C0

9095001429

main90950-01429

9164281235

main91642-81235

9164281265

main91642-81265

19 parts on this diagram · 1 diagram in section
