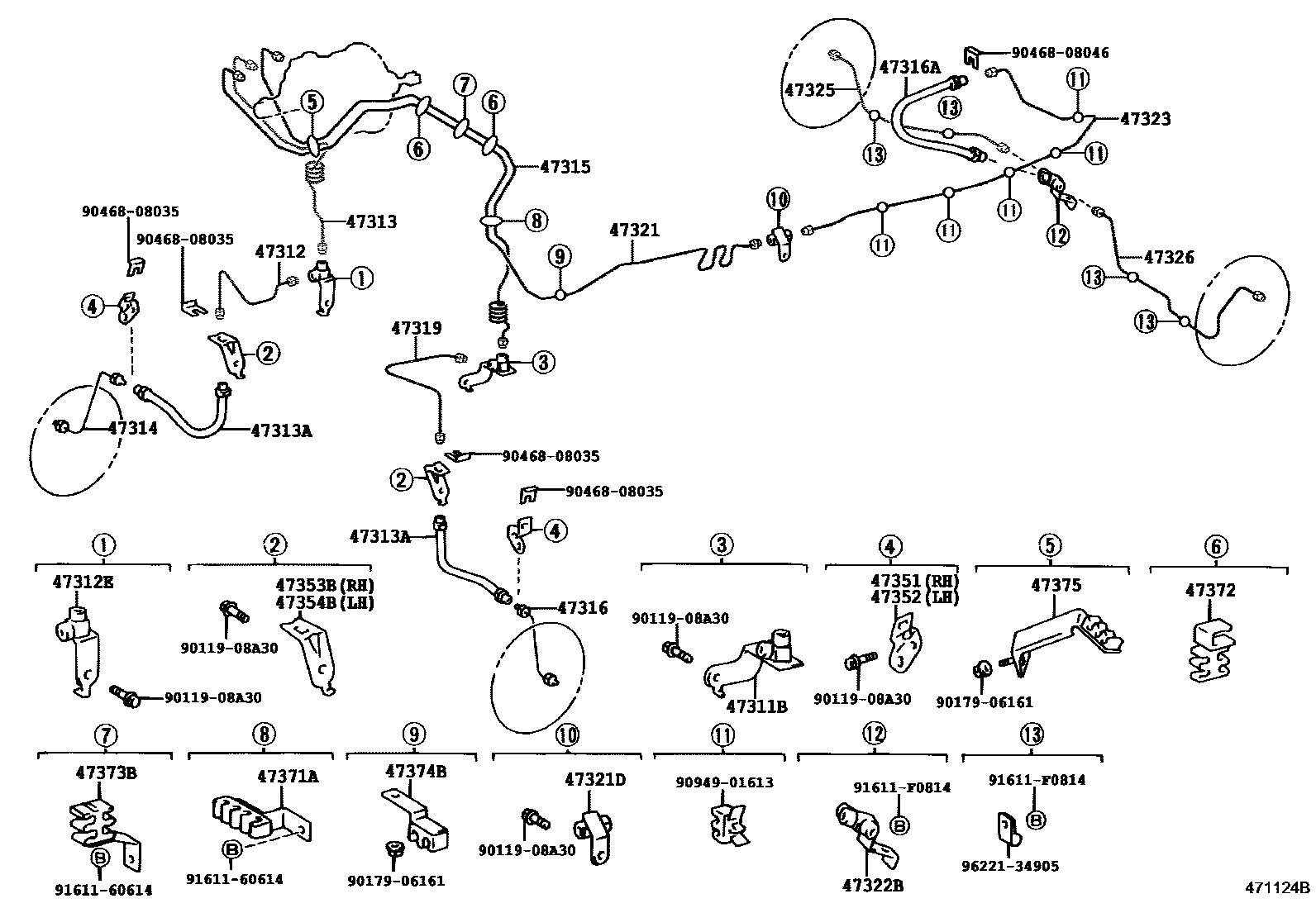

BRAKE TUBE & CLAMP

0001 1 0002 1��(ABS) 0003 1��(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-35490iKDN185,KZN185,RZN18#,VZN18#199511

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90904-12040iKDN185,KZN185,RZN18#,VZN18#199511

47312TUBE, FRONT BRAKE, NO.2

main47313-3D050iKDN185,KZN185,RZN18#,VZN18#199511

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12041iKDN185,KZN185,RZN18#,VZN18#199511

47313TUBE, FRONT BRAKE, NO.3

main47313-3D020iKZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)199511-200201

main47313-3D021iKDN185,RZN18#,VZN185200201

main47313-3D030iKZN185,RZN185..SSR,SSRV,SSRX199511-199708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02862iKZN185,RZN18#,VZN18#199511-200008

main90947-02B14iKDN185,RZN18#,VZN185200008

47314TUBE, FRONT BRAKE, NO.4

main47314-35330iKDN185,KZN185,RZN18#,VZN18#199511

47315TUBE, FRONT BRAKE, NO.5

main47315-35280iKZN185,RZN18#,VZN18#199511-199906

main47315-35290iKZN185,RZN185..SSR,SSRV,SSRX199511-199708

main47315-60412iKDN185,KZN185,RZN18#,VZN18#199906-200211

47316TUBE, FRONT BRAKE, NO.6

main47316-35250iKDN185,KZN185,RZN18#,VZN18#199511

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02869iKZN185,RZN18#,VZN18#199511-200008

main90947-02C59iKDN185,RZN18#,VZN185200008

47319TUBE, FRONT BRAKE, NO.9

main47315-35320iKDN185,KZN185,RZN18#,VZN18#199511

47321TUBE, REAR BRAKE, NO.1

main47321-35760iKZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)199511

main47321-35770iKZN185,RZN185..SSR,SSRV,SSRX199511-199708

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10165iKDN185,KZN185,RZN18#,VZN18#199511

47322TUBE, REAR BRAKE, NO.2

main47322-35720iKDN185,KZN185,RZN18#,VZN18#199511

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10263iKZN185,RZN18#,VZN18#199511-200008

main90413-10295iKDN185,RZN18#,VZN185200008

47323TUBE, REAR BRAKE, NO.3

main47323-35170iKZN185,RZN18#,VZN18#199511-200008

main47323-35220iKDN185,RZN18#,VZN185200008

main47323-60641iKZN185,RZN18#,VZN18#199906-200008

47325TUBE, REAR BRAKE, NO.5

main47325-35270iKZN185,RZN18#,VZN18#199511-199906

main47325-35272iKZN185,RZN18#,VZN18#199906-200008

main47325-35340iKDN185,RZN18#,VZN185200008

47326TUBE, REAR BRAKE, NO.6

main47326-35050iKZN185,RZN18#,VZN18#199511-199906

main47326-35052iKZN185,RZN18#,VZN18#199906-200008

main47326-35090iKDN185,RZN18#,VZN185200008

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-35270iKDN185,KZN185,RZN18#,VZN18#199511

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-35310iKDN185,KZN185,RZN18#,VZN18#199511

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-35110iKDN185,KZN185,RZN18#,VZN18#199511

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-35100iKDN185,KZN185,RZN18#,VZN18#199511

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35300iKZN185,RZN185,VZN185199511-199907

main47371-60140iKDN185,KZN185,RZN18#,VZN18#199907

47372CLAMP, BRAKE TUBE, NO.2

main47372-35150iKZN185,RZN185,VZN185199511-199807

47373BCLAMP, BRAKE TUBE, NO.3

main47373-35060iKZN185,RZN185..SSR,SSRV,SSRX199511-199708

main47373-35090iKZN185..SSRX..TDI;KZN185,RZN185..SSRG;KDN185,RZN180,VZN18#199511

47374BCLAMP, BRAKE TUBE, NO.4

main47374-35030iKZN185,RZN185,VZN185199511-199807

47375CLAMP, BRAKE TUBE, NO.5

main47375-35170iKZN185,RZN185,VZN185199511-199906

main47375-60010iKDN185,KZN185,RZN18#,VZN18#199906

9011908A30

main90119-08A30

9017906161

main90179-06161

9046808035

main90468-08035

9046808046

main90468-08046

9094901613

main90949-01613

9161160614

main91611-60614

91611F0814

main91611-F0814

9622134905

main96221-34905

35 parts on this diagram · 3 diagrams in section
