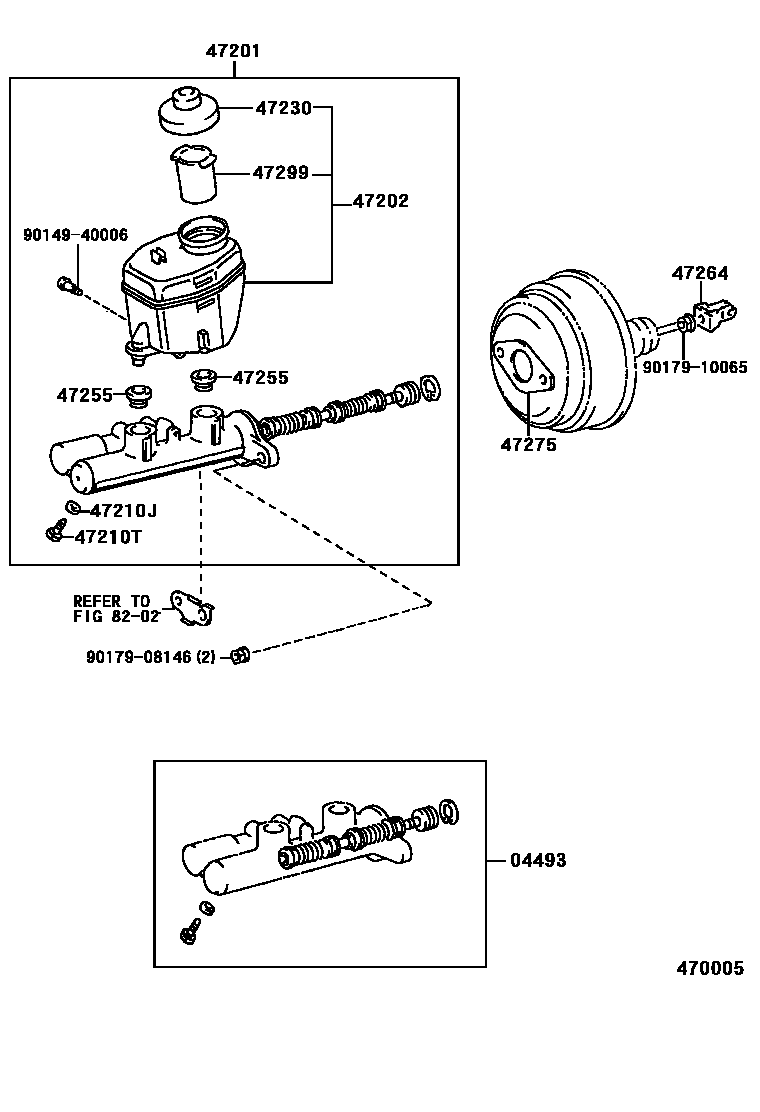

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-14160iKDN185,RZN18#,VZN185200008

main04493-30230iKZN185,RZN185,VZN185199511-199708

main04493-30232iKZN185,RZN18#,VZN18#199708-200008

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-3D360iKDN185,KZN185,RZN18#,VZN18#199511

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-35010iKDN185,KZN185,RZN18#,VZN18#199511

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iKZN185..5F..TDE;RZN185..SSR,SSRV,SSRX;KZN185..NOB..SSRX..TDE;KZN185,VZN185..WIB..4FC199705

main90430-06104iKZN185199708-199807

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKDN185,KZN185,RZN18#,VZN18#199511

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iKDN185,KZN185,RZN18#,VZN18#199511

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iKDN185,KZN185,RZN18#,VZN18#199511

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-28010iKDN185,KZN185,RZN18#,VZN18#199807

main47264-50010iKZN185,RZN185,VZN185199511-199807

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iKDN185,KZN185,RZN18#,VZN18#199511

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iKDN185,KZN185,RZN18#,VZN18#199511

8202WIRING & CLAMP

→ Go to FIG 82-02

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 1 diagram in section
