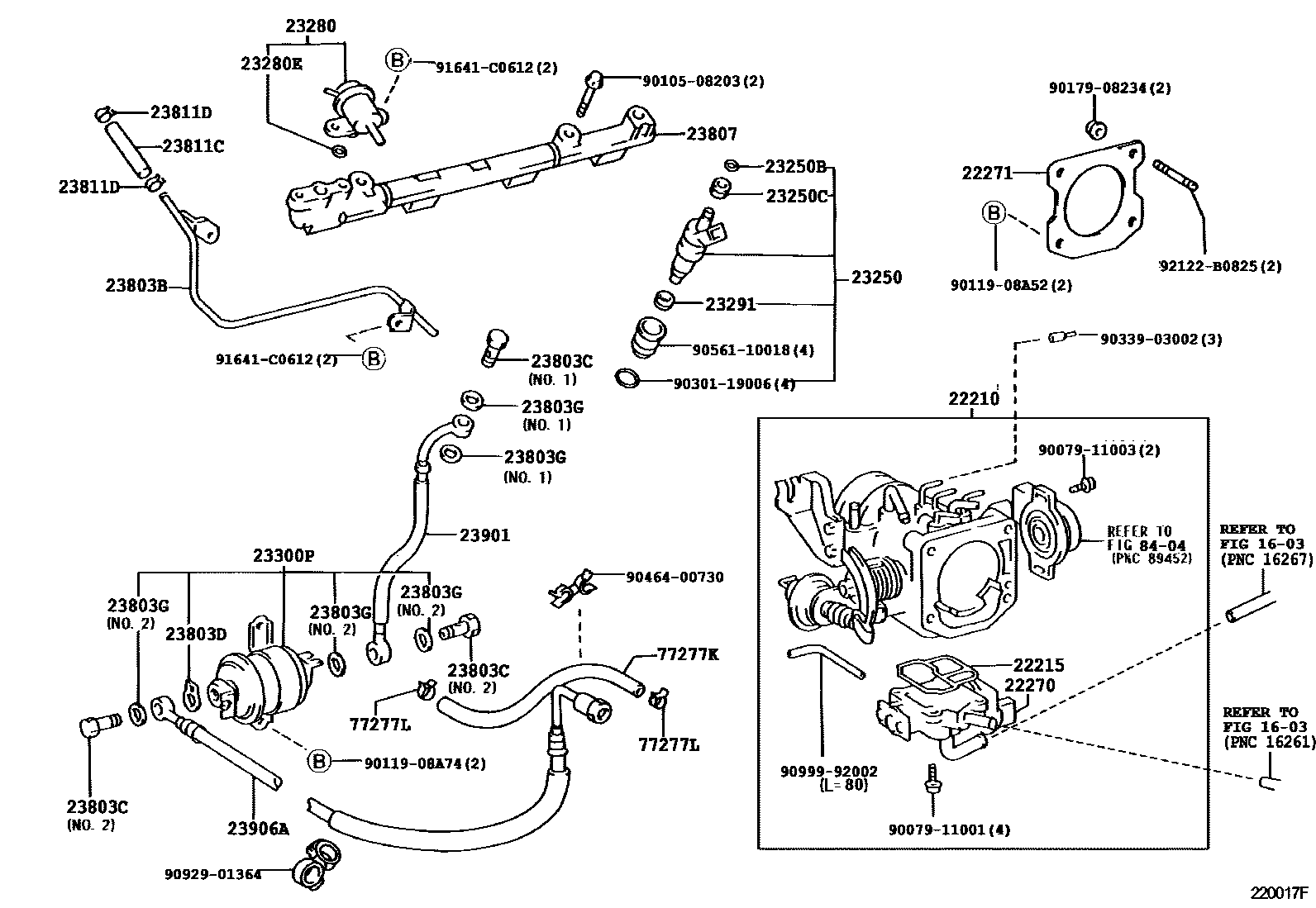

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22210BODY ASSY, THROTTLE

main22210-62230i5VZFE..VZN18#199511

main22210-75130i3RZFE..RZN185..5F199511-200008

main22210-75180i3RZFE..RZN18#..4FC199511-200008

main22210-75240i3RZFE..RZN18#200008

22215GASKET, THROTTLE BODY COVER

main22215-62180i5VZFE..VZN18#199511

main22215-75050i3RZFE..RZN18#199511-200008

main22215-7A680i3RZFE..RZN18#200008

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-62050i5VZFE..VZN18#199511

main22270-75030i3RZFE..RZN18#..4FC199511-200008

main22270-75040i3RZFE..RZN185..5F199511-200008

main22270-75050i3RZFE..RZN18#200008

22271GASKET, THROTTLE BODY

main22271-62040i5VZFE..VZN18#199511

main22271-75020i3RZFE..RZN18#199511

23250INJECTOR ASSY, FUEL

main23209-62030i5VZFE..VZN18#199511-200008

main23209-62040i5VZFE..VZN185200008

main23209-79095i3RZFE..RZN18#199511-200008

main23209-79135i3RZFE..RZN18#200008

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i3RZFE..RZN18#199511-199812

main90301-07024i3RZFE..RZN18#199812

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i3RZFE..RZN18#199511-200008

23280REGULATOR ASSY, FUEL PRESSURE

main23280-62030i5VZFE..VZN18#199511

main23280-75020i3RZFE..RZN18#199511

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i5VZFE..VZN18#199511-199812

main90301-07024i3RZFE..RZN18#199812

23291INSULATOR, INJECTOR VIBRATION

main23291-20010i5VZFE..VZN185200008

main23291-62010i5VZFE..VZN18#199511-200008

main23291-73010i3RZFE..RZN18#199511

23300PFILTER, FUEL(FOR EFI)

main23300-62030i5VZFE..VZN18#199511

main23300-79446i3RZFE..RZN18#199511

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-62010i5VZFE..VZN18#199511

main23803-75020i3RZFE..RZN18#199511

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-12033i3RZFE..RZN18#199905

main90401-12097i3RZFE..RZN18#199511-199905

main90401-12097i3RZFE..RZN18#199905

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-12017i3RZFE..RZN18#199511-199905

main90430-12026i5VZFE..VZN18#199511

23803GGASKET(FOR FUEL HOSE)

main23279-74010i3RZFE..RZN18#199905

main90430-12026i3RZFE..RZN18#199511-199905

main90430-12026i3RZFE..RZN18#199905

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-75020i3RZFE..RZN185199511-199708

main23807-75021i3RZFE..RZN18#199708

23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)

main23273-62010i5VZFE..VZN185199511-199608

main90445-12290i3RZFE..RZN18#200008

main95333-06020i5VZFE..VZN18#199608-200008

main95333-06020i5VZFE..VZN185200008

main95334-06012i3RZFE..RZN18#199511-200008

23811DCLIP, HOSE(FOR FUEL HOSE)

main90467-11065i5VZFE..VZN18#199511

main96135-41100i3RZFE..RZN18#199511

23901TUBE SUB-ASSY, FUEL

main23901-75030i3RZFE..RZN185199511-199708

main23901-75031i3RZFE..RZN18#199708-199905

main23901-75050i3RZFE..RZN18#199905

23906AHOSE SUB-ASSY, FUEL

main23906-75040i3RZFE..RZN18#199511

77277KHOSE, FUEL(FOR RETURN HOSE)

main23273-62030iVZN18#199511

main23273-75040iRZN18#199511-200112

main23273-75050iRZN18#200112

77277LCLIP, HOSE(FOR RETURN HOSE)

main96135-41100iRZN18#199511

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007911001

main90079-11001

9007911003

main90079-11003

9010508203

main90105-08203

9011908A52

main90119-08A52

9011908A74

main90119-08A74

9017908234

main90179-08234

9030119006

main90301-19006

9033903002

main90339-03002

9046400730

main90464-00730

9056110018

main90561-10018

9092901364

main90929-01364

9099992002

main90999-92002

91641C0612

main91641-C0612

92122B0825

main92122-B0825

38 parts on this diagram · 4 diagrams in section
